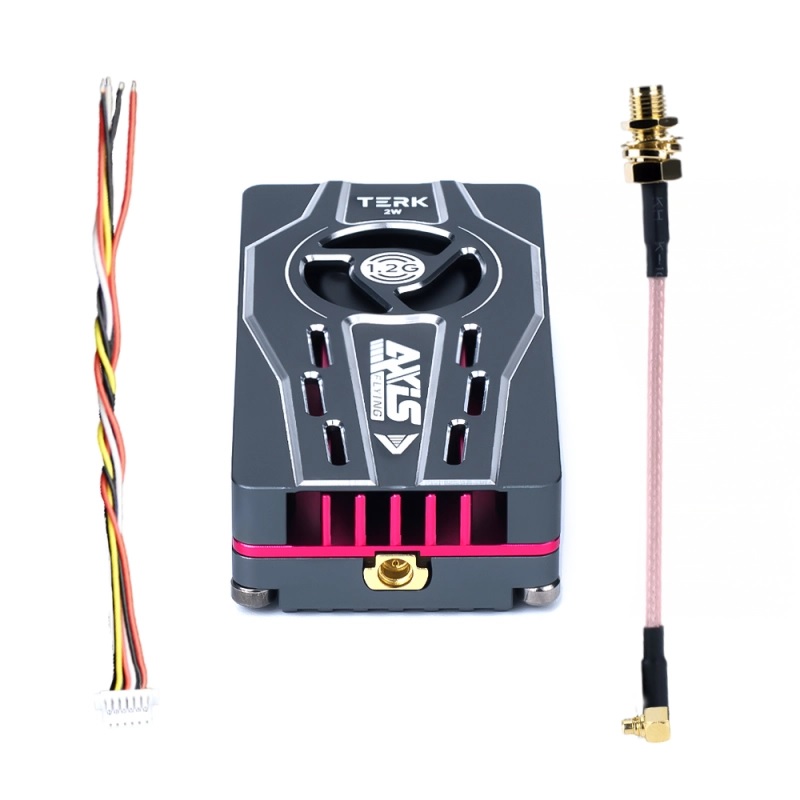

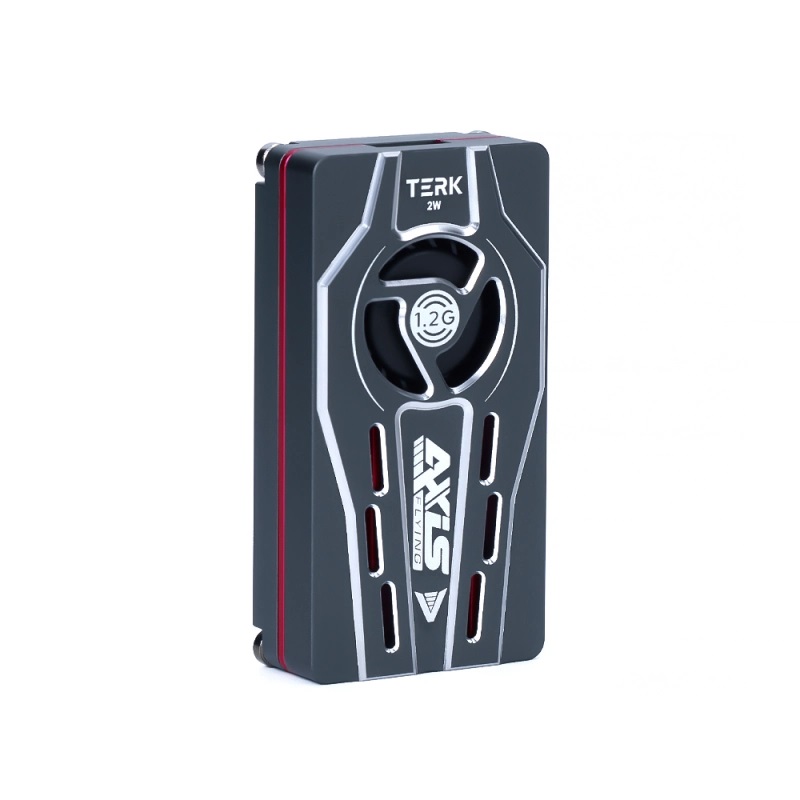

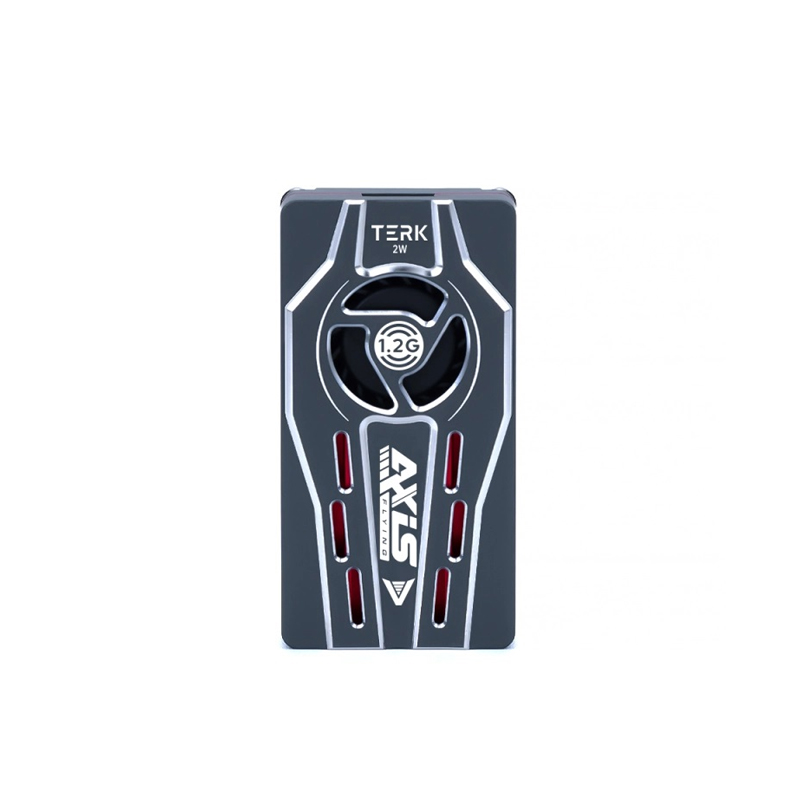

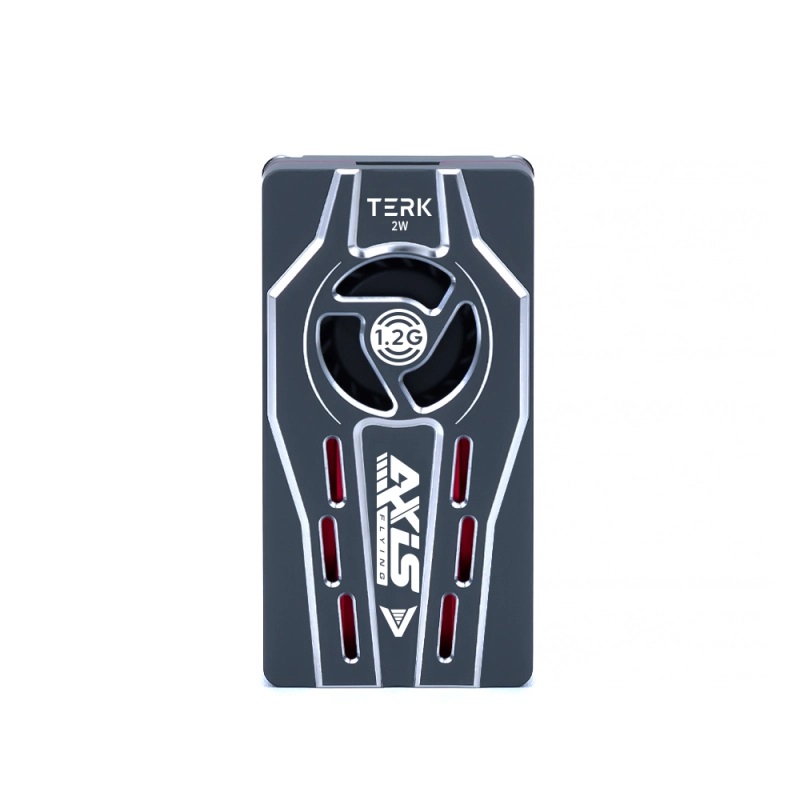

AxisFlying 1.2G 2W Analog VTX - SMA/RP-SMA
The AxisFlying 1.2G 2W Analog VTX is a high-power video transmitter operating on the 1.2 GHz band, designed for long-range FPV drone applications requiring stable video feed in environments with high 5.8 GHz interference. It features a wide 7-28V DC input range for compatibility with various LiPo configurations.
Features
- High-Power 2W (2000mW) output on the 1.2 GHz frequency band for extended range and penetration.
- Wide input voltage range of 7-28V DC, compatible with 2S to 6S LiPo battery systems.
- Built-in heat sink and thermal management for sustained operation during prolonged flights.
- Supports standard NTSC/PAL video formats with an SMA or RP-SMA antenna connector.
- Compact and lightweight design for easy integration into a variety of FPV drone frames.
Out of stock
The AxisFlying 1.2G 2W Analog Video Transmitter is engineered for FPV pilots who prioritize reliable, long-distance video links. Its operation on the less congested 1.2 GHz band provides a significant advantage in areas where the popular 5.8 GHz spectrum suffers from multipath interference or signal absorption, such as dense foliage or urban canyons. The robust 2-watt RF amplifier ensures a strong, clear video signal for exploration and mapping missions.
Constructed with a dedicated heat sink, the VTX manages thermal output effectively, maintaining stable performance even under continuous high-power transmission. The unit’s broad 7-28V input voltage compatibility allows for direct connection to common 2S-6S LiPo packs without the need for an additional voltage regulator, simplifying wiring and reducing points of failure in the drone’s power system.
Additional Information
| Weight | 0.086 kg |
|---|---|
| Dimensions | 8 × 8 × 4 cm |
