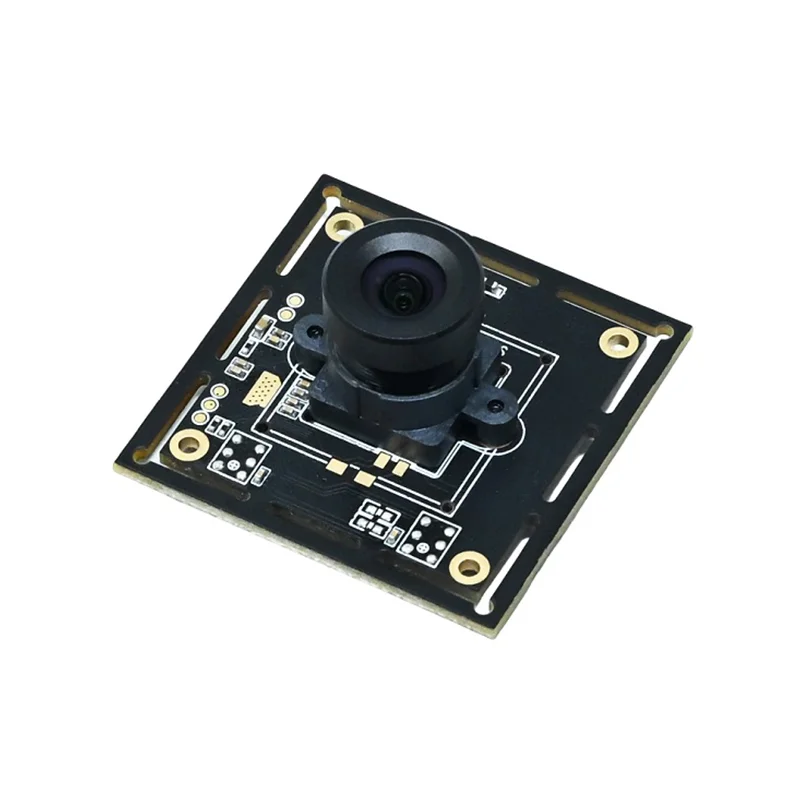

SinoSeen OV4689 4MP 2K USB Camera Module
The SinoSeen OV4689 is a 4MP USB 2.0 camera module featuring the Omnivision OV4689 sensor, delivering 2K video at up to 330 FPS with HDR support. Designed for plug-and-play integration, it’s ideal for embedded vision, AI face recognition, and security applications on Windows, Linux, macOS, and Android platforms.
Features
- 4MP Omnivision OV4689 sensor for high-resolution 2688×1520 imaging and 2K video output.
- Ultra-fast 330 FPS frame rate enables high-speed capture for motion analysis and AI processing.
- HDR support via 2/3-exposure interleaved timing ensures superior performance in challenging, dynamic lighting.
- USB 2.0 UVC-compliant interface for plug-and-play operation across Windows, Linux, macOS, and Android.
- Compact 38mm x 38mm form factor with fixed-focus 75° FOV lens and low 5V/200mA power consumption.
Out of stock
The SinoSeen OV4689 USB Camera Module integrates a high-performance 1/3-inch Omnivision OV4689 CMOS sensor, engineered for demanding computer vision applications. It delivers crisp 4-megapixel (2688×1520) still images and 2K video streams at an exceptionally high frame rate of up to 330 frames per second, making it suitable for high-speed motion capture and real-time AI analytics. The module’s advanced HDR functionality, utilizing 2- and 3-exposure interleaved timing, provides excellent detail preservation in scenes with extreme contrast between shadows and highlights.
Powered via the USB BUS (5V, 200mA), the module offers a low-power, streamlined integration path. Its UVC-compliant USB 2.0 interface ensures broad operating system compatibility without the need for proprietary drivers. The compact 38mm x 38mm PCB houses a fixed-focus lens with a 75-degree field of view, and key imaging parameters like brightness, contrast, saturation, and exposure are fully software-tunable. This combination of high-speed imaging, HDR, and easy integration makes it a robust solution for facial recognition systems, security surveillance, embedded AI, and industrial machine vision.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
