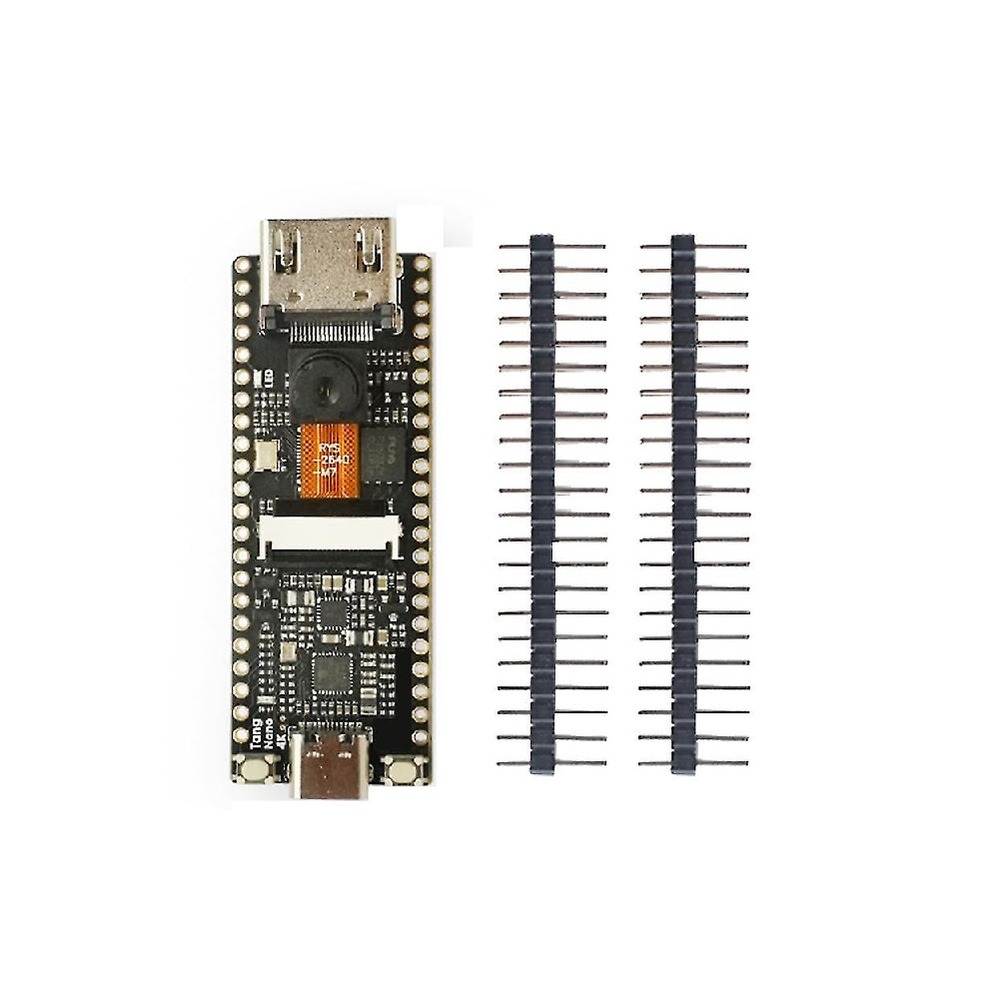

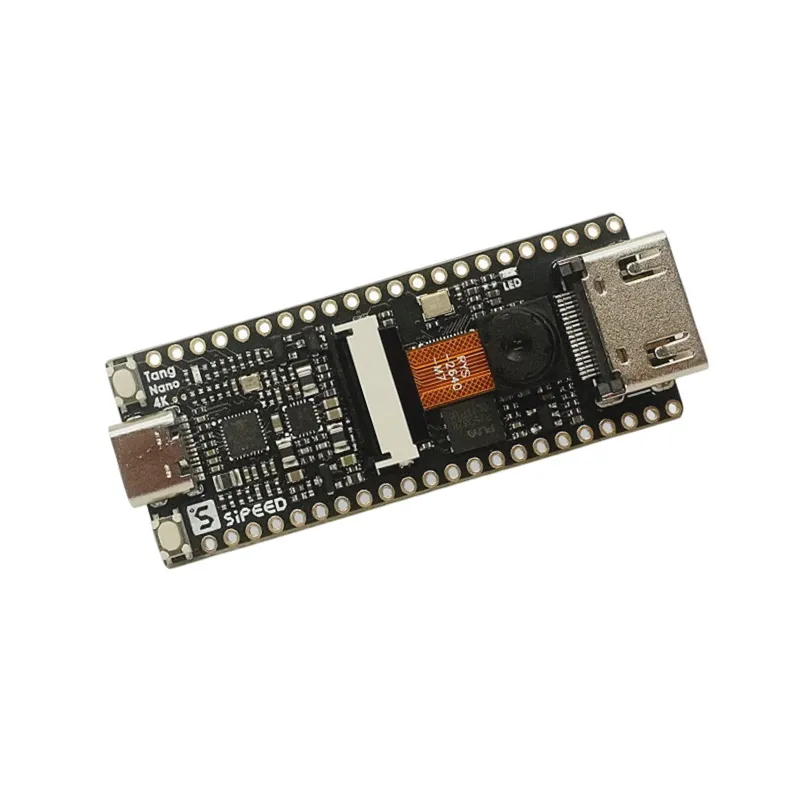

Sipeed Lichee Tang Nano 4K FPGA Board w/ OV2640 Camera
The Sipeed Lichee Tang Nano 4K FPGA board features the GW1NSR-LV4C SoC, integrating an ARM Cortex-M3 processor, 4K LUTs, and 64Mbit PSRAM. It includes an OV2640 camera, offering a self-contained platform for embedded vision and AI acceleration projects.
Features
- Features the GOWIN GW1NSR-LV4C SoC with embedded ARM Cortex-M3 processor.
- Equipped with 4608 logic units (LUTs) and 64Mbit PSRAM for robust logic design.
- Includes an integrated OV2640 camera module for embedded vision applications.
- Onboard BL702 chip facilitates direct JTAG debugging via a single USB connection.
- Compact, fully-resourced design with all I/O pins exported for easy expansion.
Out of stock
The Lichee Tang Nano 4K development board is built around GOWIN Semiconductor’s GW1NSR-LV4C system-in-package (SiP) chip, a powerful solution that combines an embedded ARM Cortex-M3 hard core processor with 4K logic resources (LUTs) and 64Mbit of PSRAM. This integrated approach allows for complex mixed-signal designs, blending the flexibility of FPGA fabric with the determinism of a microcontroller. Additionally, the board includes 32Mbit of onboard Nor Flash for program storage.
For streamlined development, the Lichee Tang Nano 4K incorporates a BL702 chip that provides direct JTAG debugging capabilities for the GW1NSR-LV4C. This eliminates the need for external debuggers and clock inputs, allowing developers to connect the board directly to a computer via USB and begin programming and debugging immediately. The compact and exquisite design ensures all core chip resources are readily accessible, making it an ideal platform for rapid prototyping and experimentation with small to medium-scale digital logic and embedded processing tasks.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 6 × 2 cm |
