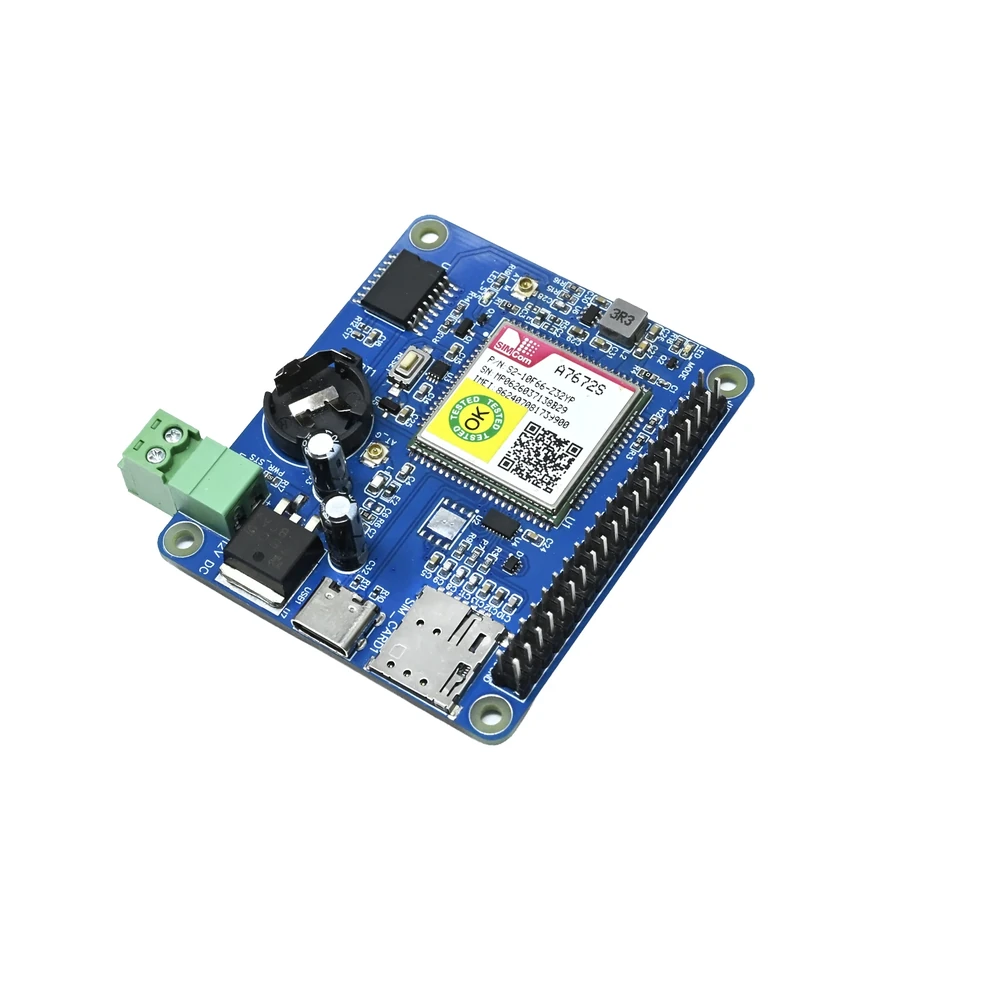

SIMCom A7672S 4G LTE Pi HAT for Raspberry Pi

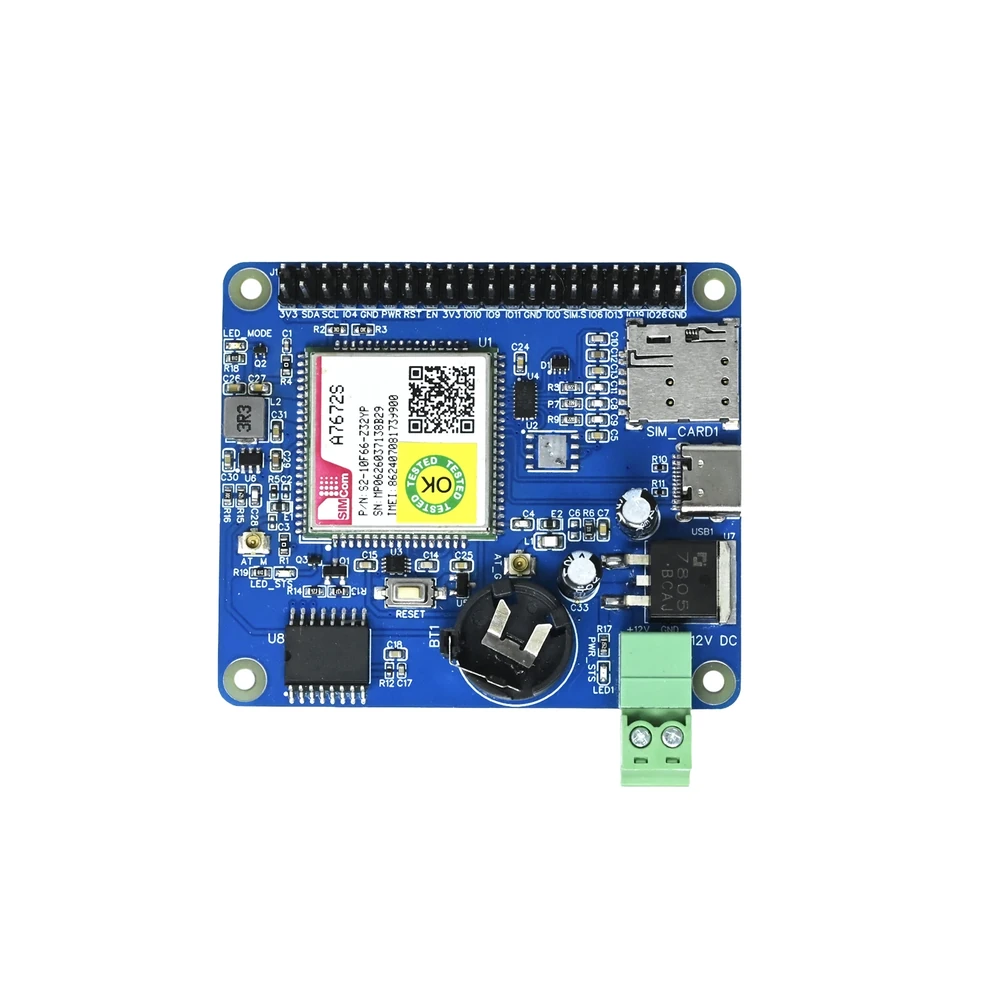

SIMCom A7672S 4G LTE Pi HAT for Raspberry Pi - Image 2

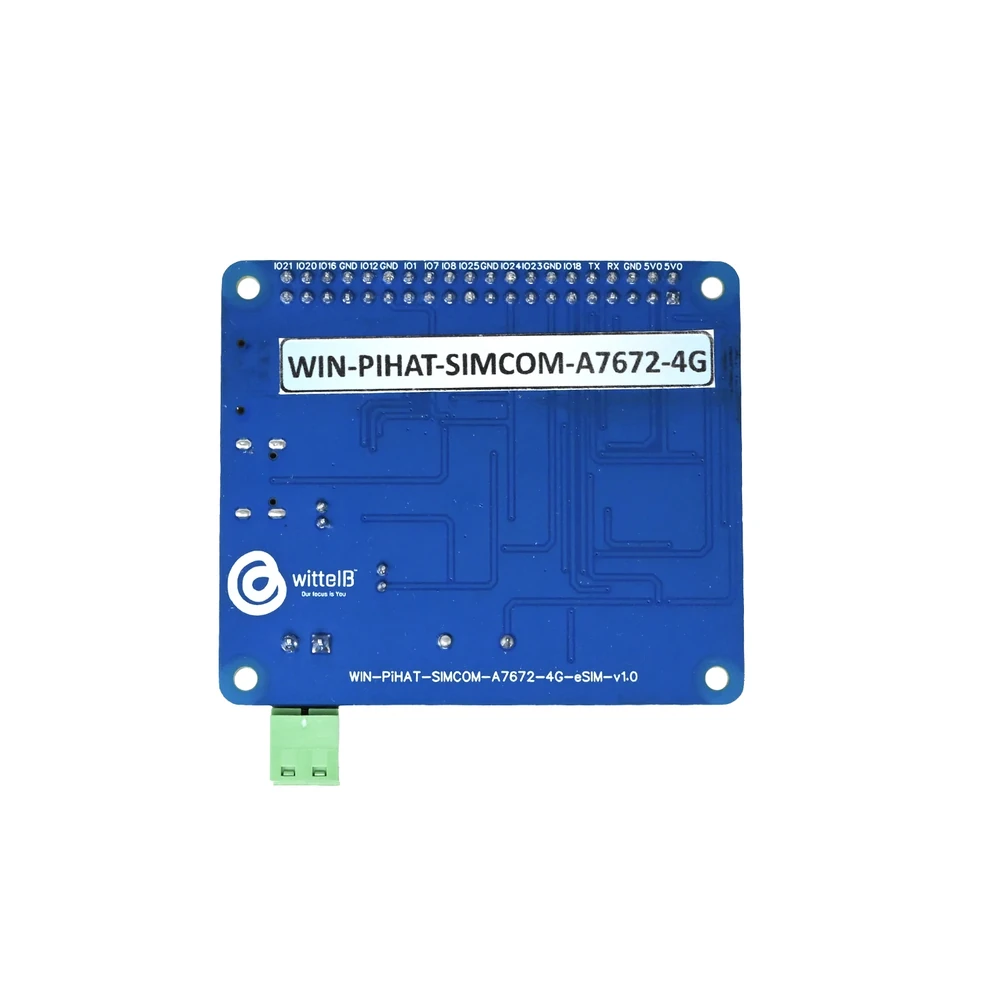

SIMCom A7672S 4G LTE Pi HAT for Raspberry Pi - Image 3
SKU: SBCD-1265
📋 GST Invoice Available

SIMCom A7672S 4G LTE Pi HAT for Raspberry Pi

₹7,078.82 (Inclusive of all taxes)
Out of Stock

This PiHAT integrates the SIMCom A7672S LTE Cat-1 module, providing robust 4G data and SMS capabilities for Raspberry Pi. It features versatile UART and USB-C interfaces, powered by 12-24V DC, making it ideal for IoT and remote monitoring applications.

Features

  • SIMCom A7672S LTE Cat-1 Module for reliable 4G connectivity
  • Integrated GNSS for real-time positioning and LBS support
  • Dual SIM (physical & eSIM) for enhanced network flexibility
  • Onboard RTC with battery backup for precise timekeeping
  • Dual communication via UART and USB Type-C interface

Out of stock

Description

The PiHAT A7672S is a compact LTE Cat-1 expansion board meticulously engineered for Raspberry Pi integration, enabling reliable 4G connectivity coupled with precise GNSS positioning and cellular-based location tracking (LBS). Powered by the high-performance SIMCom A7672S module, it facilitates flexible network redundancy by supporting both physical SIM cards and eSIM technology.

Featuring an onboard Real-Time Clock (RTC) with battery backup, the HAT ensures accurate timekeeping essential for robust data logging and critical IoT applications. Its versatile dual communication interfaces, accessible via UART and USB Type-C, allow seamless integration into diverse embedded systems. This PiHAT is an excellent solution for industrial IoT, smart metering, asset tracking, and remote monitoring, delivering stable, low-power, and scalable wireless communication for demanding deployments.

Key Features

  • LTE Cat-1 connectivity for reliable 4G data transmission
  • Integrated GNSS for real-time positioning support
  • Dual SIM support: physical SIM and eSIM compatibility
  • Cellular-based LBS tracking for fallback location services
  • Onboard RTC with battery backup for accurate timestamping
  • Dual communication: UART and USB Type-C interface
  • Compact Raspberry Pi HAT form factor (56 × 65 mm)
  • Designed for IoT, telemetry, and industrial monitoring systems

Applications

  • Industrial IoT solutions
  • Smart metering systems
  • Asset tracking and logistics
  • Remote monitoring and control
  • Telemetry systems
  • Embedded sensing projects

Technical Specifications

Item TypeRaspberry Pi LTE Expansion HAT
Module CoreSIMCom A7672S LTE Cat-1
Network Support4G LTE Data and SMS
Communication InterfaceUART + USB Type-C
Power Input12–24V DC
GNSS SupportYes (Integrated positioning support)
SIM SupportPhysical SIM + eSIM
Location ServicesLBS + Cell ID triangulation
TimekeepingRTC with battery backup
Dimensions56 mm × 65 mm
Storage Temperature-20°C to +70°C
Storage Humidity5–95% RH (Non-condensing)

Frequently Asked Questions

What Raspberry Pi models are compatible with the SIMCom A7672S 4G LTE HAT?

This HAT is designed with the standard Raspberry Pi 40-pin GPIO header, ensuring broad compatibility with Raspberry Pi 4 Model B, Raspberry Pi 3B+/3B, and other models featuring the same pinout. It seamlessly integrates for 4G connectivity and GNSS functionality across these platforms.

How does the PiHAT A7672S handle power input and management?

The PiHAT A7672S accepts a wide power input range of 12-24V DC, providing flexibility for various industrial and embedded applications. This robust power solution ensures stable operation of the LTE module and integrated peripherals, simplifying system design and deployment.

What communication interfaces are available on the SIMCom A7672S HAT?

The HAT offers dual communication flexibility through both UART and USB Type-C interfaces. UART is ideal for direct serial communication with the Raspberry Pi for AT commands, while USB Type-C provides a high-speed alternative, simplifying data transfer and integration into host systems.

What are the primary benefits of the integrated GNSS and LBS features?

The integrated GNSS provides precise real-time satellite positioning, crucial for asset tracking and navigation applications. Additionally, cellular-based LBS (Location Based Service) offers a reliable fallback for location tracking in environments where GNSS signals are weak or unavailable, ensuring continuous monitoring capabilities.

Does the SIMCom A7672S HAT support both physical SIM and eSIM?

Yes, this HAT is designed for maximum network flexibility, supporting both traditional physical SIM cards and embedded SIM (eSIM) technology. This dual-SIM capability allows for easy network switching, redundancy, and simplified management in diverse deployment scenarios, enhancing reliability and scalability.

Package Includes

  • 1 x PiHAT A7672S LTE Cat-1 GNSS Expansion HAT for Raspberry Pi with eSIM, RTC & UART/USB Connectivity

Additional Information

Weight 1.5 kg
Dimensions 16 × 11 × 4 cm
