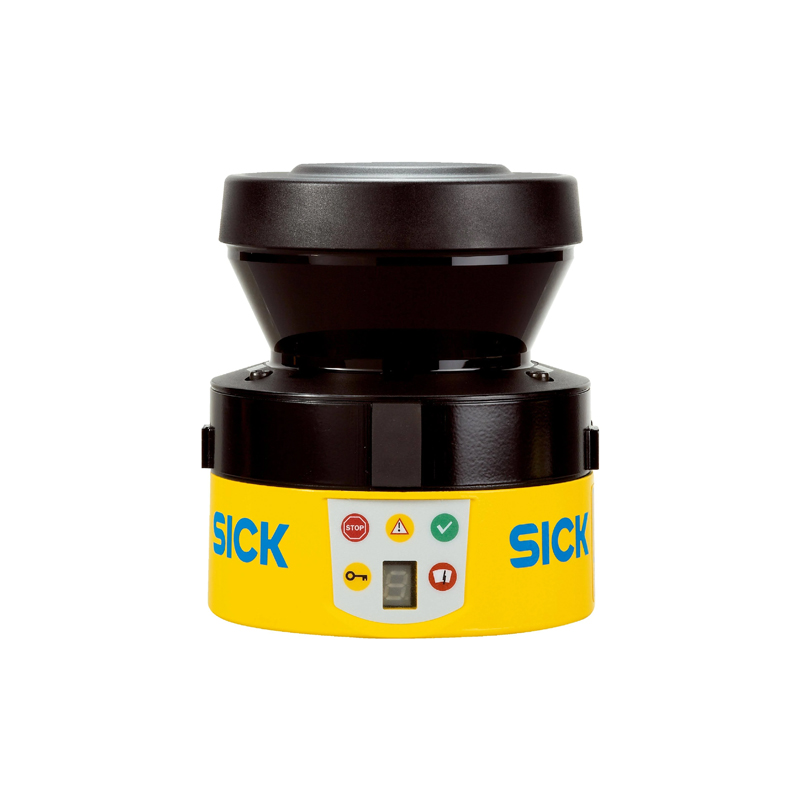

SICK S32B-3011EA Safety Laser Scanner, 270° Beam Angle, 48 Field Pair, Type 3, SIL2, IP65, Sensing Range: 30m

The S32B-3011EA is certified to Type 3 according to IEC 61496 for electro-sensitive protective equipment (ESPE) and achieves Safety Integrity Level 2 (SIL2) per IEC 61508. This certifies it for use in personnel protection applications where reliable detection of intrusions into hazardous machine areas is required.

Configuration is performed via the integrated RS-232 interface using SICK's proprietary software. The scanner supports up to 48 field pairs, allowing you to define multiple independent protective and warning zones with different shapes, sizes, and response actions (e.g., stop, slow down, warn) tailored to your specific machine or AGV safety concept.

The protective field resolution is the minimum object diameter the scanner is guaranteed to detect within its configured safety zone. You can select a resolution (e.g., 30 mm for finer detection) based on your application's required sensitivity. A finer resolution may reduce the maximum protective field range or scanning frequency, so selection involves a performance trade-off.

While the IP65 rating provides excellent protection against dust and water jets, the S32B-3011EA is primarily designed for indoor industrial environments. For outdoor use, factors like direct sunlight, rain, fog, and extreme temperatures can affect laser performance and require additional protective measures or a scanner specifically rated for outdoor conditions.
