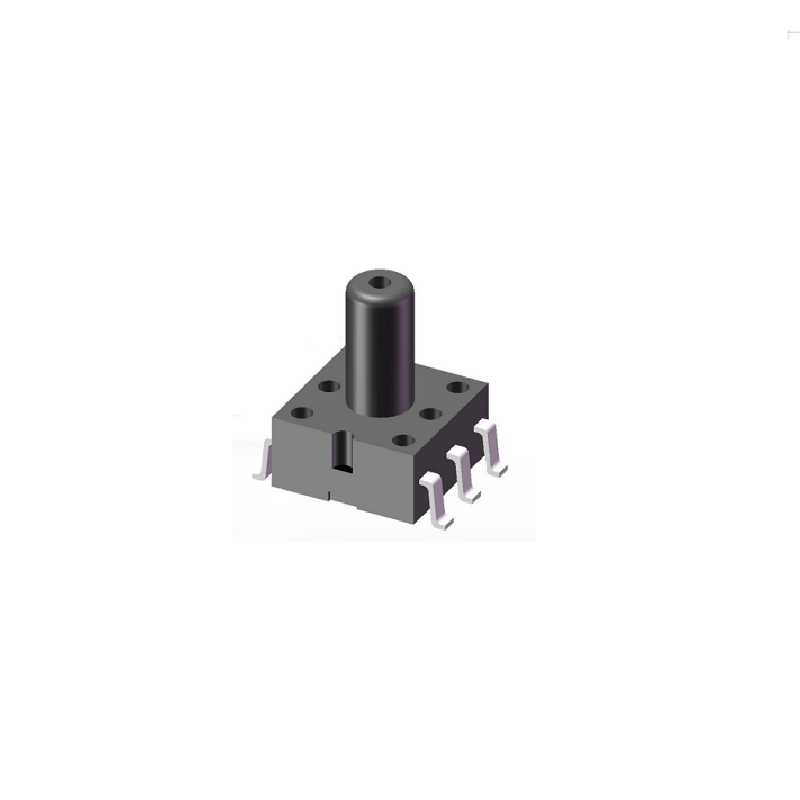

Sencoch GZP6859A101KPW50K Pressure Sensor, 5V Analog Output, -100 kPa to 100 kPa Range, SOP-6 Package
The Sencoch GZP6859A101KPW50K is a compact MEMS piezoresistive pressure sensor delivering an analog voltage output proportional to gauge pressure from -100 kPa to 100 kPa. Operating from a 5V DC supply, it is designed for integration into medical devices, HVAC controls, and portable instrumentation requiring precise pressure monitoring.
Features
- MEMS piezoresistive sensing element for high sensitivity and stability
- Analog voltage output for direct ADC interfacing with microcontrollers
- Wide operating temperature range from -30°C to +85°C
- Compact SOP-6 surface-mount package with 2.54mm pin pitch
- Low standby current consumption of 1.8 mA
Out of stock
The GZP6859A101KPW50K pressure sensor utilizes a MEMS piezoresistive Wheatstone bridge configuration, where applied pressure induces a strain in the silicon diaphragm, resulting in a proportional change in resistance and output voltage. This design ensures a linear and repeatable response across its full -100 kPa to 100 kPa gauge pressure range.
Housed in a robust SOP-6 package, the sensor is suitable for demanding environments. Its analog output simplifies signal conditioning, allowing direct connection to microcontroller ADCs for system integration in portable medical equipment, pneumatic controls, and appliance monitoring.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
