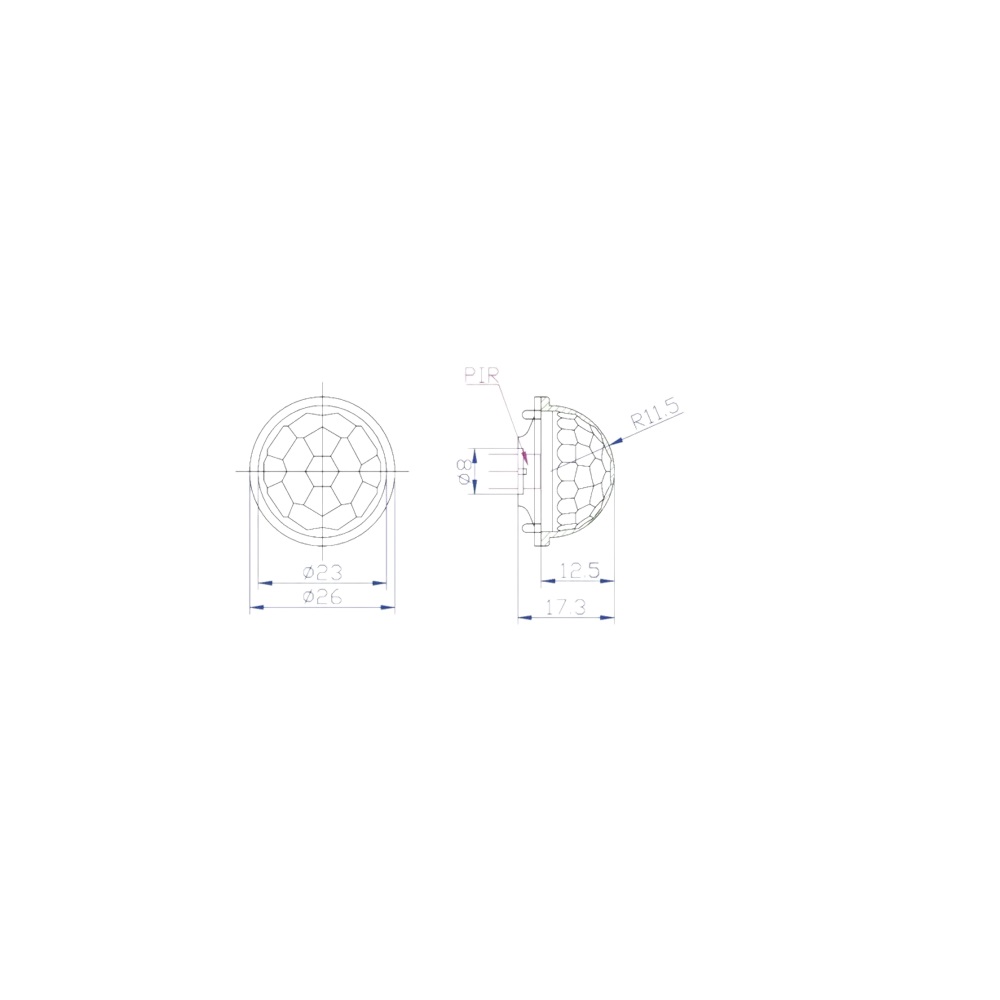

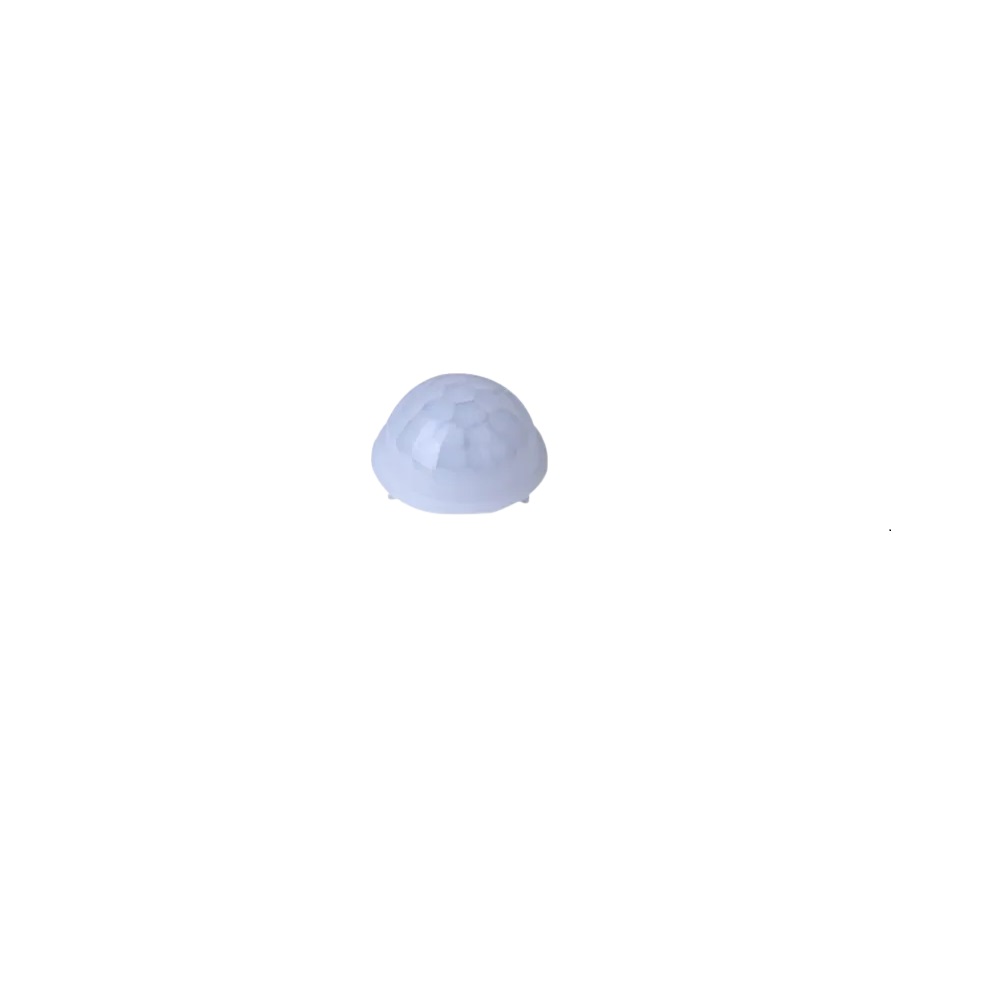

Senba S9008 Mini PIR Plastic Housing Motion Sensor Fresnel Lens Dia 23mm

The Senba S9008 PIR sensor module is designed for low-voltage operation, typically compatible with 3.3V to 5V DC power supplies. Always confirm the specific voltage requirements by checking the module's silkscreen or datasheet before connecting to your microcontroller's 3.3V or 5V rail to ensure proper function and avoid damage.

Connect the module's VCC pin to Arduino 5V, GND to GND, and the digital OUT pin to any digital input pin (e.g., D2). The output pin will go HIGH when motion is detected and return to LOW after a preset delay. Use the `digitalRead()` function in your Arduino sketch to monitor this state change and trigger your desired action, such as turning on an LED or sounding a buzzer.

The integrated Fresnel lens serves two critical functions: it focuses distant infrared radiation onto the small pyroelectric sensor element to increase detection range, and it creates a pattern of multiple detection zones within the 120° field of view. This zoning allows the sensor to detect a change in infrared heat patterns only when a warm object, like a person, moves between zones, reducing false triggers from ambient temperature changes.

This specific Senba S9008 module features a plastic housing without a stated IP rating for water or dust resistance. It is primarily designed for indoor use. For outdoor deployment, the module must be installed inside a sealed, weatherproof enclosure that protects it from direct rain, condensation, and UV exposure while allowing the Fresnel lens an unobstructed view of the detection area.
