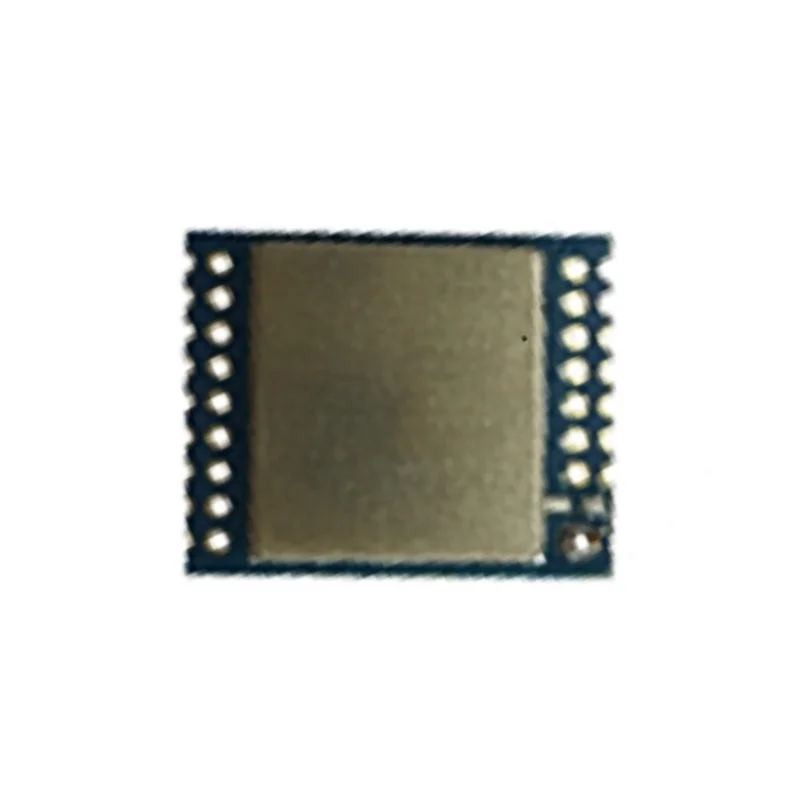

Reyax RYLR684 426/433/490MHz LoRa/(G)FSK Transceiver Module
The Reyax RYLR684 is a versatile long-range transceiver module based on the Semtech LLCC68 chip, supporting both LoRa and (G)FSK modulation across the 416-520MHz frequency band for robust sub-1GHz IoT deployments.
Features
- Based on Semtech LLCC68 chip for reliable LoRa and (G)FSK wireless communication.
- Wide frequency range from 416MHz to 520MHz, supporting 433MHz, 426MHz, and 490MHz ISM bands.
- High RF sensitivity of -129dBm for superior long-range reception in noisy environments.
- Programmable TX power from -20dBm to +22dBm for optimal range and power consumption balance.
- Low sleep current of 600µA and robust operating temperature from -40°C to 85°C for battery-powered, outdoor applications.
Out of stock
The Reyax RYLR684 transceiver module is engineered for demanding long-range wireless applications, leveraging the proven Semtech LLCC68 RF IC. It provides developers with a dual-modulation solution, offering the network flexibility of LoRa alongside the higher data rates of (G)FSK modulation, all within the sub-1GHz spectrum.
Its architecture is designed for resilience, featuring a metal cover for EMI shielding and options for SMT or DIP mounting and antenna integration. With programmable output power up to +22dBm and a high receiver sensitivity of -129dBm, the module excels in creating robust point-to-point or star network links for telemetry and control systems where range and reliability are paramount.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3 × 5 × 3 cm |
