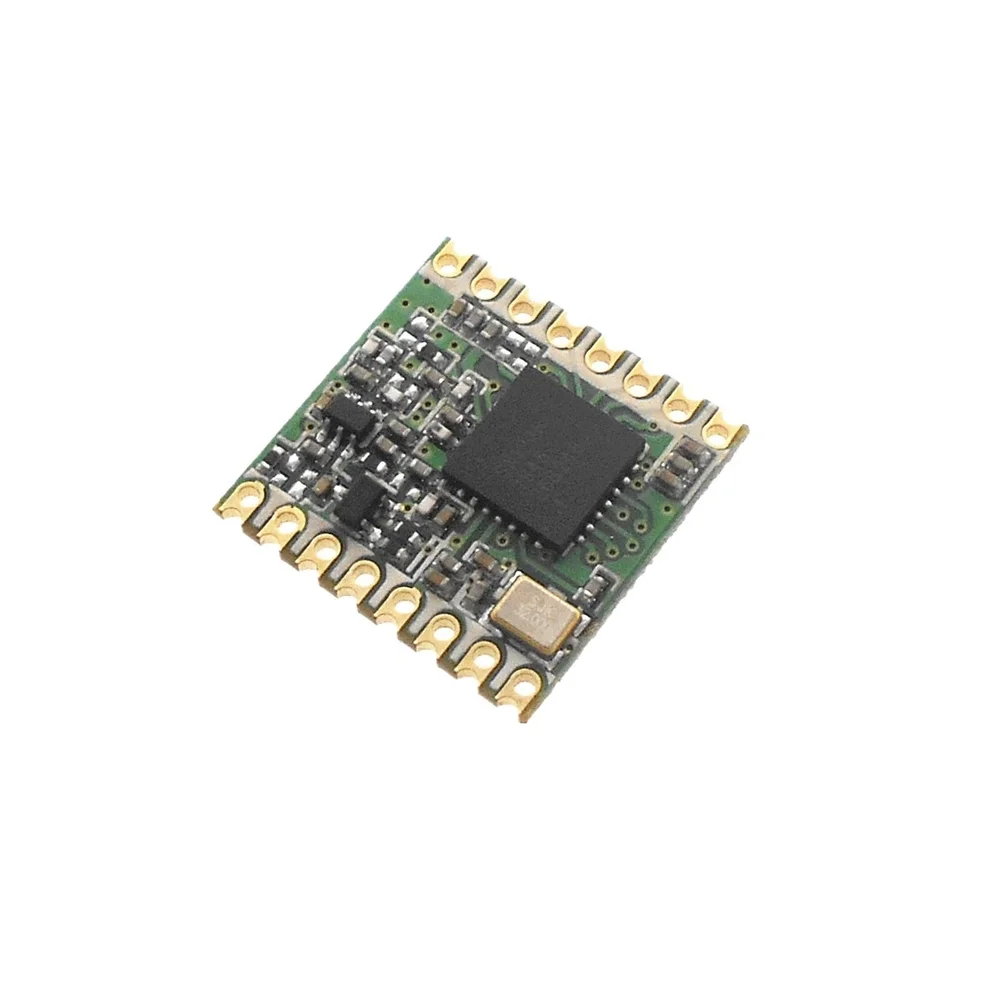

RFM98W 433MHz LoRa Wireless Transceiver Module
The RFM98W is a 433MHz LoRa wireless transceiver module based on HopeRF’s RFM98W chip, designed for ultra-long-range, low-power IoT communication. It operates on a 3V supply and is programmable via SPI, supporting LoRa, FSK, GFSK, MSK, GMSK, and OOK modulation schemes.
Features
- Ultra-long-range LoRa modem with a maximum link budget of 168 dB for exceptional penetration and coverage.
- High sensitivity down to -148 dBm and +20 dBm RF output power for robust communication in noisy environments.
- Low power consumption with just 10.3 mA RX current and 200 nA register retention sleep mode for battery-operated nodes.
- Supports multiple modulations (FSK, GFSK, MSK, GMSK, LoRa, OOK) and programmable data rates up to 300 kbps.
- Compact 16x16x2 mm form factor with integrated synthesizer, packet engine, and temperature sensor for streamlined system integration.
Out of stock
The RFM98W module integrates HopeRF’s patented LoRa modulation technology into a compact, surface-mount transceiver. This enables reliable spread-spectrum communication over several kilometers while maintaining high interference immunity and minimizing current draw, making it ideal for challenging RF environments.
Its bullet-proof front end (IIP3 = -12.5 dBm) and excellent blocking immunity ensure stable operation even with nearby transmitters. The module features a fully integrated frequency synthesizer, automatic Channel Activity Detection (CAD), and a packet engine handling up to 256-byte frames with CRC, simplifying firmware development for LPWAN applications.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.6 × 1.6 × 0.2 cm |
