LWC-433-MM-03 5m RG58 SMA Male-to-Male RF Cable
LWC-433-MM-03 5m RG58 SMA Male-to-Male RF Cable - Image 2
SKU: IOWC-0739
📋 GST Invoice Available

LWC-433-MM-03 5m RG58 SMA Male-to-Male RF Cable

₹410.00 (Inclusive of all taxes)
Out of Stock

The LWC-433-MM-03 is a 5-meter RG58 coaxial RF cable with SMA male connectors on both ends, optimized for 433MHz wireless applications such as LoRa, ISM-band sensors, and remote control systems, providing a 50-ohm impedance match for reliable signal transmission.

Features

  • 5-Meter RG58 Coaxial Cable: Provides extended reach for flexible installation of 433MHz antennas and RF modules in IoT deployments.
  • SMA Male-to-Male Connectors: Ensures a secure, standard interface for connecting to SMA female ports on transceivers, gateways, and antennas.
  • Optimized for 433MHz ISM Band: Engineered for low loss and stable performance at 433 MHz ±10MHz, ideal for LoRa, wireless sensors, and remote telemetry.
  • 50-Ohm Impedance & Low VSWR: Features 50Ω impedance with a VSWR < 2.0 to minimize signal reflection and maximize power transfer.
  • 10W Power Handling: Supports up to 10 watts of RF power, suitable for high-power transmitters and robust industrial applications.

Out of stock

Description

The LWC-433-MM-03 is a professional-grade 5-meter RF coaxial cable assembly designed for reliable signal transmission in the 433 MHz Industrial, Scientific, and Medical (ISM) band. Utilizing RG58 coaxial cable with SMA male connectors on both ends, it provides a robust physical link between RF transceivers, antennas, and IoT devices. Its 50-ohm impedance ensures compatibility with standard RF systems, while the low VSWR (<2.0) guarantees efficient power transfer with minimal signal loss over its length.

This cable is constructed for durability and consistent performance in wireless communication setups, including LoRaWAN networks, sub-1GHz sensor nodes, and industrial telemetry. The linear polarization and 3.5 dBi gain specification indicate its pairing with compatible omnidirectional or dipole antennas to extend operational range. With a power handling capability of 10 watts, it is suitable for both low-power IoT endpoints and higher-power transmitter applications, making it a versatile component for system integrators and RF engineers.

Key Features

  • Extended 5-Meter Reach: Enables flexible placement of antennas away from RF modules for optimal signal propagation and reduced interference.
  • Low-Loss RG58 Coaxial Construction: Provides effective shielding against electromagnetic interference (EMI) for clean signal integrity over distance.
  • Precision SMA Male Connectors: Gold-plated contacts ensure reliable, low-resistance connections and repeated mating cycles without degradation.
  • 433 MHz ±10MHz Tuned: Specifically engineered for optimal performance in the popular 433MHz ISM band, covering common LoRa and wireless protocol frequencies.
  • Robust Power Handling: Capable of supporting transmission power up to 10W, accommodating both sensitive receivers and powerful transmitters.
  • Standard 50-Ohm Impedance: Matches the impedance of most commercial RF equipment, preventing standing waves and signal reflection.

Applications

  • LoRa & LoRaWAN Network Deployment: Extend antenna placement for gateways and nodes operating in the 433MHz region to improve coverage.
  • Sub-1GHz Wireless Sensor Networks: Connect 433MHz RF modules (e.g., SI4432, CC1101) to external antennas for environmental monitoring and industrial IoT.
  • Remote Control & Telemetry Systems: Facilitate connections for RC models, drone control links, and long-range telemetry data transmission.
  • Amateur Radio & DIY RF Projects: Serve as a reliable feed line for ham radio setups, antenna analyzers, and custom transmitter builds.

Technical Specifications

Model / Part NumberLWC-433-MM-03 (5.0M-RG58)
Cable Type & LengthRG58, 5.0 meters
Connector TypeSMA Male (Plug) to SMA Male (Plug)
Operating Frequency433 MHz ±10MHz
Impedance50 Ω
VSWR< 2.0
Power Handling10 Watts
PolarizationLinear
Shipping Weight0.075 kg
Shipping Dimensions12 × 3 × 1 cm

Frequently Asked Questions

What devices is this SMA male-to-male cable compatible with?

This cable is compatible with any RF device featuring a standard SMA female port, including 433MHz LoRa modules (SX1276/SX1278), sub-1GHz transceivers, wireless gateway antennas, and amateur radio equipment. Ensure your device operates within the 433MHz ±10MHz range and uses 50-ohm impedance for optimal performance. Avoid using it with RP-SMA or other connector types without a proper gender-changing adapter.

How do I calculate the signal loss for this 5-meter RG58 cable at 433MHz?

Signal loss depends on the cable's attenuation per meter, typically around 0.3 dB/m for RG58 at 433MHz. For a 5-meter run, expect approximately 1.5 dB of insertion loss. This is acceptable for most IoT applications. For critical low-power links, use a shorter cable or a lower-loss type like LMR-200. Always position your antenna as high and clear as possible to offset cable losses.

Can I use this cable for frequencies other than 433MHz, like 868MHz or 2.4GHz?

While it is tuned for 433MHz, it may function at 868MHz or 2.4GHz with increased attenuation and higher VSWR, degrading performance. For 868MHz LoRa or 2.4GHz Wi-Fi/Bluetooth, use a cable specifically rated for those higher frequencies. Mismatched cables can cause significant signal loss and potential damage to sensitive RF components due to reflected power.

Package Includes

  • 1 x LWC-433-MM-03 (5.0M-RG58) SMA Male-to-Male RG58 Coaxial Cable (5m)

Additional Information

Weight 0.075 kg
Dimensions 12 × 3 × 1 cm

Related Products

Out of Stock

AI-Thinker LoRa Ra-01S Module (410-525MHz)

443.00
Learn More
Out of Stock

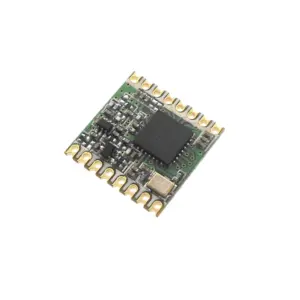

RFM98W 433MHz LoRa Wireless Transceiver Module

499.00
Learn More
Out of Stock

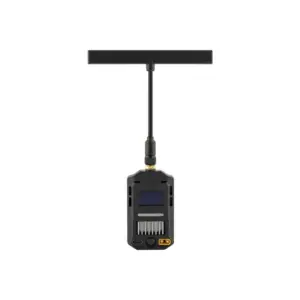

RadioMaster Bandit Nano ExpressLRS 915MHz RF Module

8,069.00
Learn More
Out of Stock

Seeed Studio Studio SenseCAP Indicator D1Pro 4-Inch Touch Screen IoT Platform w/ ESP32-S3 & RP2040

9,759.00
Learn More
Out of Stock

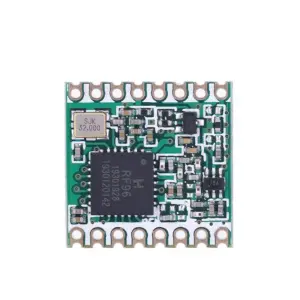

HopeRF RFM96W LoRa Module 433MHz

669.00
Learn More
Out of Stock

EByte E32-433T20D LoRa UART Module 433MHz 20dBm

789.00
Learn More
Out of Stock

E32-433T30DV8 LoRa 433MHz RF Transceiver Module w/ SMA Connector

1,595.00
Learn More
Out of Stock

DFRobot FireBeetle LoRa Radio 433MHz Module w/ Antenna

1,579.00
Learn More
Out of Stock

EByte E80-900M2213S LR1121 LoRa Dual-Band SPI RF Transceiver Module

879.00
Learn More
Out of Stock

Waveshare ESP32-S3 LoRa Development Board w/ LR1121 RF Chip HF Version

1,809.00
Learn More
Out of Stock

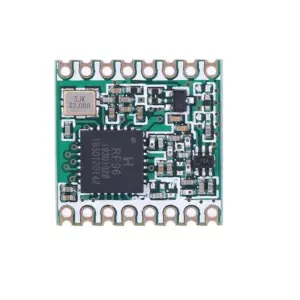

RFM95W LoRa Transceiver Module, 915MHz
