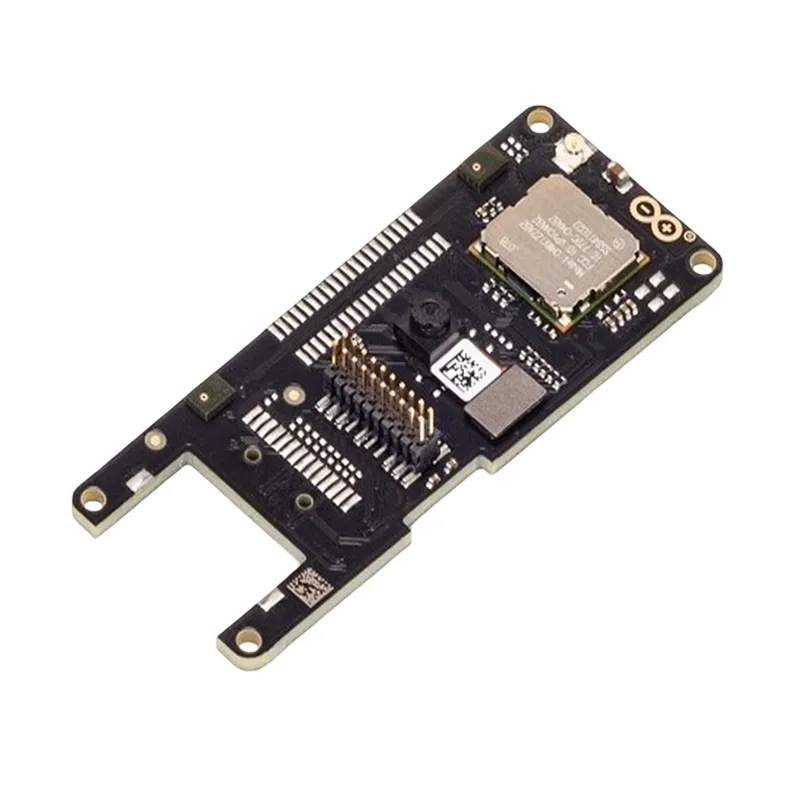

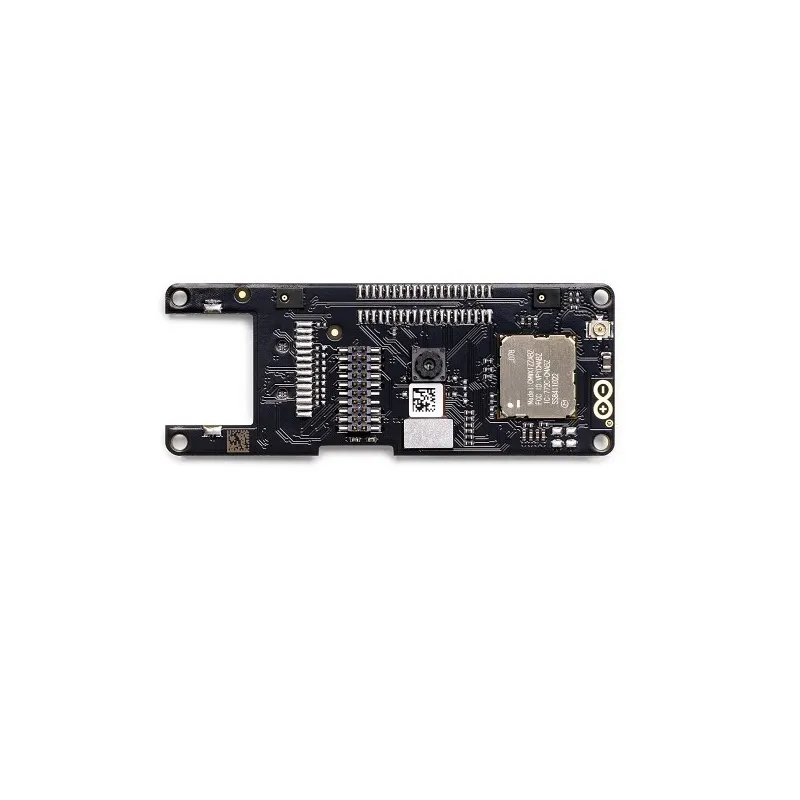

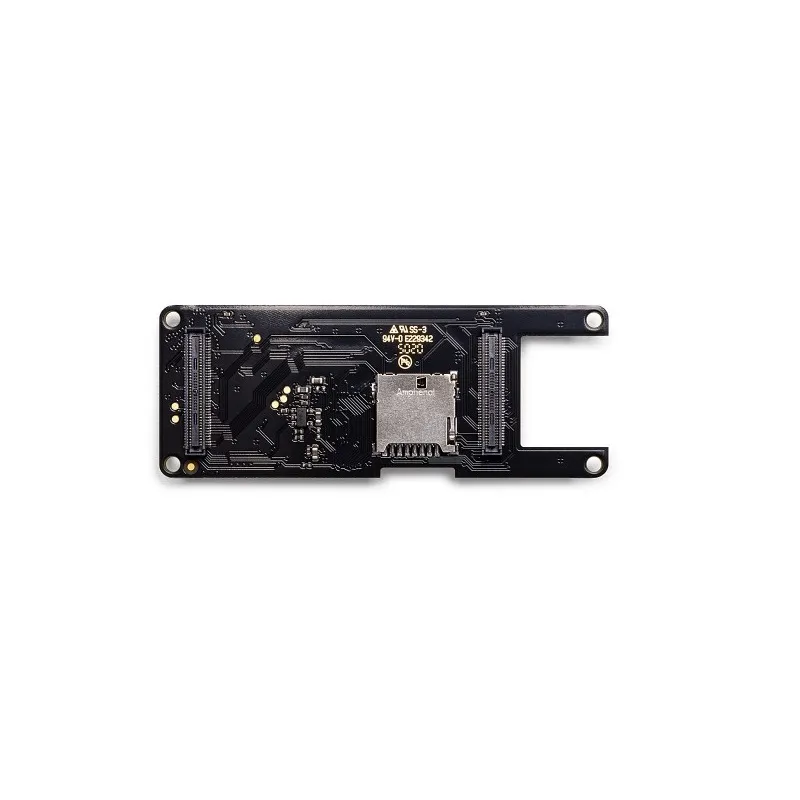

Arduino Portenta Vision Shield LoRa ASX00026
The Arduino Portenta Vision Shield LoRa extends your Portenta H7 with embedded computer vision, long-range LoRa connectivity for IoT applications, and sound event detection capabilities. It features a Himax HM-01B0 camera and dual microphones, ideal for compact edge AI and sensing projects.
Features
- Integrates Himax HM-01B0 camera for embedded computer vision tasks and QVGA resolution.
- Provides 868/915MHz LoRa connectivity for long-range IoT communication.
- Features two MP34DT05 microphones for real-time sound detection and analysis.
- Designed for seamless integration and power efficiency with the Arduino Portenta H7 board.
Out of stock
The Portenta Vision Shield LoRa significantly enhances your Arduino Portenta H7 with powerful edge computing and connectivity features. This add-on enables the execution of embedded computer vision applications, leveraging a Himax HM-01B0 camera module with high sensitivity BrightSense pixel technology, offering 320×320 active pixel resolution with QVGA support. It also offers robust wireless communication through an 868/915MHz LoRa module, facilitating connection to the Arduino Cloud or custom infrastructure with low power consumption.
Beyond visual processing, the shield incorporates two MP34DT05 microphones, allowing for sophisticated sound event detection and real-time audio analysis. This combination of vision, sound, and long-range wireless capabilities makes the Portenta Vision Shield LoRa an ideal platform for developing advanced sensing and IoT solutions where a compact footprint and efficient power usage are critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6.6 × 2.5 cm |
