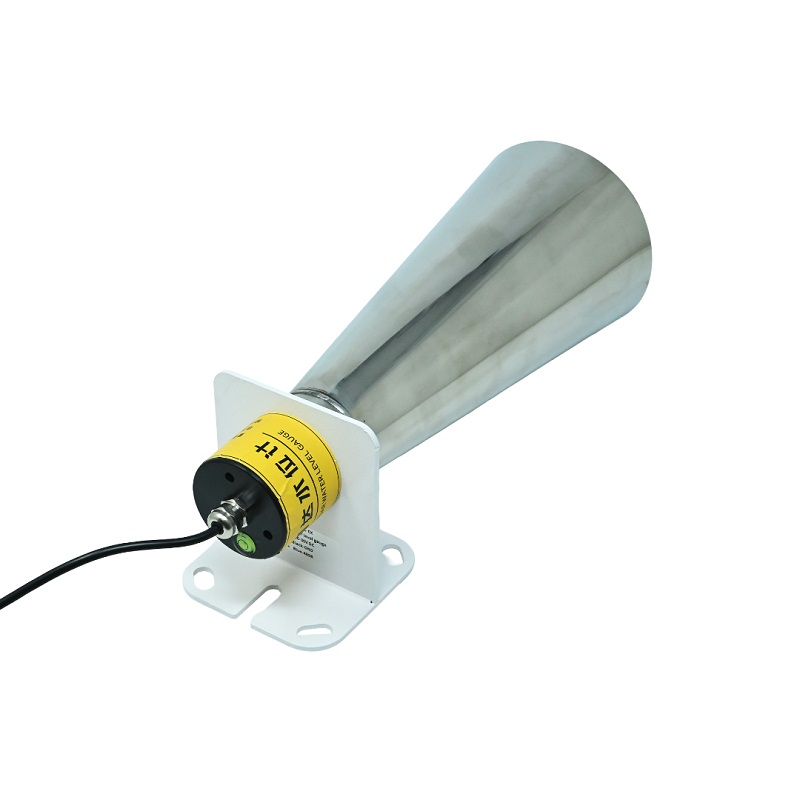

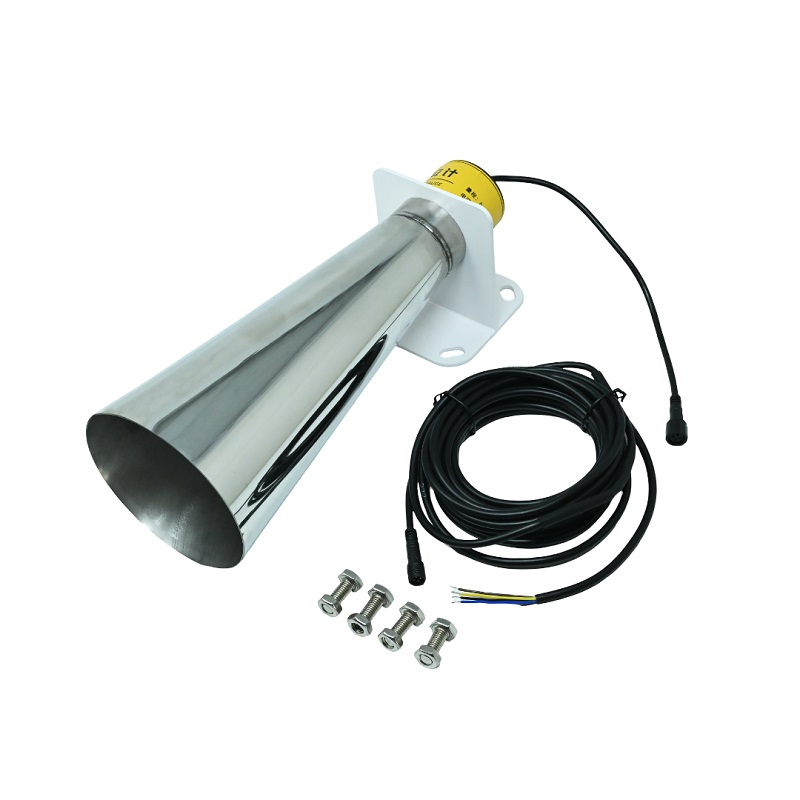

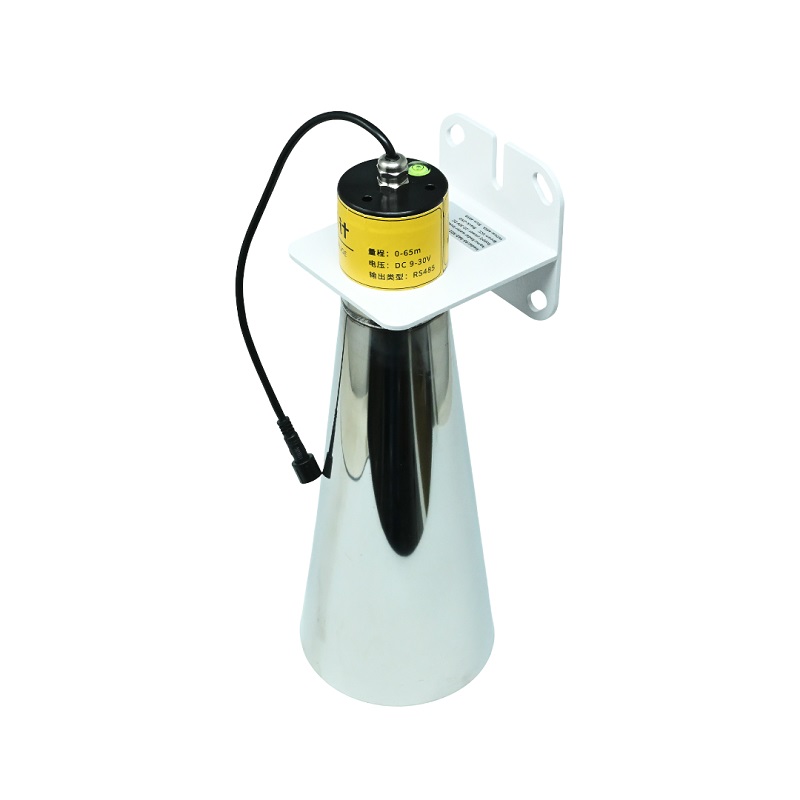

Renke RS-RAD-N01-1-EX Radar Level Sensor, RS485, 0.1-65m Range, IP67
The Renke RS-RAD-N01-1-EX is a high-precision, non-contact radar level sensor utilizing 76–81 GHz FMCW technology for industrial and environmental monitoring. It provides ±1 mm accuracy over a 0.1 m to 65 m range, features RS485 digital output for system integration, and is housed in a robust IP67-rated enclosure for reliable operation in harsh conditions.
Features
- High-precision 76–81 GHz FMCW radar technology with ±1 mm accuracy.
- Non-contact measurement range from 0.1 meters up to 65 meters.
- RS485 digital communication interface for reliable data transmission.
- Robust IP67-rated housing for operation in harsh industrial and outdoor environments.
- Low power consumption of 0.2 W and wide operating temperature range from -40°C to +80°C.
Out of stock
The Renke RS-RAD-N01-1-EX employs Frequency-Modulated Continuous Wave (FMCW) radar technology operating in the 76–81 GHz millimeter-wave band. This advanced principle allows for highly accurate distance measurement by comparing the frequency shift between transmitted and reflected signals, ensuring stability unaffected by temperature, pressure, or vapor presence in the measurement path.
Its integrated CMOS RF chip and compact lens design produce a narrow 6° beam angle, minimizing interference from tank walls, agitators, or other obstructions. The sensor is engineered for continuous, maintenance-free operation in demanding applications, from water resource management to industrial process control, thanks to its IP67 protection against dust and water ingress.
Additional Information
| Weight | 0.922 kg |
|---|---|
| Dimensions | 30 × 11 cm |
