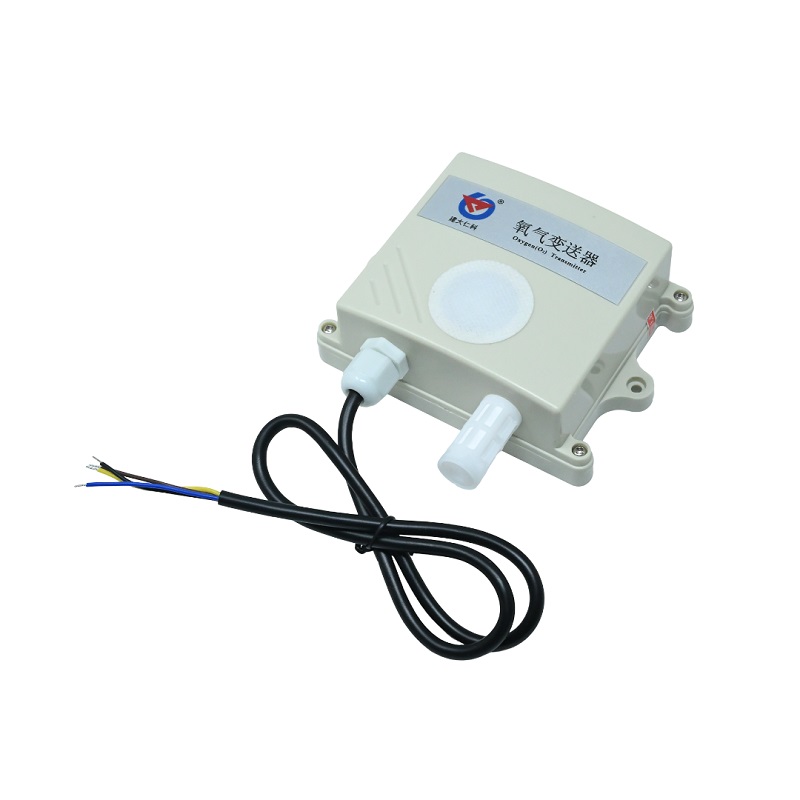

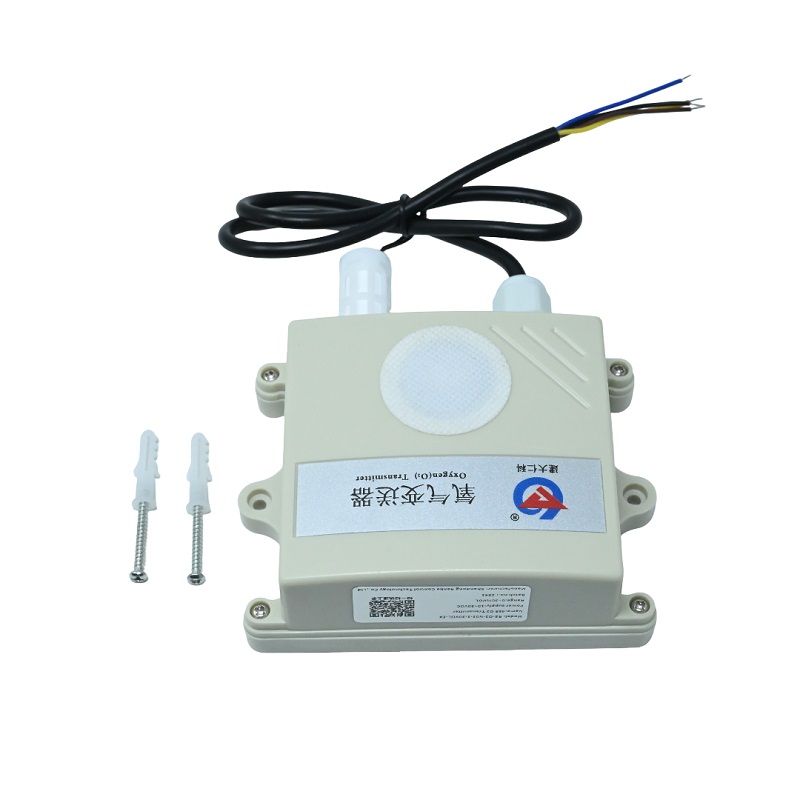

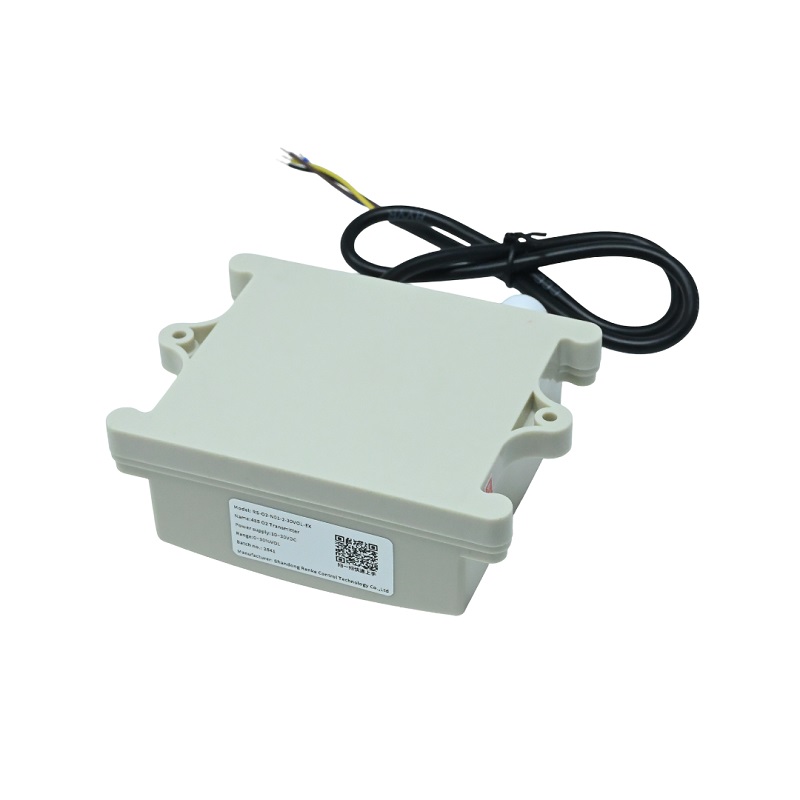

Renke RS-O2-N01-30VOL-EX Oxygen Sensor (RS485) - 0-30%VOL Range
The Renke RS-O2-N01-30VOL-EX is an electrochemical oxygen sensor module with an RS485 Modbus interface, designed for industrial safety and environmental monitoring systems. It provides accurate 0-30%VOL O2 concentration measurement with a 10-30V DC supply, making it compatible with PLCs, SCADA, and data acquisition systems.
Features
- Electrochemical sensing for 0-30%VOL oxygen concentration with ±2%FS accuracy.
- RS485 Modbus communication interface for robust industrial network integration.
- Fast response time ≤10 seconds and long-term stability (≤5% drift/year).
- Wide 10-30V DC power input with low 0.12W power consumption.
- IP-rated waterproof, dustproof housing for harsh industrial environments.
Out of stock
The RS-O2-N01-30VOL-EX employs a high-precision electrochemical cell for oxygen detection, utilizing a gas-permeable membrane that blocks particulates and moisture while allowing O2 diffusion. Renke’s proprietary compensation algorithms ensure stable performance across its full operating temperature range of -20°C to 50°C.
This sensor is engineered for reliability in demanding applications, featuring a robust RS485 interface that supports Modbus RTU protocol for seamless integration into industrial control networks. Its low power draw and wide supply voltage range make it suitable for both centralized and distributed monitoring systems.
Additional Information
| Weight | 0.168 kg |
|---|---|
| Dimensions | 15 × 14 × 5 cm |
