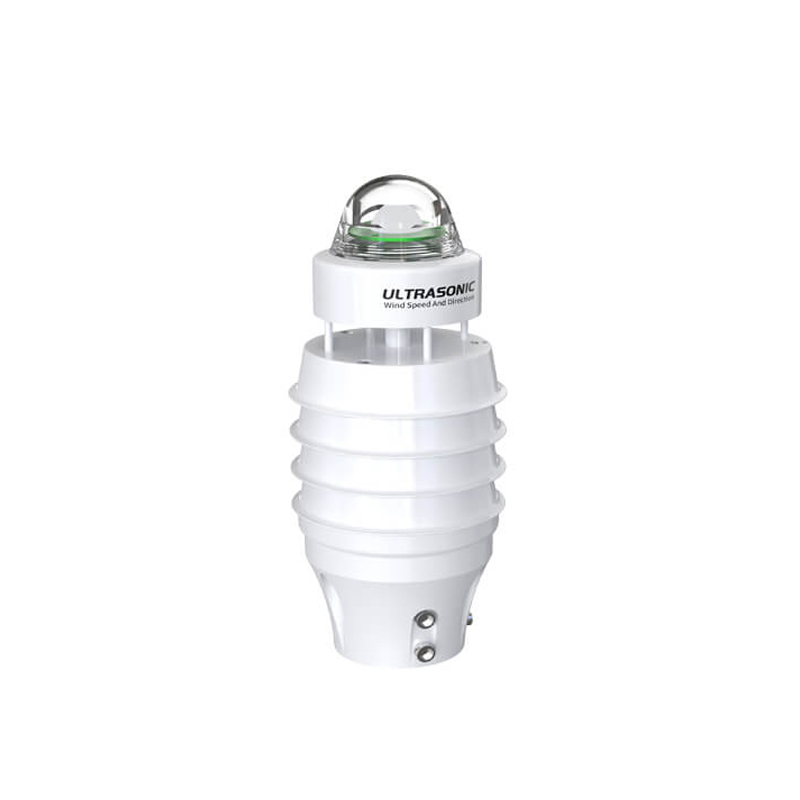

Renke RS-FSXCS-N01-3HP-EX Ultrasonic Integrated Weather Station - RS485 MODBUS-RTU, IP54
The Renke RS-FSXCS-N01-3HP-EX is a compact, all-in-one ultrasonic weather station integrating wind speed/direction, temperature, humidity, rainfall, solar radiation, atmospheric pressure, and noise level sensing. It outputs data via RS485 MODBUS-RTU protocol for seamless integration with industrial PLCs, SCADA systems, and cloud-based monitoring platforms.
Features
- Integrated 8-parameter sensing: Wind Speed/Direction, Temperature, Humidity, Rainfall, Solar Radiation, Atmospheric Pressure, and Noise.
- Maintenance-free ultrasonic wind measurement with 360° coverage and no moving parts.
- Robust IP54-rated ABS and aluminum alloy housing for harsh outdoor environments.
- Standard RS485 MODBUS-RTU output for industrial and IoT system integration.
- Wide operating voltage range (10–30VDC) with low power consumption.
Out of stock
The RS-FSXCS-N01-3HP-EX employs ultrasonic anemometry for wind measurement, eliminating mechanical wear and providing fast, accurate readings. Optical principles are used for rainfall detection, while high-precision imported sensors ensure reliable data for temperature, humidity, atmospheric pressure, and solar radiation. The integrated electronic compass allows for flexible installation without requiring manual north alignment.
Designed for continuous outdoor operation, the station’s UV-resistant and corrosion-proof housing protects against environmental degradation. Its plug-and-play MODBUS-RTU interface enables straightforward connection to data loggers, programmable logic controllers (PLCs), and remote telemetry units, making it suitable for both fixed and mobile monitoring deployments.
Additional Information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 23 × 18 cm |
