Pro-Range 1024 PPR ABZ 3-Phase Optical Rotary Encoder with 2m Cable & Pull-Up Resistors
The Pro-Range 1024 PPR ABZ 3-Phase Incremental Optical Rotary Encoder delivers high-resolution quadrature output for precise angular position and speed measurement in industrial automation, robotics, and CNC systems, compatible with 5-24V DC logic.
Features

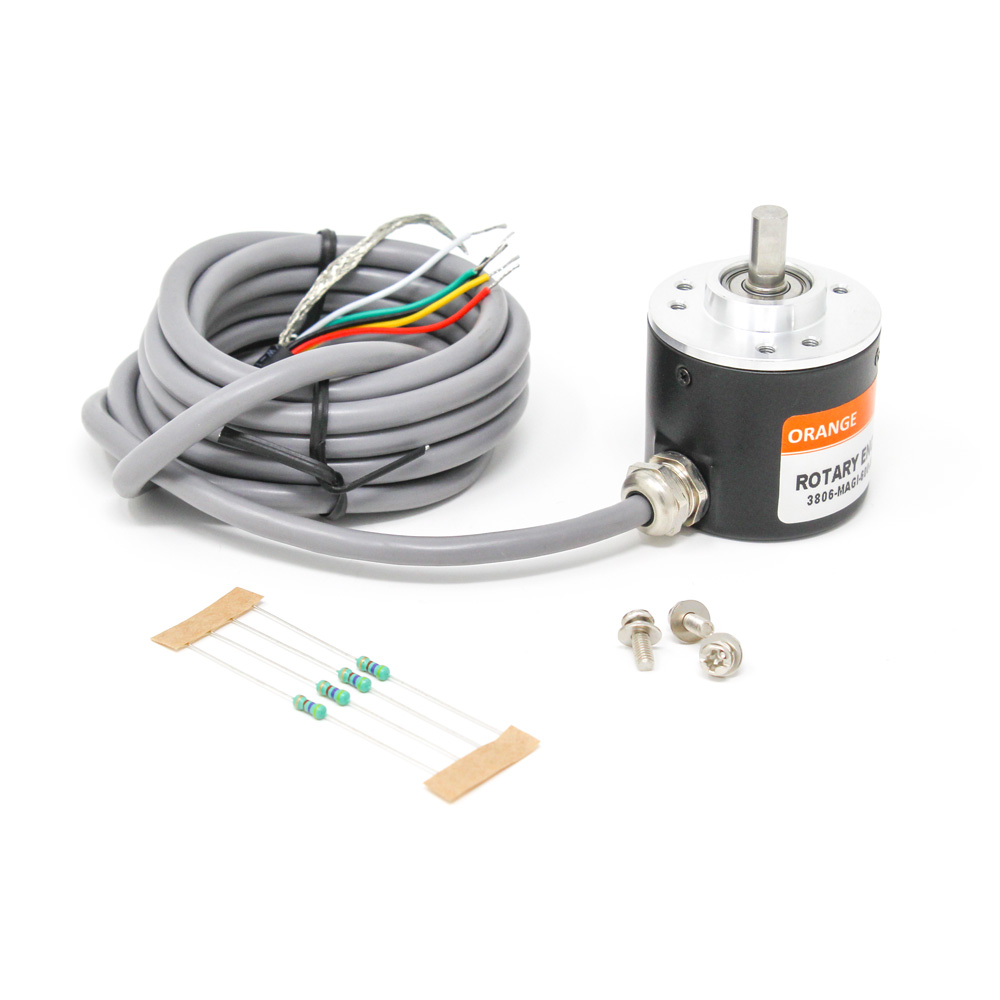

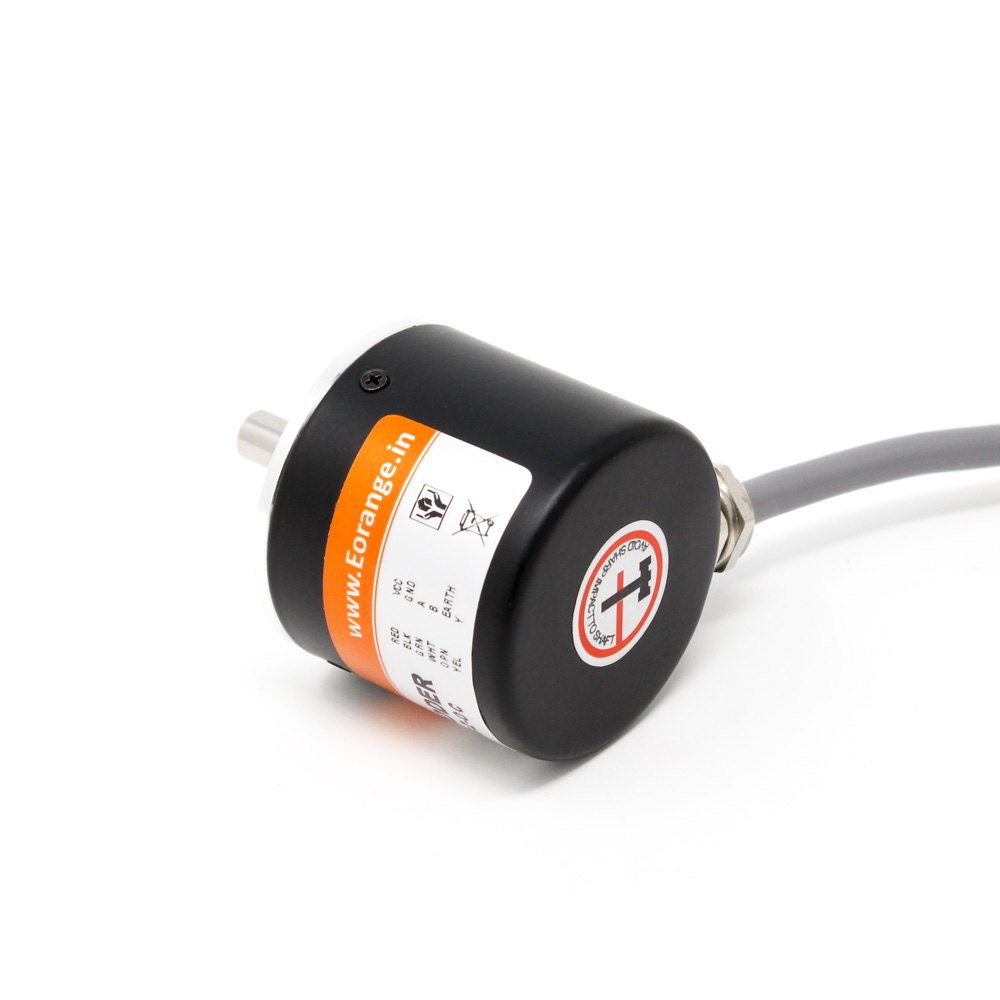

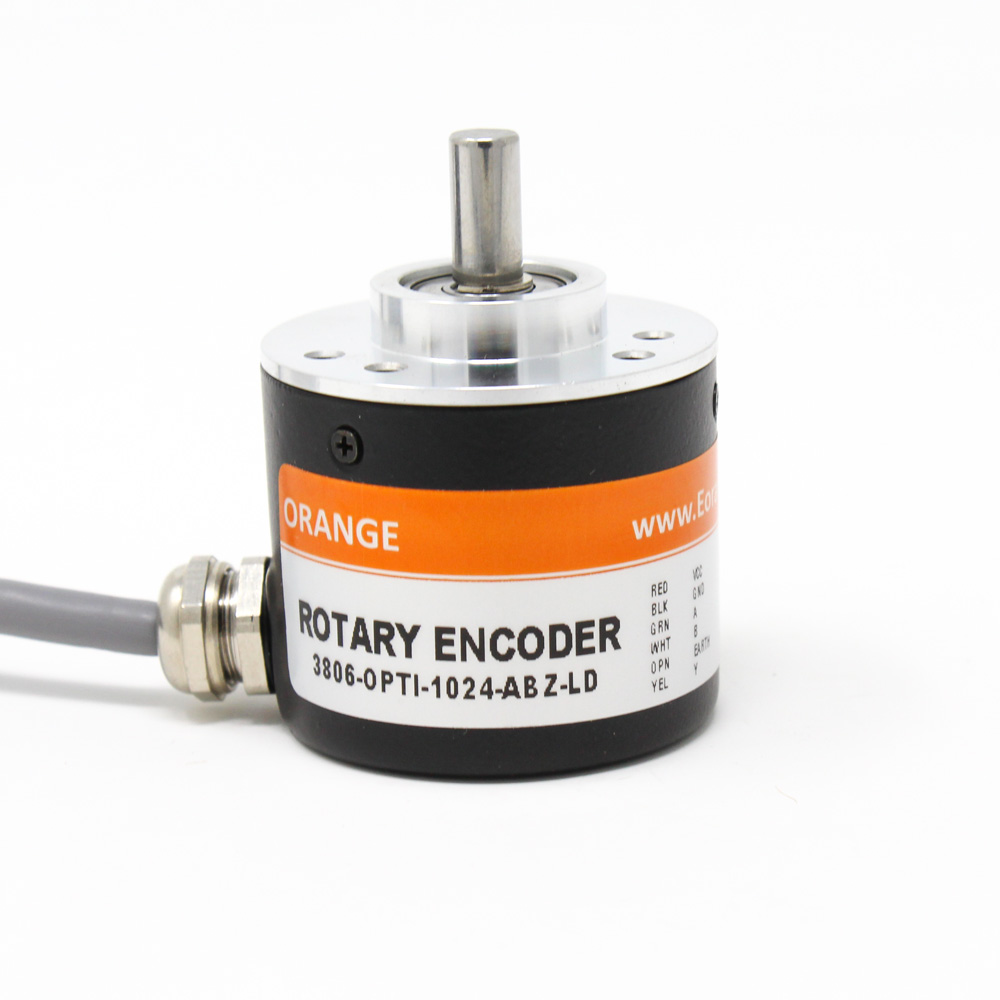

- 1024 PPR (4096 CPR) incremental optical encoder with A, B, and Z (index) phase NPN open-collector outputs.
- Wide 5-24V DC operating voltage range and IP54-rated housing for industrial durability.
- Includes 4x 4.7KΩ pull-up resistors and mounting hardware for reliable system integration.

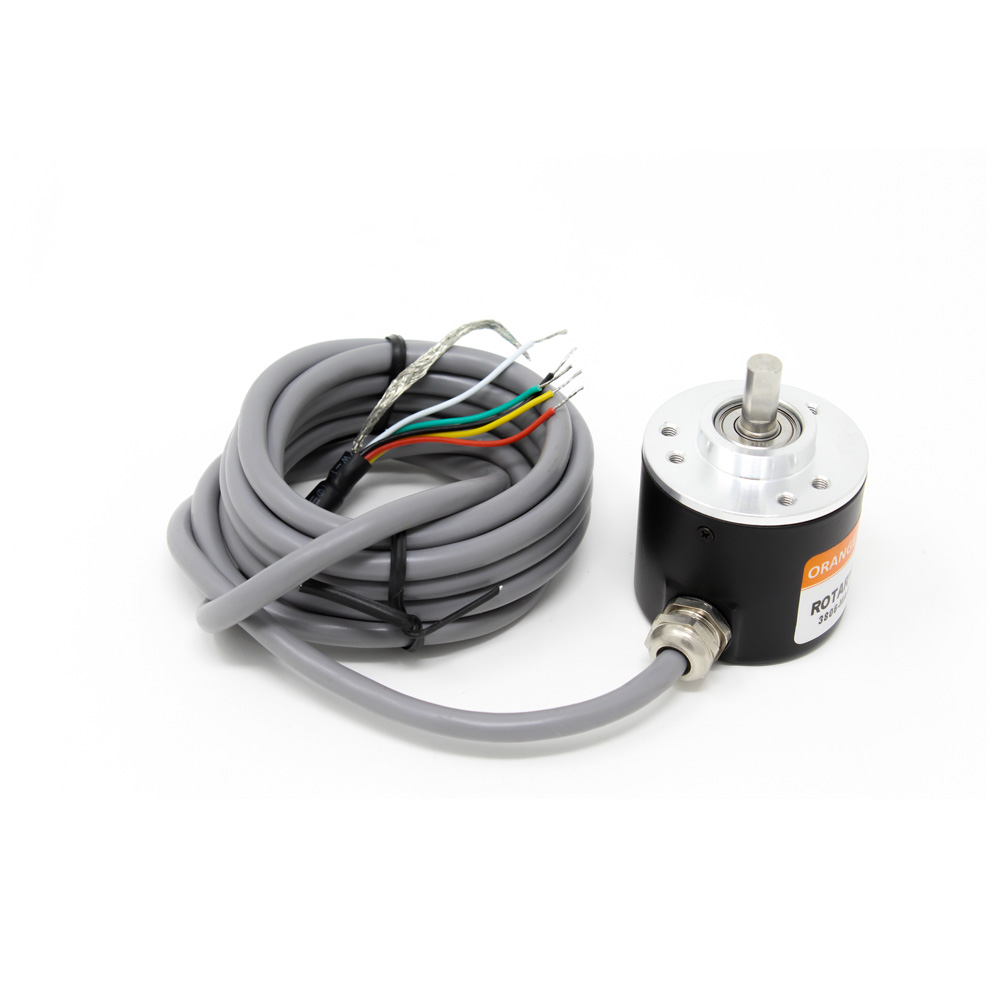

- Stainless steel D-type shaft (6mm diameter, 12mm length) and 2-meter shielded cable.
- High-speed rated operation up to 5000 RPM with robust anti-jamming performance.
Out of stock
This industrial-grade incremental optical encoder utilizes a high-resolution optical disc and ASIC-based signal conditioning to generate precise quadrature (A/B) and index (Z) pulse trains. The NPN open-collector output stage requires external pull-up resistors, which are included, for reliable interfacing with PLCs, microcontrollers (Arduino, Raspberry Pi, STM32), and motion controllers.
Engineered for harsh environments, the encoder features an IP54-protected housing, a stainless steel shaft, and a shielded 2-meter cable to ensure signal integrity in high-EMI industrial settings. Its compact form factor and M3 mounting holes facilitate easy integration into servo motors, conveyor systems, and rotary measurement assemblies.
Additional Information
| Weight | 0.16 kg |
|---|---|
| Dimensions | 4 × 4 × 3.84 cm |
