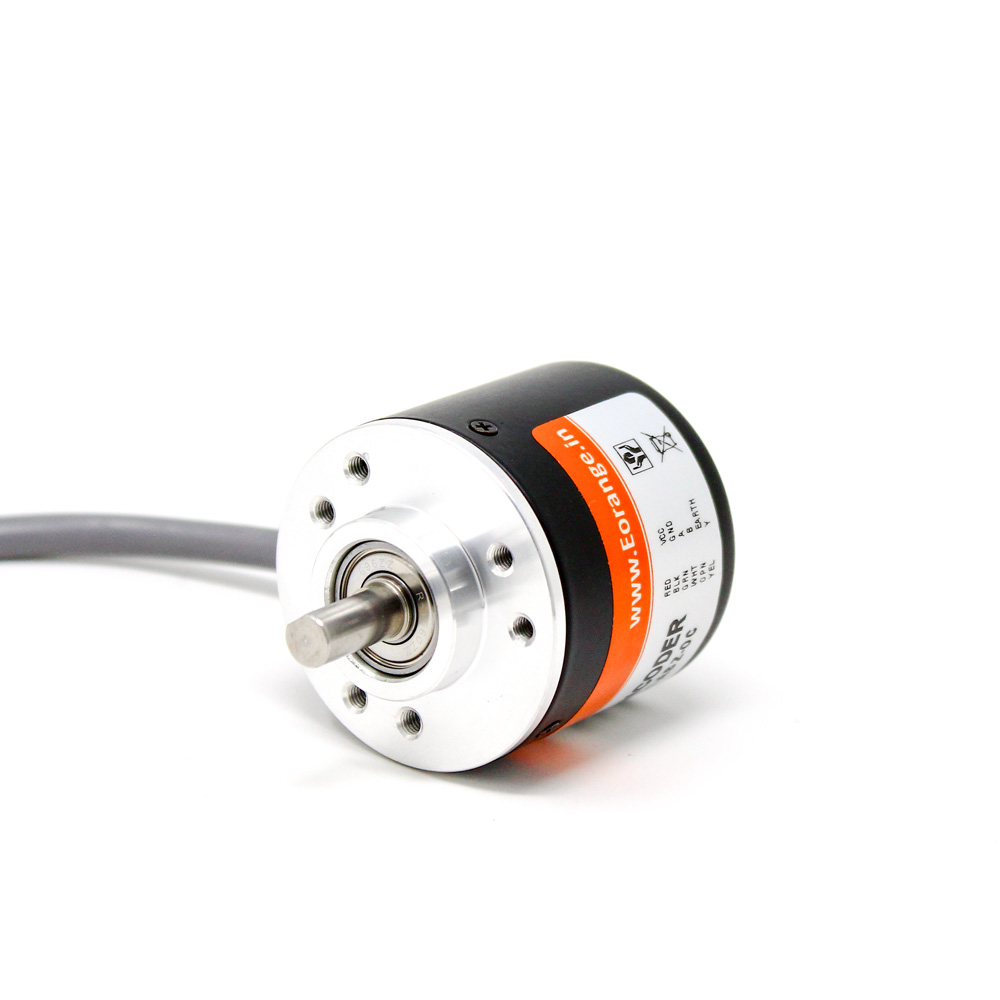

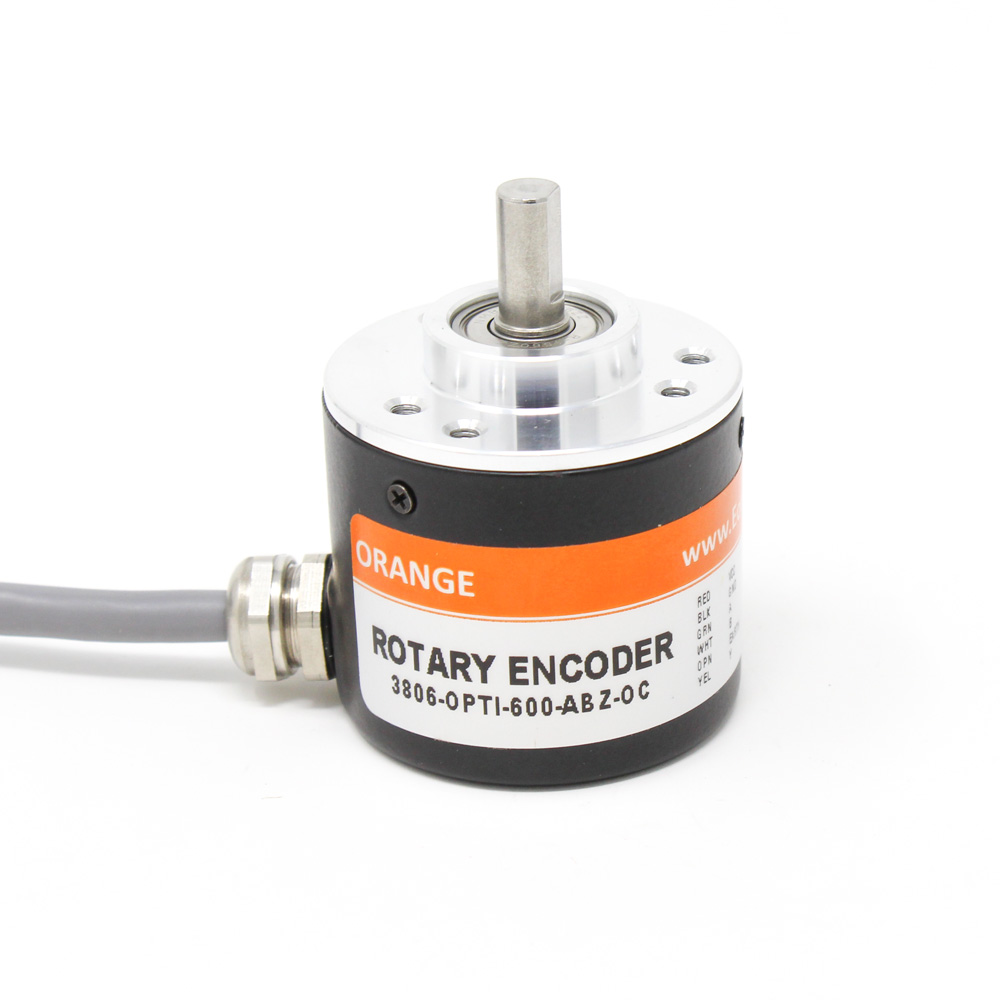

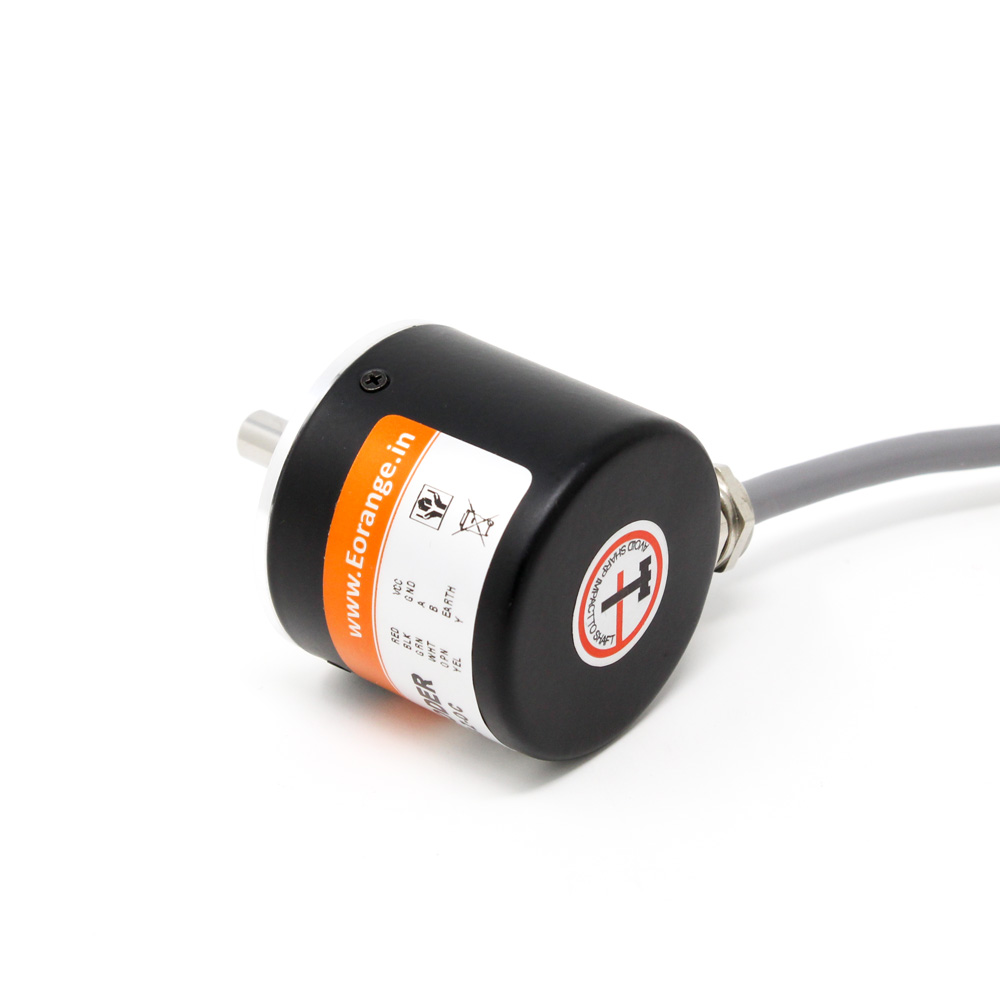

OrangeRX 600 PPR ABZ 3-Phase Optical Rotary Encoder with IP54, 2m Cable & Pull-Up Resistors

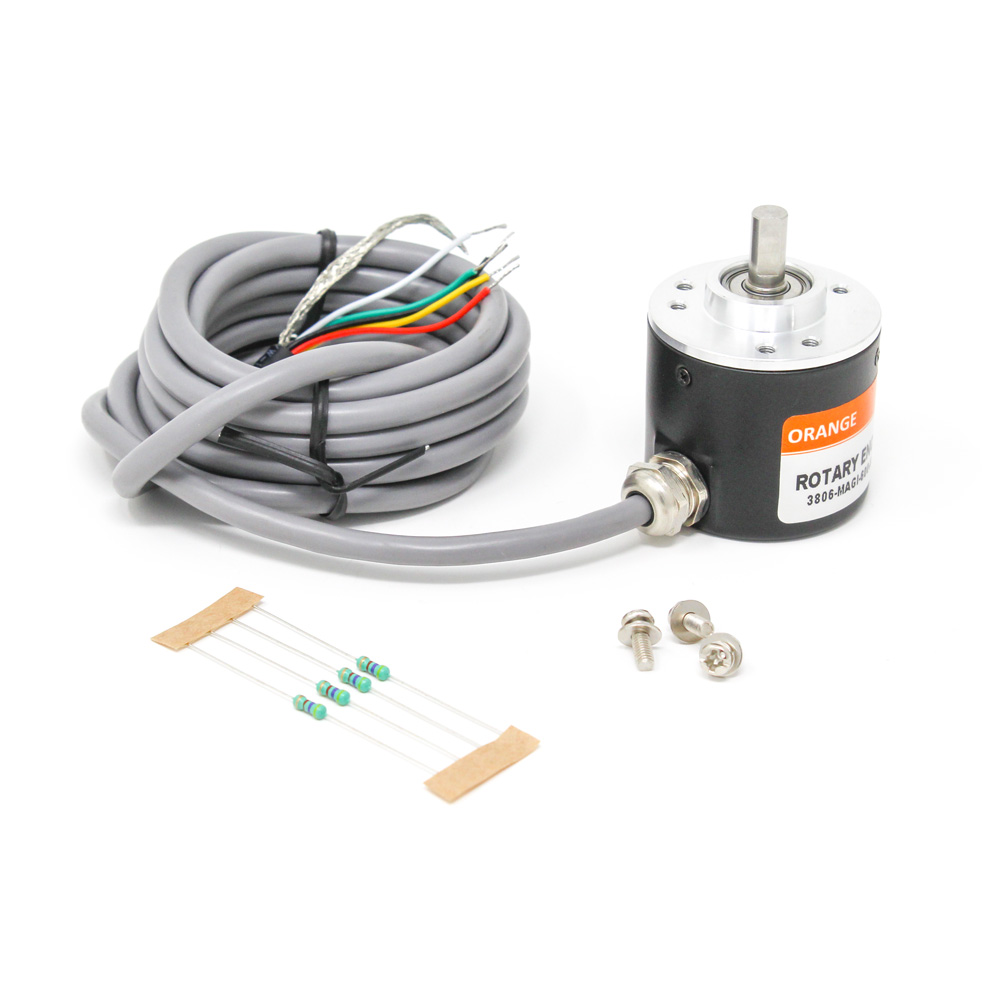

The included 4.7KΩ resistors are pull-up resistors required for the encoder's NPN open-collector outputs. They must be connected between the output lines (A, B, Z) and the positive supply voltage (VCC). This configuration ensures a stable high-logic level when the output transistor is off, provides noise immunity, and protects the internal output transistor from potential damage.

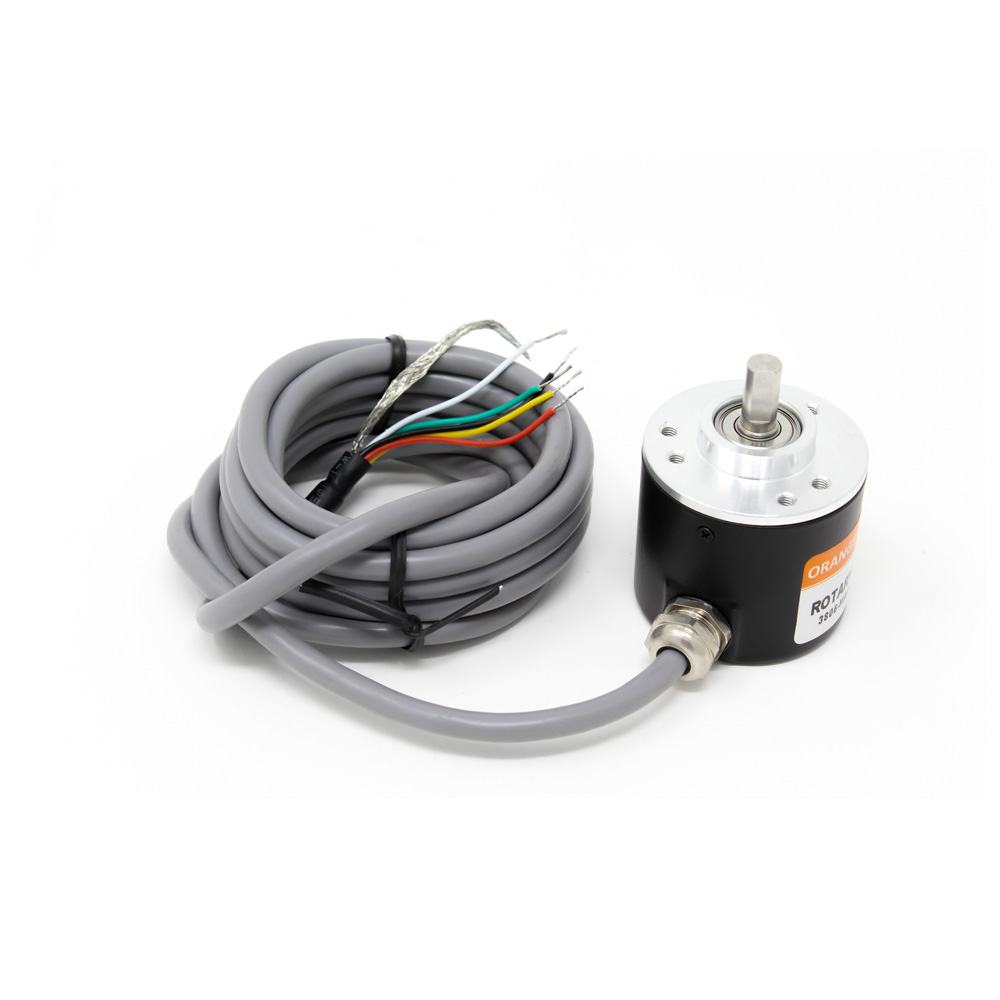

Connect the encoder's Red wire to your 5V or 3.3V logic supply (staying within the 5-24V DC range), Black wire to GND, and the Shield drain wire to earth ground. Connect the White (A), Green (B), and Yellow (Z) output wires to digital input pins on your MCU, each through a 4.7KΩ pull-up resistor to VCC. Use interrupt-capable pins for A and B to accurately count pulses at high speeds.

PPR (Pulses Per Revolution) refers to the physical pulses generated per sensor revolution—600 in this model. CPR (Counts Per Revolution) is the resolution after quadrature decoding. Since the A and B channels are 90 degrees out of phase, a quadrature decoder can count both the rising and falling edges of both channels, yielding 4x the PPR, or 2400 CPR, for higher positional precision.

Yes, the encoder's IP54 rating signifies protection against dust ingress (level 5) and water splashes from any direction (level 4). It is suitable for industrial environments with moderate dust and non-jetting water exposure. It is not submersible or suitable for high-pressure washdown (IP65/IP67). Ensure cable connections are properly sealed for maximum environmental protection.
