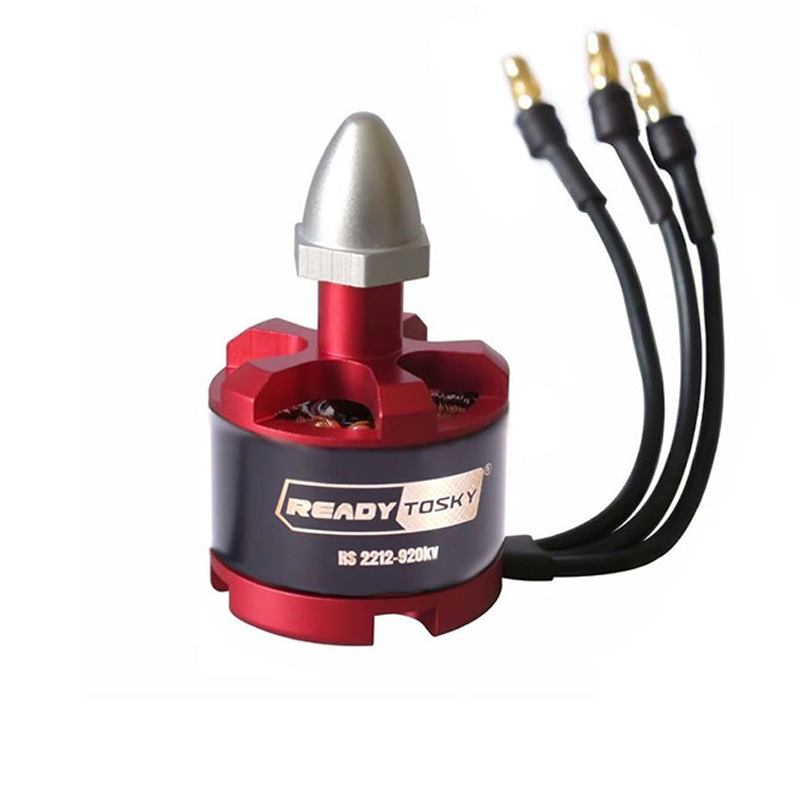

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation)

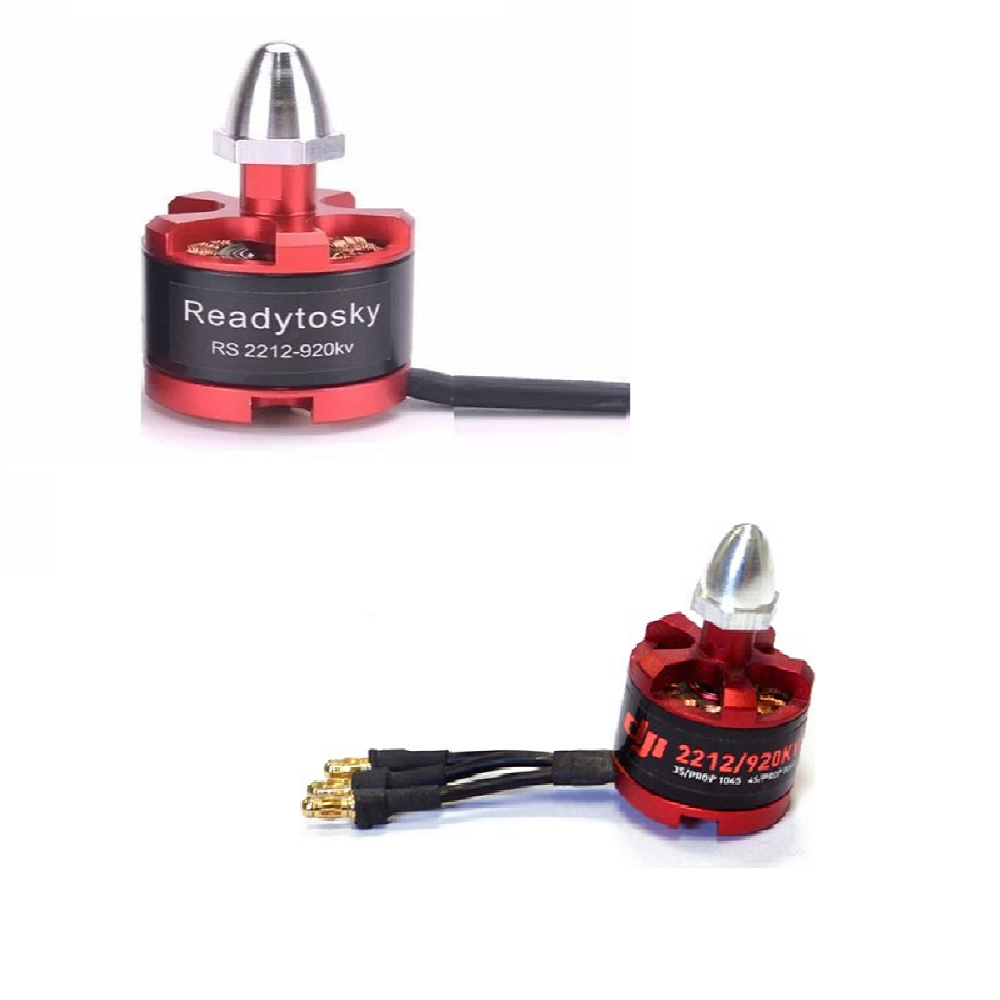

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation) - Image 2

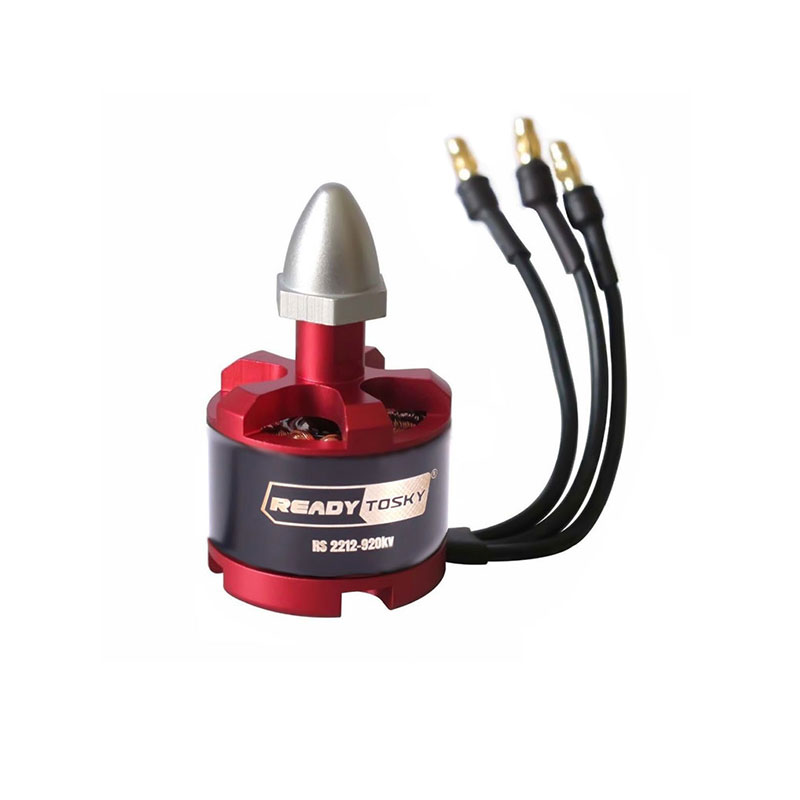

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation) - Image 3

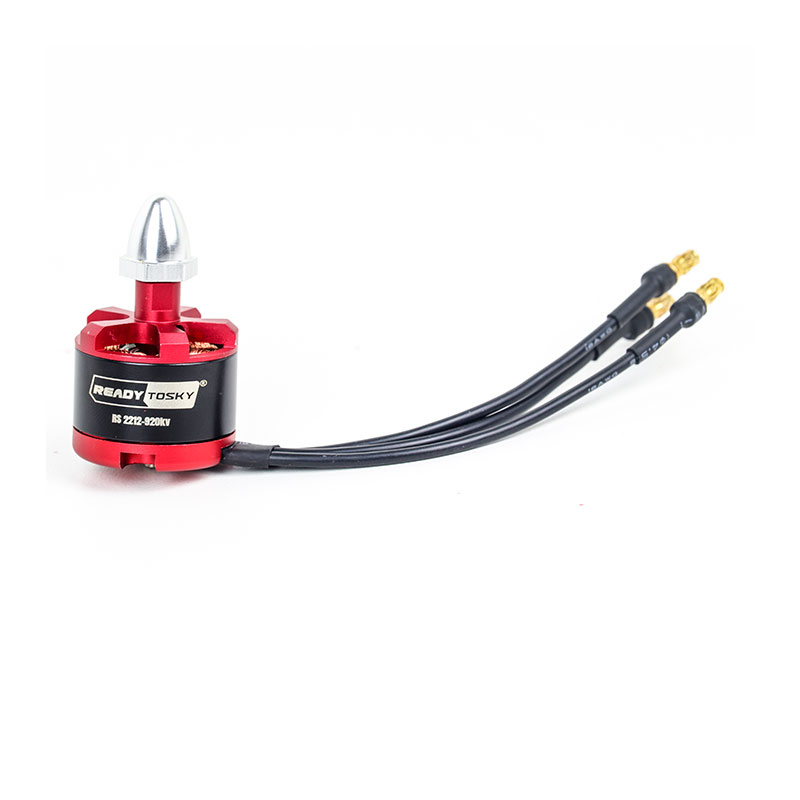

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation) - Image 4

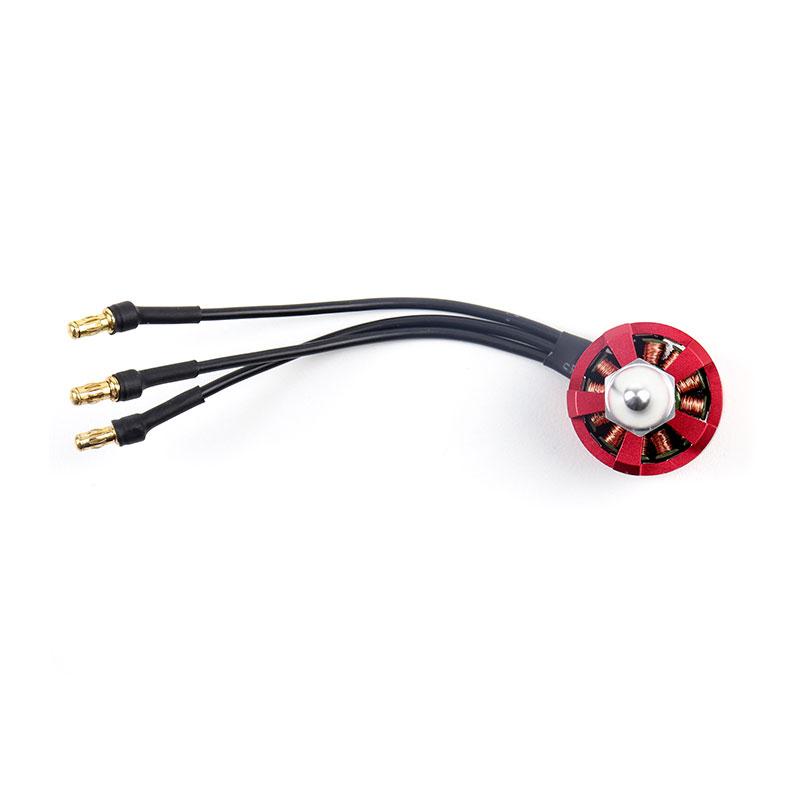

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation) - Image 5
ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation) - Image 6
SKU: DRFC-2928
📋 GST Invoice Available

ReadyToSky 2212 920KV Brushless DC Motor for DJI Silver Cap (CCW Motor Rotation)

₹1,069.00 (Inclusive of all taxes)
Out of Stock

The ReadyToSky 2212 920KV brushless motor is a CCW-rotation motor designed for compatibility with DJI-style multirotor builds, operating on 3S-4S LiPo voltages (7-12V) and paired with a 30A ESC for stable, long-range flight performance.

Features

  • 920KV brushless motor optimized for 3S-4S (7-12V) LiPo battery systems.
  • Counter-Clockwise (CCW) rotation for standard multirotor configurations.
  • Delivers approximately 500 grams of maximum thrust per motor.
  • Requires a 30A Electronic Speed Controller (ESC) for proper operation.
  • Features a 6mm shaft diameter and compact 28x28mm stator dimensions.

Out of stock

Description

The ReadyToSky 2212 920KV brushless motor is engineered for reliability in long-range and endurance-focused multirotor applications. Its 2212 stator size (22mm diameter, 12mm height) provides a balanced torque-to-weight ratio, making it suitable for carrying payloads or extended flight times on 3S to 4S LiPo packs.

Constructed with durable materials, this motor is built to withstand the operational demands of aerial photography and general drone use. The CCW rotation direction integrates seamlessly into standard quadcopter and hexacopter builds, particularly those following DJI-style frame layouts. Its 6mm shaft ensures secure propeller mounting for consistent thrust delivery.

Key Features

  • Endurance-Optimized KV: 920KV rating provides efficient RPM per volt for extended flight times on 3S-4S LiPo batteries.
  • Robust Mechanical Design: Stator construction and bearing assembly are built to handle continuous operation and moderate loads.
  • DJI Compatibility: Physical mounting pattern and shaft design are tailored for integration with DJI-style frames and propulsion systems.
  • Precision Balanced: Factory-balanced components help minimize vibration for smoother flight and clearer aerial footage.
  • Thermal Management: Efficient design aids in heat dissipation during sustained high-thrust scenarios.

Applications

  • Long-range and endurance-focused quadcopter or hexacopter builds.
  • DJI-style frame upgrades or replacement motor installations.
  • Aerial photography and videography platforms requiring stable, efficient thrust.
  • Educational or DIY multirotor projects operating on 3S-4S power systems.

Technical Specifications

Motor KV920 RPM/V
Motor TypeBrushless Outrunner
Rotation DirectionCCW (Counter-Clockwise)
Stator Size2212 (22mm Diameter x 12mm Height)
Maximum ThrustApprox. 500 grams
Rated Voltage7V - 12V (3S-4S LiPo)
Recommended ESC30A
Shaft Diameter6 mm
Motor Dimensions (WxL)28 mm x 28 mm
Weight56 grams

Frequently Asked Questions

What is the compatible voltage range for this 2212 920KV motor?

This motor is rated for 7V to 12V, which corresponds to standard 3S (11.1V) and 4S (14.8V) LiPo batteries. Operating within this range ensures optimal performance and motor longevity. Exceeding 12V is not recommended.

What size ESC is required to run this motor?

A 30A Electronic Speed Controller (ESC) is the recommended minimum for safe and reliable operation with this 2212 920KV motor. Ensure the ESC firmware (e.g., BLHeli_S, BLHeli_32) is compatible with your flight controller and supports the motor's KV and intended voltage.

Can I use this CCW motor on all arms of my quadcopter?

No, this is a Counter-Clockwise (CCW) rotation motor only. A standard quadcopter requires two CCW and two Clockwise (CW) motors to achieve yaw control. You must pair this motor with a matching CW-rotation motor of the same KV and size for a complete set.

What is the shaft diameter and what propellers fit it?

The motor features a 6mm diameter shaft. You will need propellers with a corresponding 6mm bore hub. Many 9-inch to 10-inch slow-fly or MR-style propellers designed for similar 2212 motors are compatible. Always use a proper propeller adapter or collet for secure mounting.

Package Includes

  • 1 x ReadyToSky 2212 920KV Brushless Motor (CCW Rotation)
  • 1 x Silver Motor Cap

Additional Information

Weight 0.056 kg
Dimensions 2.8 × 2.8 cm
