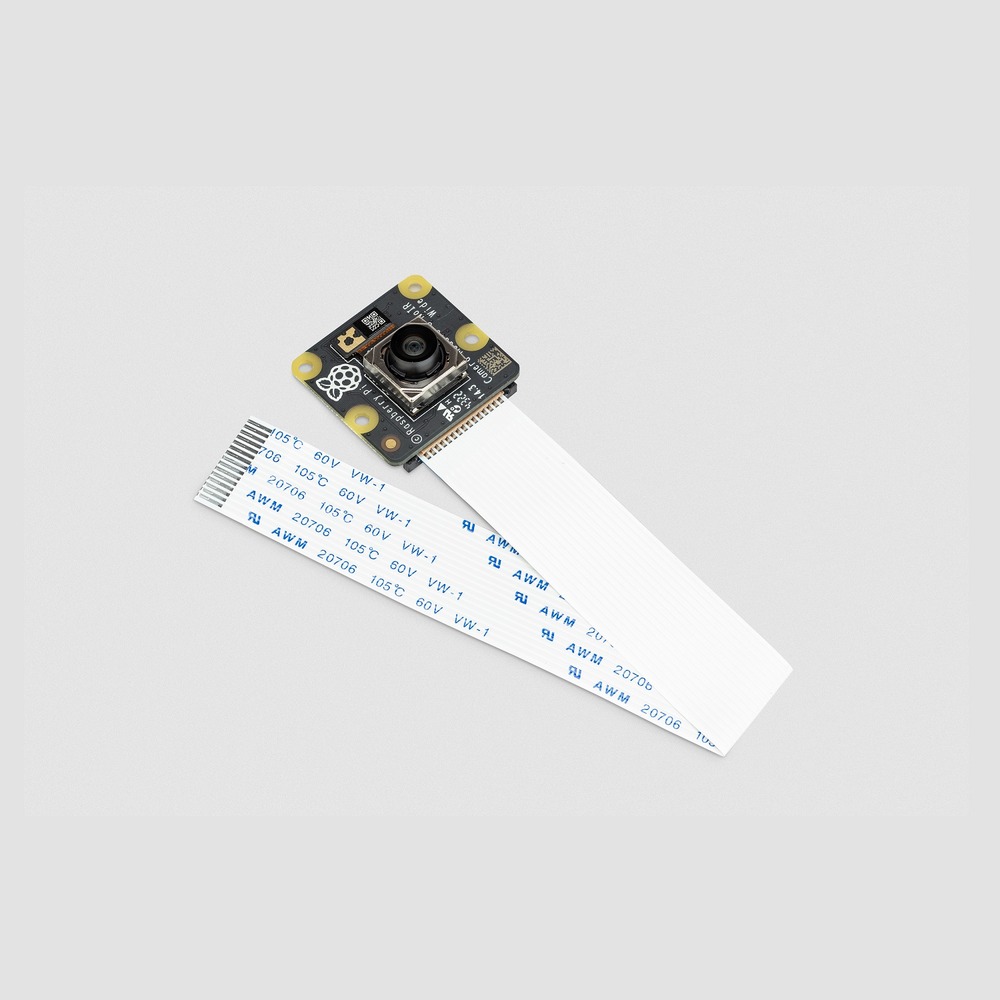

Raspberry Pi Camera Module 3 NoIR Wide

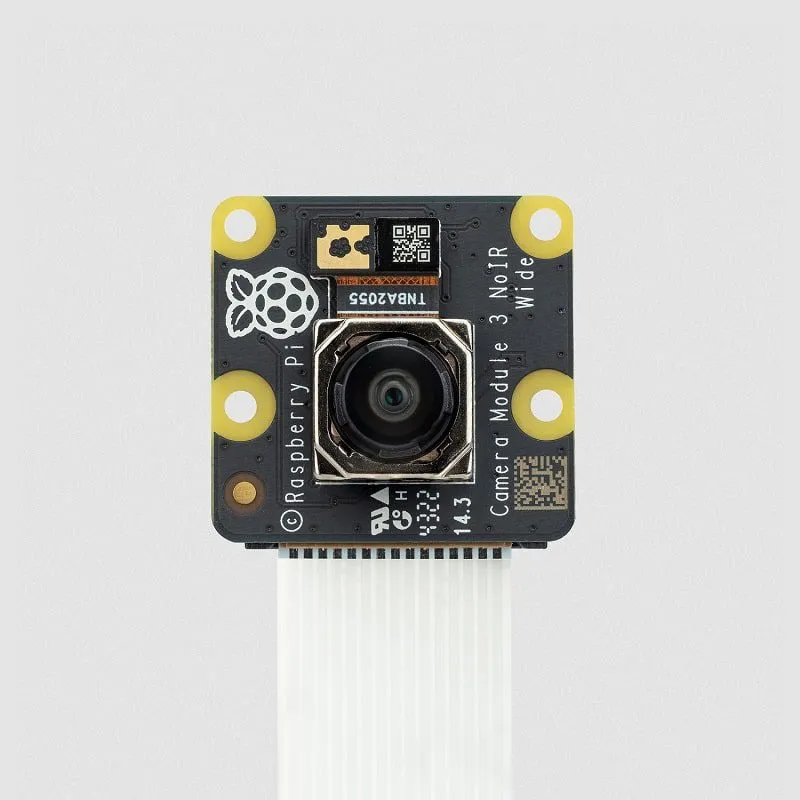

Raspberry Pi Camera Module 3 NoIR Wide - Image 2

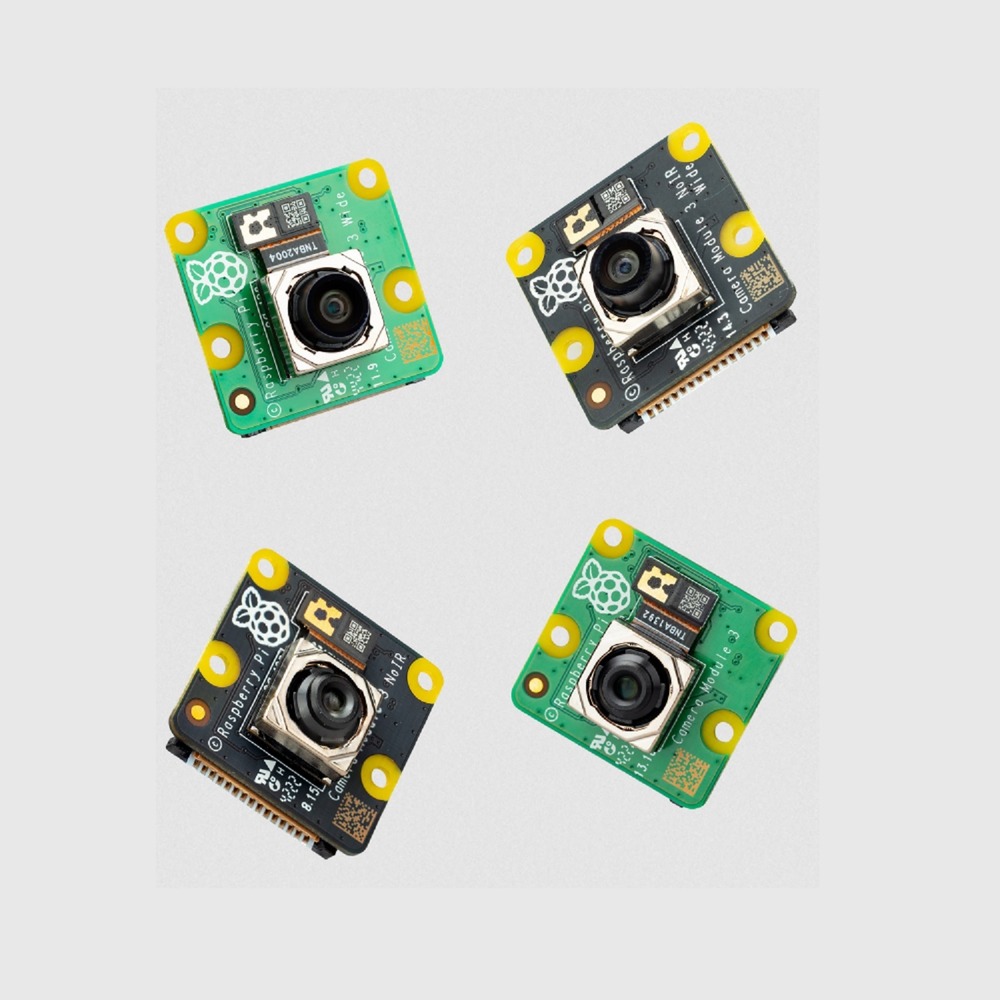

Raspberry Pi Camera Module 3 NoIR Wide - Image 3
SKU: SBCD-0959
📋 GST Invoice Available

Raspberry Pi Camera Module 3 NoIR Wide

₹4,459.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi Camera Module 3 NoIR Wide features a 12MP Sony IMX708 sensor with powered autofocus and a wide 120º viewing angle, ideal for low-light or night vision applications with Raspberry Pi computers.

Features

  • High-resolution 12MP Sony IMX708 sensor with improved low-light sensitivity.
  • Integrated Phase Detection Autofocus (PDAF) ensures crisp, sharp images.
  • Wide 120º diagonal viewing angle captures a broader field of view.
  • NoIR (No Infrared filter) variant enables night vision when paired with external IR illumination.
  • Seamless compatibility with all Raspberry Pi models, with an adapter cable for Zero series.

Out of stock

Description

The Raspberry Pi Camera Module 3 NoIR Wide is the highly anticipated successor to the Camera Module 2, bringing significant upgrades to the Raspberry Pi mainstream camera lineup. This module is built around a sophisticated 12-megapixel Sony IMX708 image sensor, offering superior image quality and advanced features for a wide range of imaging projects.

Key enhancements include a robust powered autofocus system, utilizing Phase Detection Autofocus (PDAF) for rapid and precise focusing. The ‘NoIR’ designation indicates the absence of an infrared filter, allowing the camera to be highly sensitive to infrared light, making it perfect for night vision, surveillance, or scientific applications when combined with appropriate IR illuminators. With its 120° wide-angle lens, it captures a more expansive scene compared to standard variants, providing greater situational awareness or artistic scope.

Developers and makers can leverage the powerful Picamera2 Python library to harness the full potential of the Camera Module 3, gaining precise control over its imaging parameters. Its high dynamic range (HDR) support and improved low-light sensitivity further extend its versatility, making it a powerful tool for embedded vision projects across various environments.

Key Features

  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708).
  • High signal-to-noise ratio (SNR) for cleaner images.
  • Built-in 2D Dynamic Defect Pixel Correction (DPC).
  • Phase Detection Autofocus (PDAF) for rapid and accurate focus acquisition.
  • QBC Re-mosaic function for enhanced image processing.
  • HDR mode for high dynamic range capture (up to 3-megapixel output).
  • CSI-2 serial data output for high-speed data transfer.
  • 2-wire serial communication (I2C fast mode and fast-mode plus supported).
  • 2-wire serial control for the focus mechanism.
  • Improved low-light sensitivity for challenging lighting conditions.
  • Large 7.4mm diagonal sensor with 1.4μm × 1.4μm pixel size.
  • Diagonal Viewing Angle: 120º (Wide variant).

Applications

  • Night vision and low-light photography.
  • Security and surveillance systems.
  • Wildlife monitoring and observation.
  • Custom embedded imaging projects.
  • Robotics vision for navigation in dark environments.
  • Scientific imaging requiring IR sensitivity.

Technical Specifications

Item TypeCamera
CompatibilityAll models of Raspberry Pi (special cable for Zero models)
Model No. / NameCamera Module 3 (NoIR-Wide)
SensorSONY IMX708
Resolution11.9 Megapixel (4608 × 2592 pixels)
Sensor Size7.4mm sensor diagonal
Pixel Size1.4μm × 1.4μm
Viewing Angle120º (Diagonal)
Common Video Modes1080p50, 720p100, 480p120
OutputRAW10
IR Cut FilterNot present (NoIR variant)
Autofocus SystemPhase Detection Autofocus
Dimensions (L x W x H)25 × 24 × 12.4mm (for Wide variants)
Cable Length200 mm
Connector Type15 × 1mm FPC

Frequently Asked Questions

What is the primary difference between the NoIR and standard variants of Camera Module 3?

The NoIR (No Infrared) variant lacks an infrared cut filter, making it sensitive to infrared light. This allows it to capture images in complete darkness when used with an external IR illuminator, unlike the standard variant which filters out IR light for true-color images in daylight conditions.

Is the Raspberry Pi Camera Module 3 NoIR Wide compatible with all Raspberry Pi boards?

Yes, it is compatible with all models of Raspberry Pi boards, including the Raspberry Pi Zero series. However, Raspberry Pi Zero models require a specific, shorter camera cable to connect due to their smaller CSI connector footprint. Standard Raspberry Pi models use the common 22-pin CSI cable.

How does the autofocus feature work on the Camera Module 3?

The Camera Module 3 utilizes Phase Detection Autofocus (PDAF) technology, integrated directly into the Sony IMX708 sensor. This system rapidly analyzes phase differences in light entering the lens to determine precise focus adjustments, offering faster and more accurate focusing compared to older contrast-detection methods, ensuring sharp images automatically.

What improvements does Camera Module 3 offer over its predecessor, Camera Module 2?

The Camera Module 3 features a significantly upgraded 12-megapixel Sony IMX708 sensor, compared to the 8MP IMX219 in Camera Module 2. It also introduces powered autofocus, improved low-light sensitivity, High Dynamic Range (HDR) support, and a higher signal-to-noise ratio, providing superior image quality and versatility.

Which software library is recommended for programming the Raspberry Pi Camera Module 3?

The recommended software library for the Camera Module 3 is Picamera2, a comprehensive and well-supported Python library provided by Raspberry Pi. It offers extensive control over camera features, including autofocus, exposure, white balance, and various imaging modes, making it ideal for both simple and advanced camera applications.

Package Includes

  • 1 x Raspberry Pi Camera Module 3 NoIR - Wide

Additional Information

Weight 0.03 kg
Dimensions 2.5 × 2.4 × 1.24 cm
