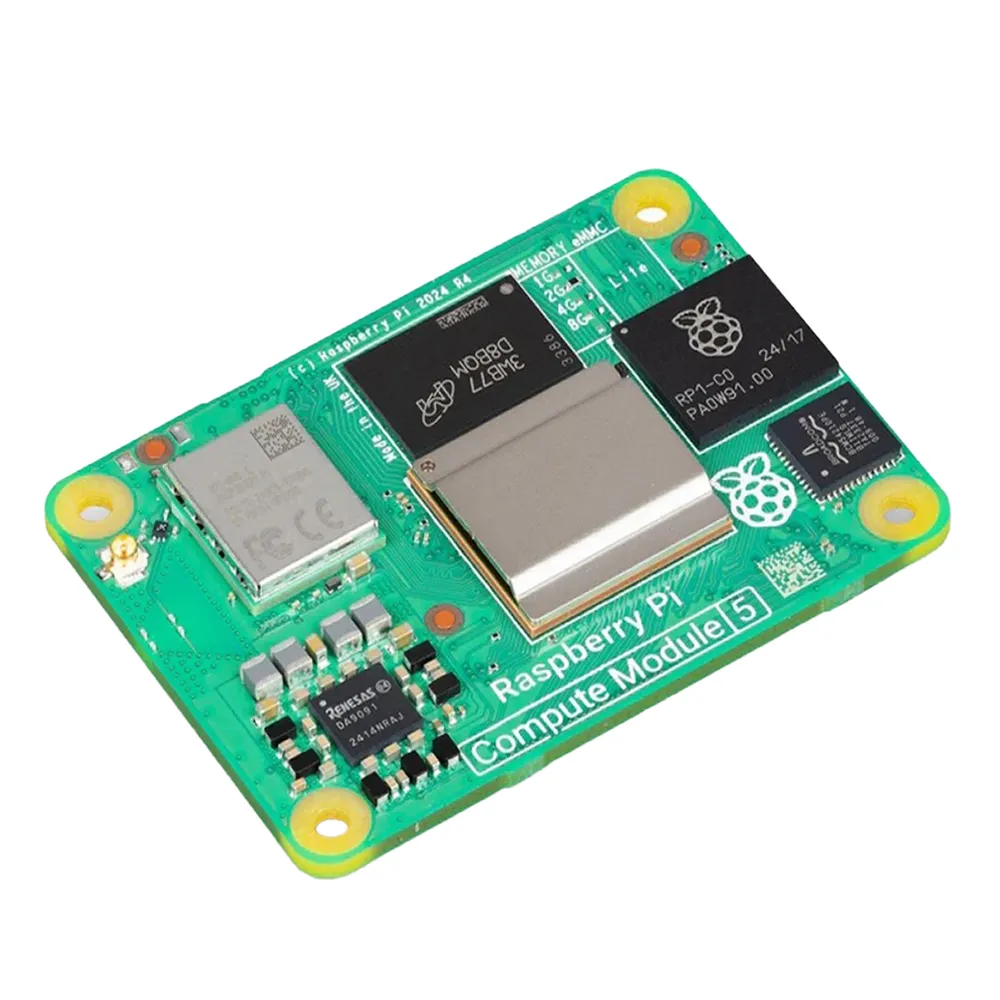

Raspberry Pi CM5 - 2GB RAM, 16GB eMMC, Wi-Fi/BT 5.0
The Raspberry Pi Compute Module 5 (CM5) is a powerful system-on-module that integrates the core capabilities of Raspberry Pi 5 into a compact form factor for embedded designs. Featuring a quad-core Arm Cortex-A76 processor, 2GB LPDDR4 RAM, 16GB eMMC, and dual-band Wi-Fi with Bluetooth 5.0, it offers robust performance and connectivity for industrial and commercial applications.
Features
- Integrates Raspberry Pi 5’s quad-core Arm Cortex-A76 processor for high performance.
- Equipped with 2GB LPDDR4-4267 SDRAM and 16GB eMMC flash storage.
- Features dual-band (2.4/5.0GHz) Wi-Fi and Bluetooth 5.0 for robust wireless connectivity.
- Designed for embedded applications, offering flexibility for custom system integration.
- Supports a wide range of I/O, including USB 3.0, PCIe Gen 2 x1, and 30 GPIOs.
Out of stock
The Raspberry Pi Compute Module 5 (CM5) with 2GB RAM, 16GB eMMC, and integrated 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 delivers the formidable processing power of the Raspberry Pi 5 in a compact, system-on-module form factor. This makes it an ideal solution for deeply embedded applications where space and custom integration are critical. At its core, the CM5 features a quad-core Arm Cortex-A76 processor operating at 2.4GHz, ensuring robust performance for demanding industrial, commercial, and IoT solutions.
Leveraging the robust hardware and optimized software stack of Raspberry Pi 5, the CM5 provides extensive I/O interfaces, including USB 3.0, USB 2.0, and PCIe Gen 2 x1, alongside up to 30 GPIO pins. Multimedia capabilities include dual 4Kp60 HDMI output, 4K HEVC decode, and Vulkan 1.2 support, making it suitable for display-rich applications. With its wide operating temperature range and optional certified wireless module, the CM5 offers significant flexibility and a broader range of options for product and application design compared to its predecessors.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 7 × 4 × 2 cm |
