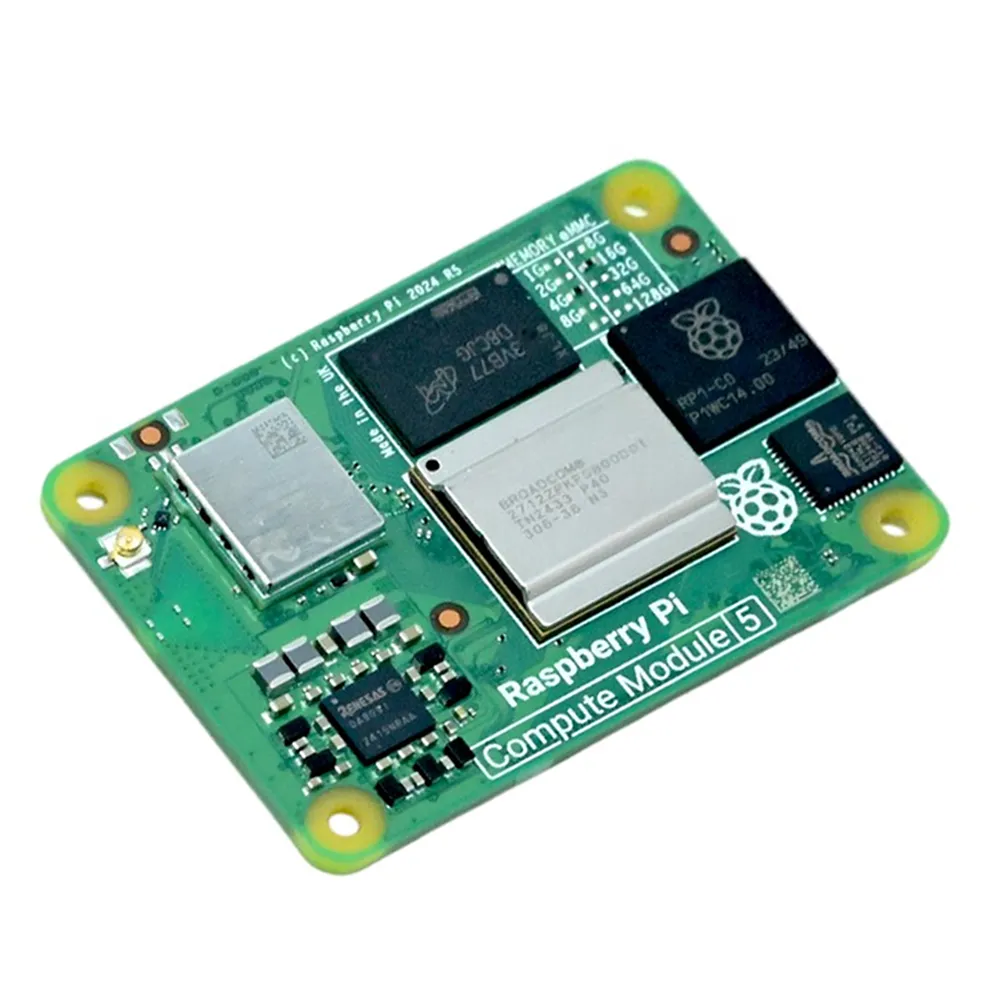

Raspberry Pi CM5 4GB RAM 16GB eMMC Wi-Fi BT5.0

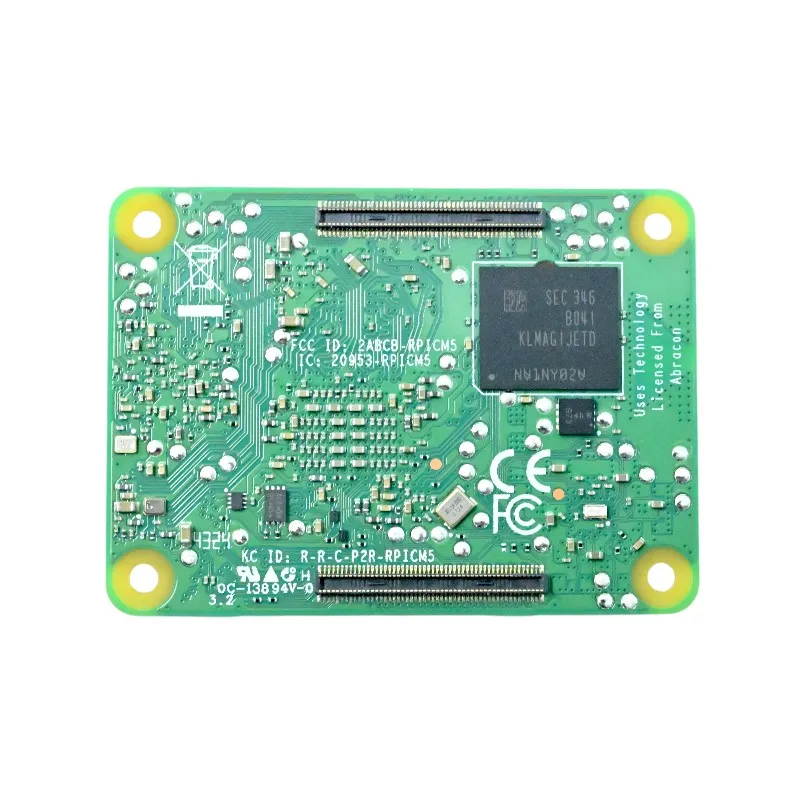

Raspberry Pi CM5 4GB RAM 16GB eMMC Wi-Fi BT5.0 - Image 2

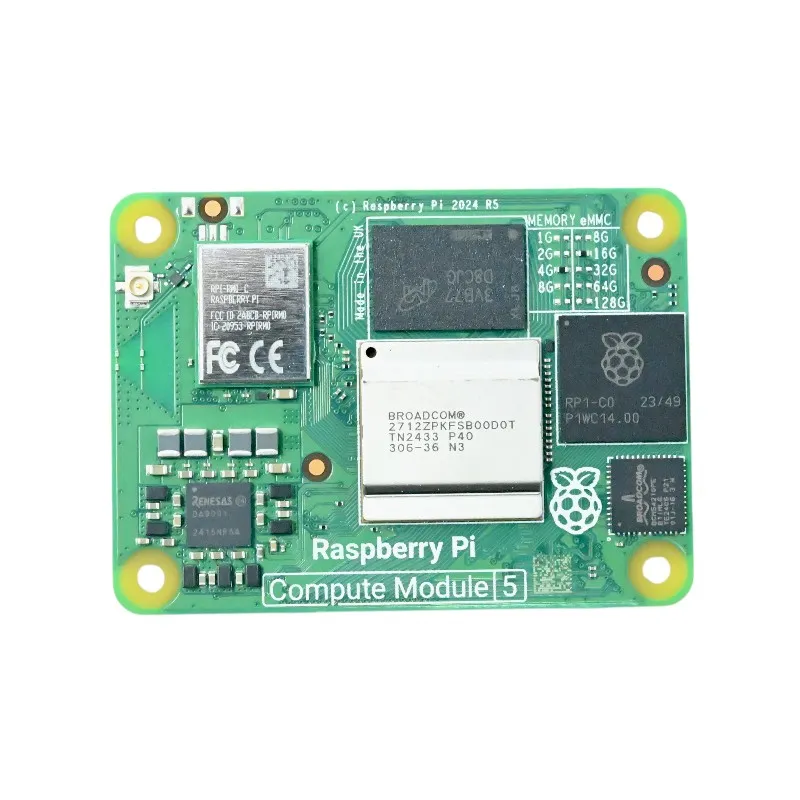

Raspberry Pi CM5 4GB RAM 16GB eMMC Wi-Fi BT5.0 - Image 3
SKU: SBCD-0895
📋 GST Invoice Available

Raspberry Pi CM5 4GB RAM 16GB eMMC Wi-Fi BT5.0

₹15,789.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi Compute Module 5 (CM5) integrates Raspberry Pi 5 technology into a compact, modular form factor, featuring 4GB RAM, 16GB eMMC storage, and dual-band Wi-Fi with Bluetooth 5.0 for advanced embedded and IoT applications.

Features

  • Powered by advanced Raspberry Pi 5 architecture for high performance.
  • Integrated 4GB LPDDR4X RAM and 16GB eMMC for robust OS and data storage.
  • Features dual-band 2.4/5.0GHz Wi-Fi and Bluetooth 5.0 for comprehensive wireless connectivity.
  • Compact, modular design optimized for industrial IoT and deeply embedded system integration.

Out of stock

Description

The Raspberry Pi Compute Module 5 (CM5104016) brings the powerful capabilities of the Raspberry Pi 5 into a compact, modular form factor designed for deeply embedded applications. This module leverages the advanced processor architecture of the Raspberry Pi 5, providing significant computational power in a space-optimized design.

Equipped with 4GB of LPDDR4X RAM and 16GB of high-speed eMMC storage, the CM5 offers a robust platform for operating systems and demanding application data. Its integrated dual-band 2.4/5.0GHz Wi-Fi and Bluetooth 5.0 ensure reliable and versatile wireless communication, enabling seamless integration into networked environments and connection to various peripherals. This makes the CM5 an excellent choice for a wide range of industrial, IoT, and robotics projects requiring a blend of performance, connectivity, and modularity.

Key Features

  • Compact module integrating the full performance capabilities of Raspberry Pi 5.
  • Flexible onboard 4GB LPDDR4X RAM and 16GB eMMC storage options for custom embedded solutions.
  • Integrated dual-band 2.4/5.0GHz Wi-Fi for robust wireless network connectivity.
  • Bluetooth 5.0 for advanced peripheral connections and low-power communication.
  • Optimized for deep integration into IoT, robotics, and industrial control systems.
  • Designed for long-term availability and stable production environments.

Applications

  • IoT gateways and edge computing devices
  • Industrial automation and control systems
  • Embedded vision and machine learning applications
  • Robotics and drone control systems
  • Custom human-machine interface (HMI) devices
  • Medical devices and instrumentation

Technical Specifications

Item TypeCompute Module 5
ProcessorRaspberry Pi 5 Architecture
RAM4GB LPDDR4X
eMMC Storage16GB
Wireless ConnectivityDual-band 2.4/5.0GHz Wi-Fi, Bluetooth 5.0

Frequently Asked Questions

What is the primary difference between the CM5 and a standard Raspberry Pi 5?

The CM5 offers the same core Raspberry Pi 5 processor but in a smaller, solderable form factor designed for deep embedding. It lacks standard ports like HDMI or USB-A, relying on a carrier board for I/O, making it suitable for custom industrial applications.

What are the storage options available on the Raspberry Pi Compute Module 5?

The CM5 comes with onboard eMMC flash storage, which is configurable at the time of order. This specific model includes 16GB eMMC, providing a reliable and fast storage solution for the operating system and application data, enhancing system robustness.

Can the Raspberry Pi Compute Module 5 be used with existing Compute Module 4 carrier boards?

No, the Raspberry Pi Compute Module 5 has a new form factor and pinout that is incompatible with CM4 carrier boards. It requires carrier boards specifically designed for the CM5 to function correctly and access its full range of features and I/O.

What wireless capabilities does the CM5 offer?

The CM5 integrates dual-band 2.4/5.0GHz Wi-Fi and Bluetooth 5.0. This robust wireless suite enables high-speed networking, secure device pairing, and versatile connectivity for IoT deployments and other embedded applications requiring reliable wireless communication.

What operating systems are supported by the Raspberry Pi Compute Module 5?

The Raspberry Pi Compute Module 5 supports the full range of Raspberry Pi OS distributions, including the latest Bookworm release. It is also compatible with other Linux distributions and operating systems that support the Raspberry Pi 5's ARM architecture, offering broad software flexibility.

Package Includes

  • 1x Raspberry Pi Compute Module 5 (CM5104016) with 4GB RAM, 16GB eMMC, Wi-Fi, and Bluetooth 5.0

Additional Information

Weight 0.2 kg
Dimensions 13 × 9 × 3 cm
