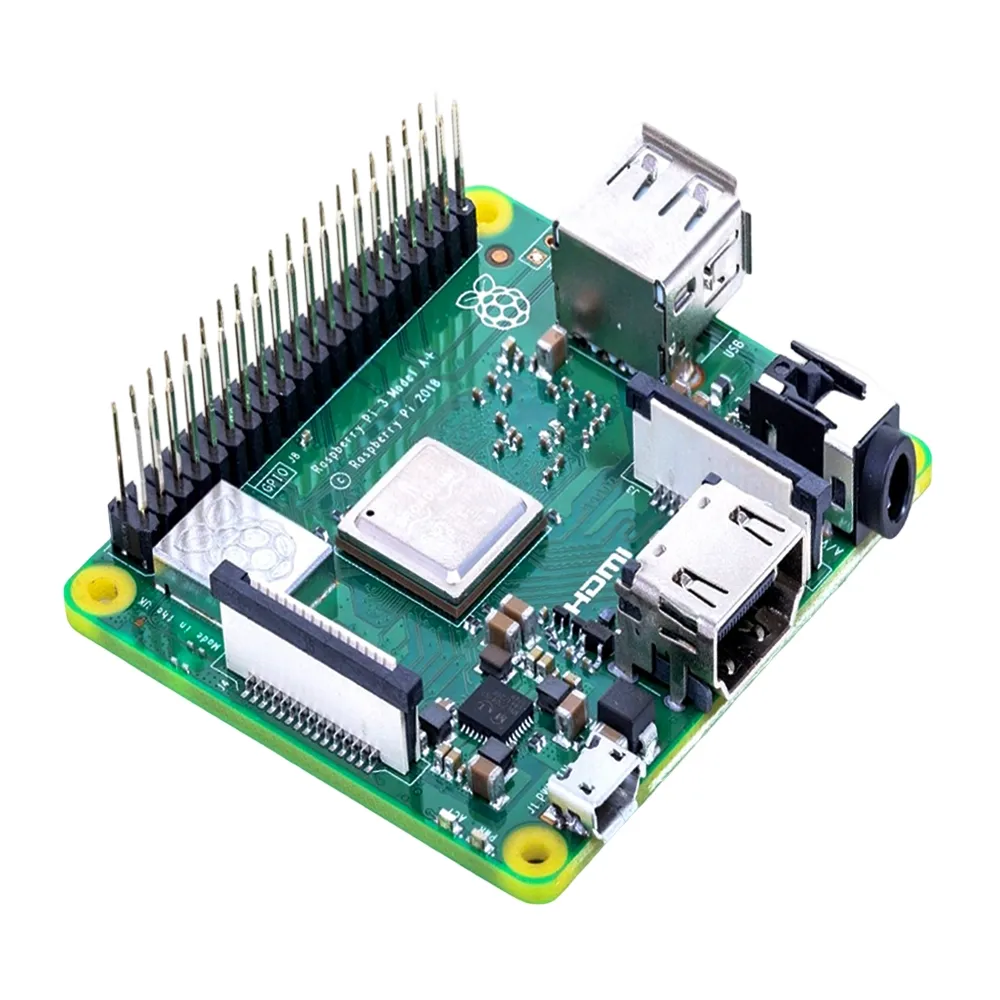

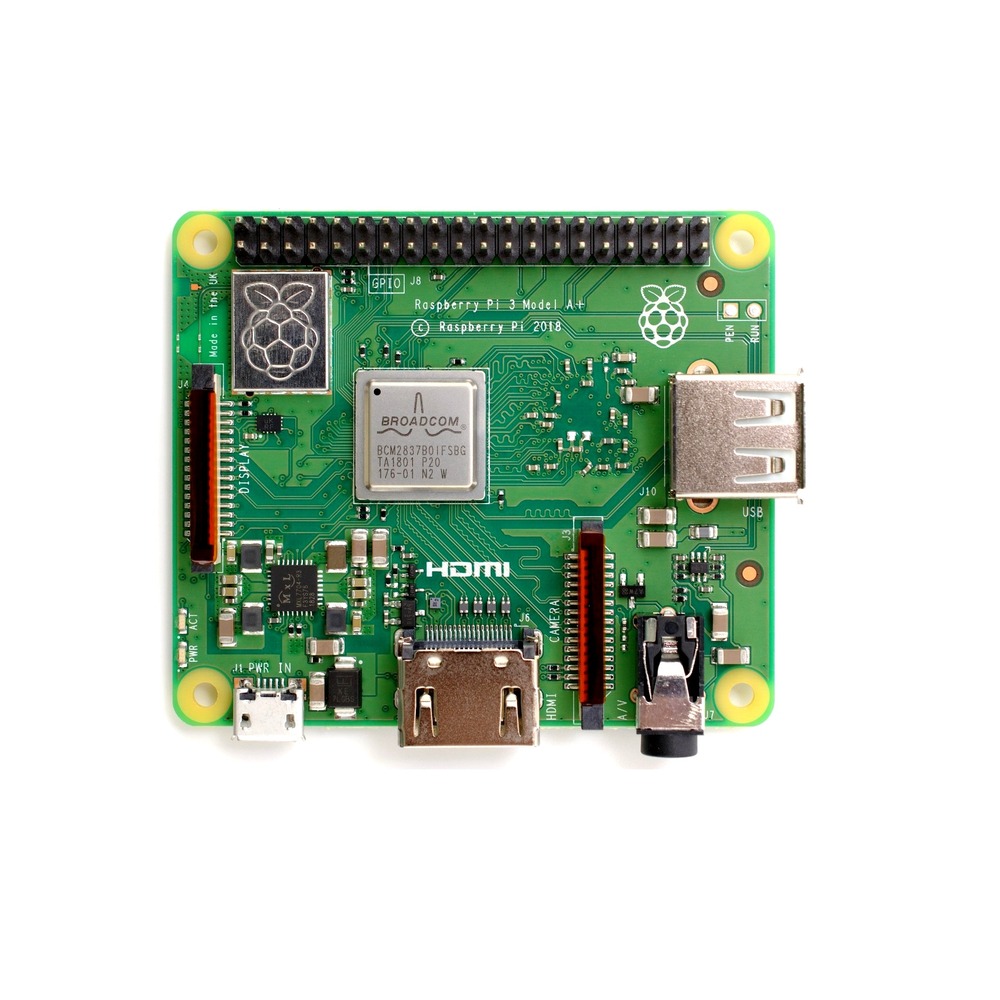

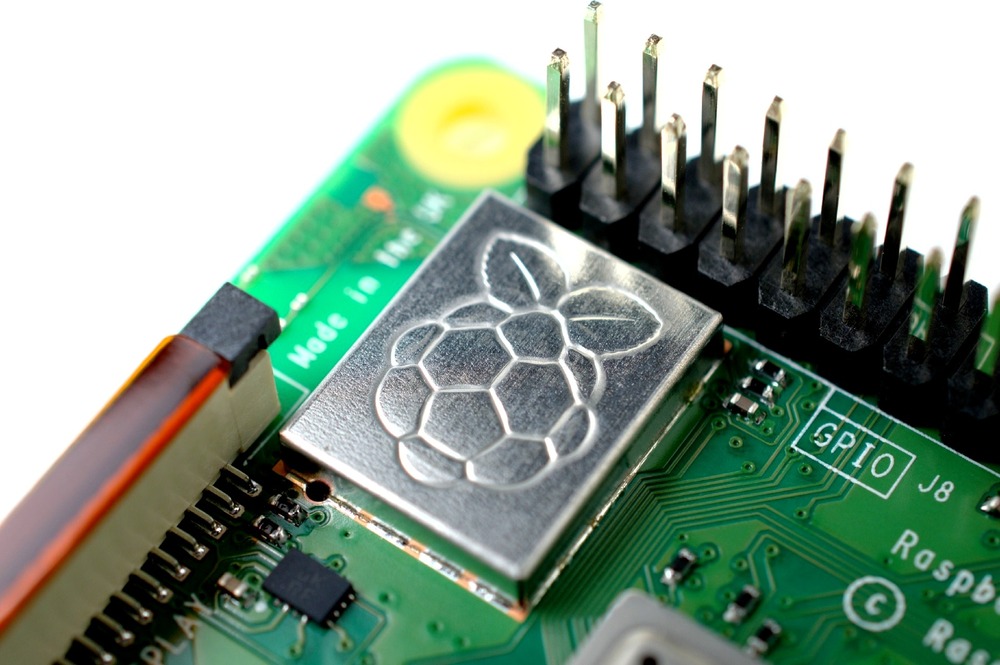

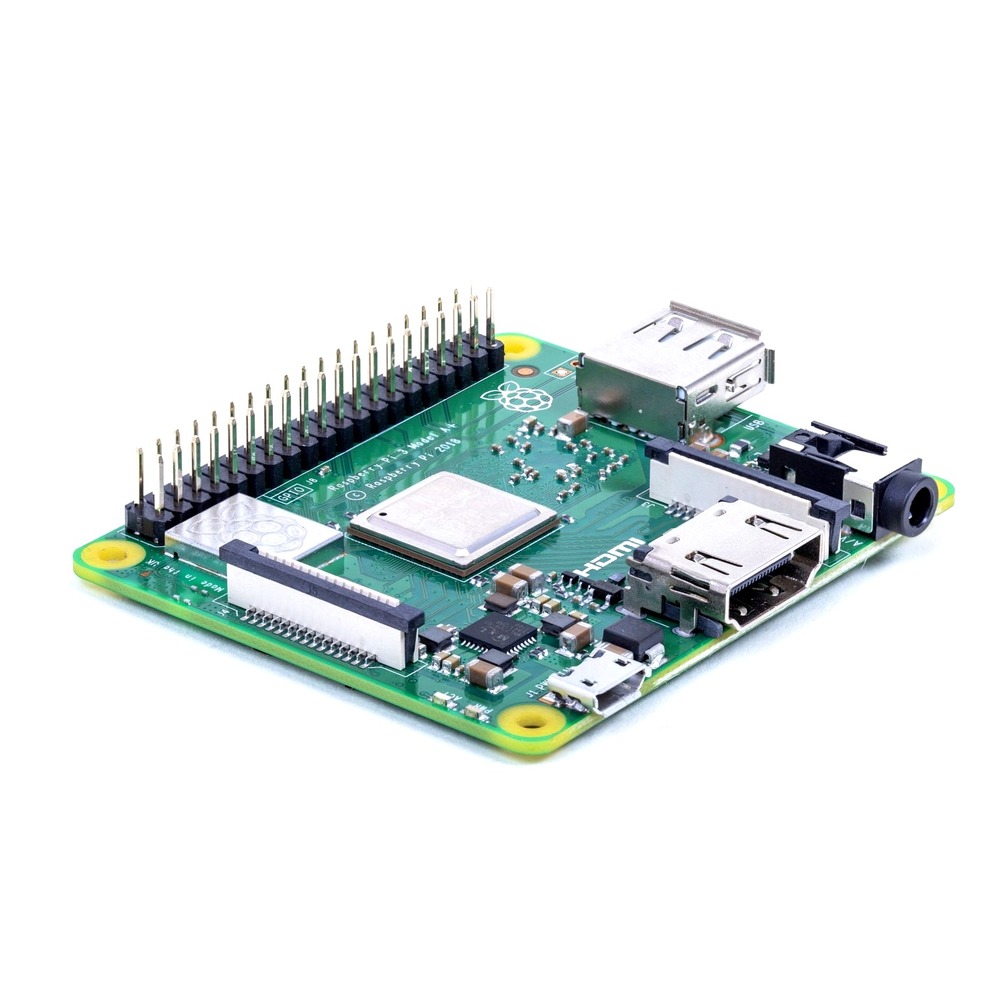

Raspberry Pi 3 Model A+

Description

The Raspberry Pi 3 Model A+ is a streamlined, compact single-board computer designed for makers and developers seeking a powerful yet energy-efficient solution. This 2018 iteration of the A-series features the Broadcom BCM2837B0 system-on-chip, incorporating a 64-bit quad-core ARM Cortex-A53 processor clocked at 1.4GHz. With 512MB of LPDDR2 SDRAM and integrated dual-band wireless LAN (2.4GHz/5GHz) and Bluetooth 4.2/BLE, it delivers robust processing and connectivity capabilities in a small form factor, maintaining mechanical compatibility with the original Raspberry Pi 1 Model A+.

Optimized for minimalist and low-power applications, the Raspberry Pi 3 Model A+ includes a 40-pin GPIO header and a full-size HDMI port for display output. Unlike its B+ counterpart, it omits the Ethernet jack and three USB ports, resulting in a more affordable, power-efficient, and significantly smaller board at just 65mm x 56mm. Despite its reduced footprint, it retains full compatibility with the extensive Raspberry Pi ecosystem, including operating systems, software, HATs, and various accessories, making it highly versatile for a wide range of projects.

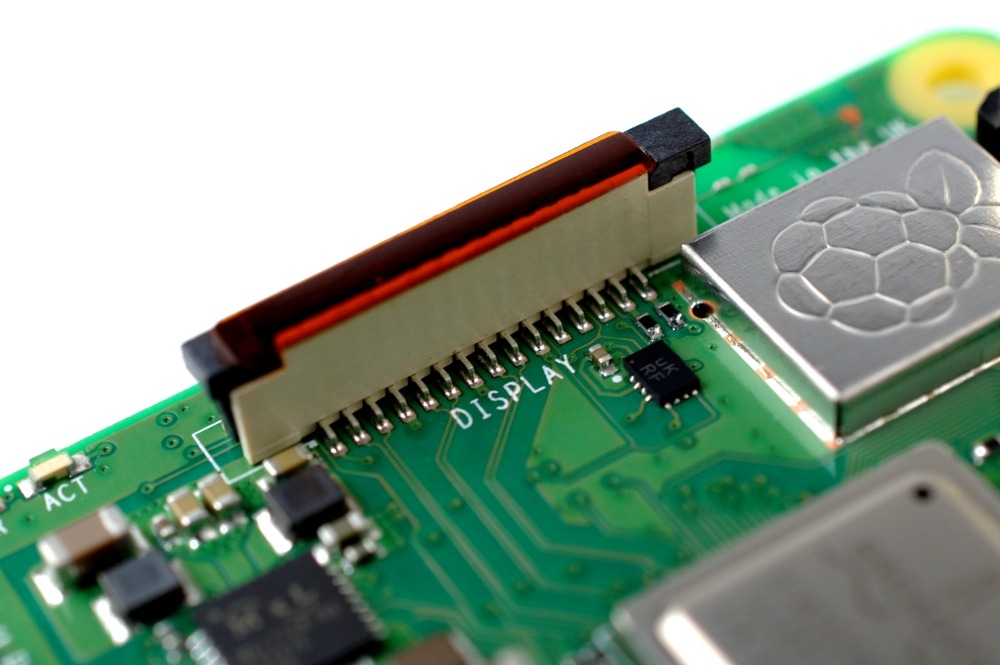

Connectivity options on the Raspberry Pi 3 Model A+ include a single USB 2.0 port, a full-size HDMI port, a 4-pole stereo audio/composite video output, and a micro-USB input for 5V/2.5A power. It also provides dedicated CSI camera and DSI display interfaces, enabling seamless integration with official Raspberry Pi camera modules and touch displays. This balance of performance, portability, and cost-effectiveness makes the Pi 3 Model A+ an excellent choice for multimedia, IoT, and educational applications where space and power consumption are critical considerations.
