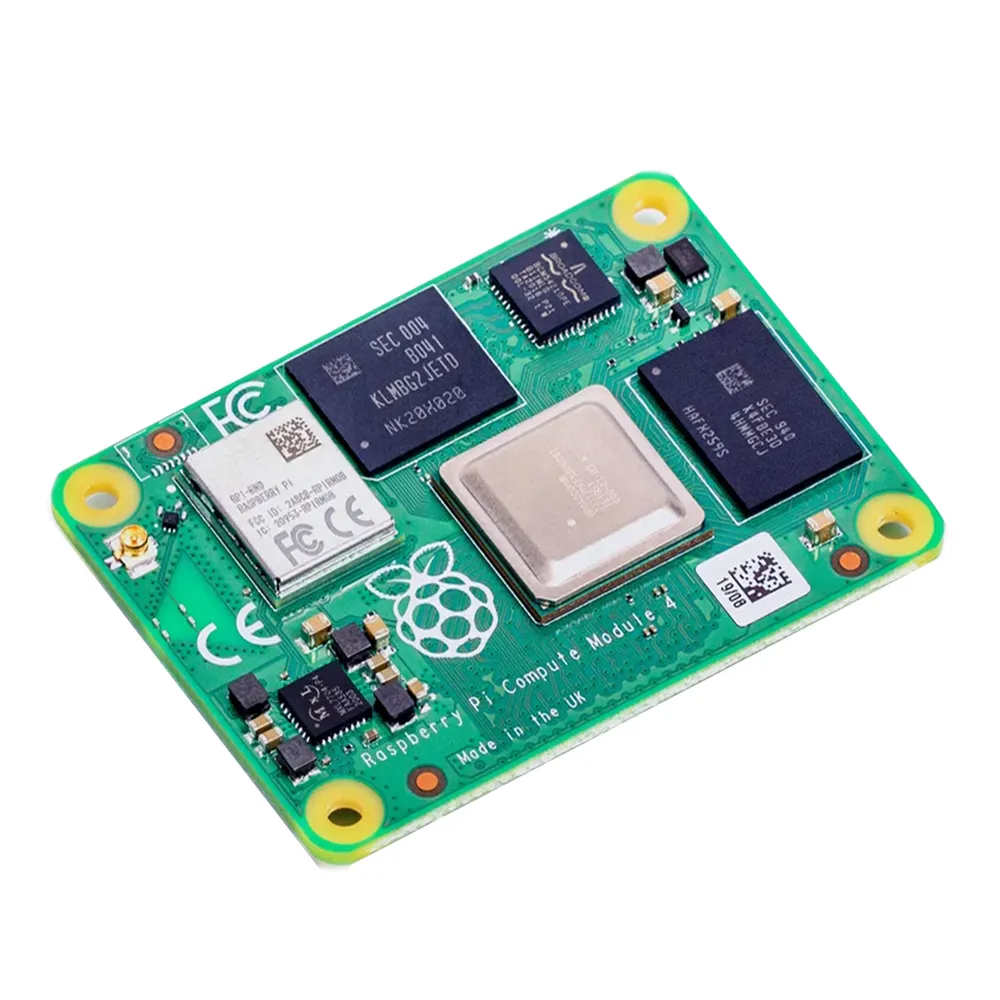

Raspberry Pi CM4 (4GB RAM, 32GB eMMC, Wi-Fi/BT)

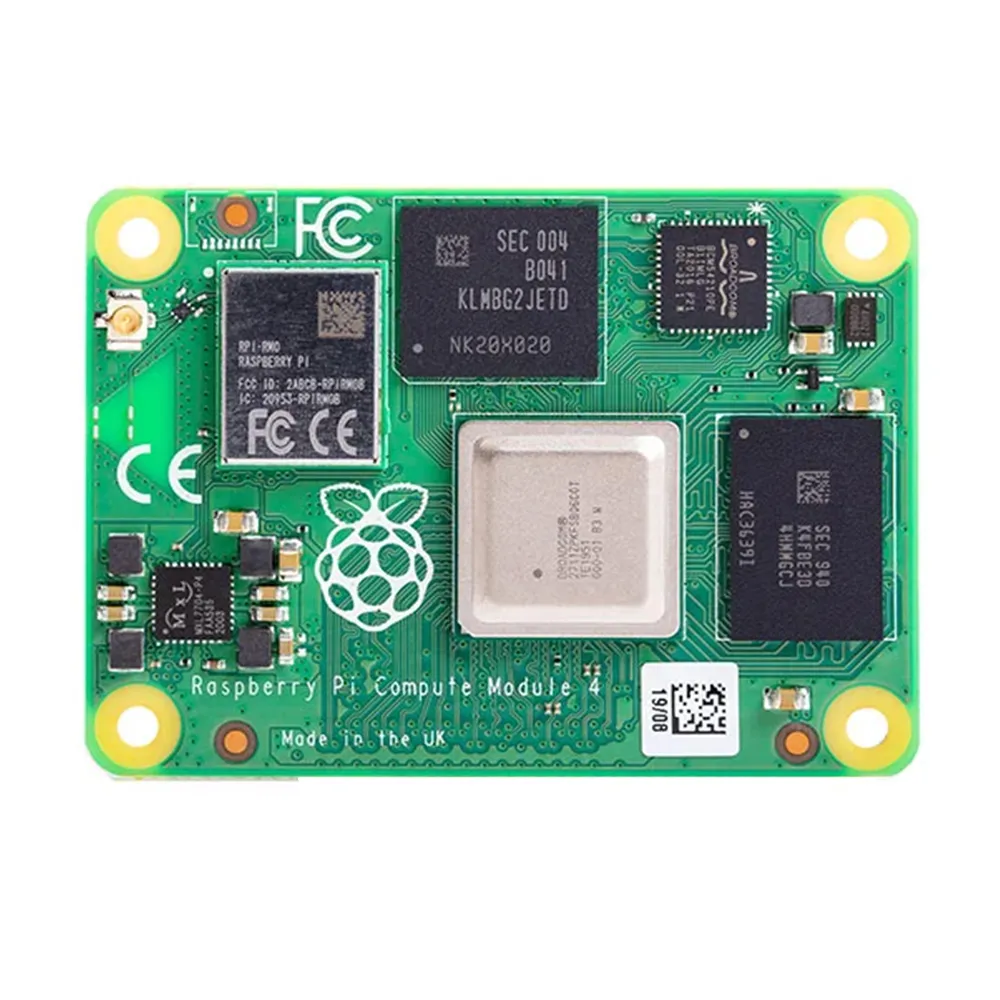

Raspberry Pi CM4 (4GB RAM, 32GB eMMC, Wi-Fi/BT) - Image 2

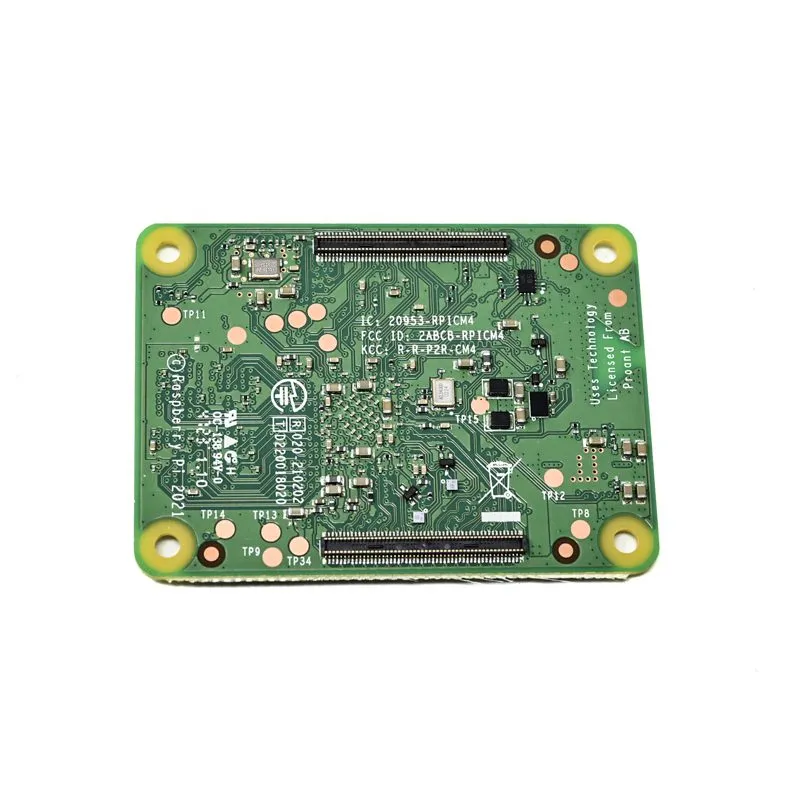

Raspberry Pi CM4 (4GB RAM, 32GB eMMC, Wi-Fi/BT) - Image 3
SKU: SBCD-0899
📋 GST Invoice Available

Raspberry Pi CM4 (4GB RAM, 32GB eMMC, Wi-Fi/BT)

₹15,329.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi Compute Module 4 (CM4) offers the powerful quad-core Cortex-A72 processor of Raspberry Pi 4 in a compact, embeddable form factor. Featuring 4GB RAM, 32GB eMMC storage, and integrated dual-band Wi-Fi 5 and Bluetooth 5.0, this variant is ideal for deeply embedded applications requiring robust connectivity and multimedia capabilities.

Features

  • Features a Broadcom BCM2711 quad-core ARM Cortex-A72 processor @ 1.5GHz for high performance.
  • Integrated 4GB LPDDR4 RAM and 32GB eMMC Flash storage for OS and application data.
  • Includes dual-band 2.4/5.0 GHz IEEE 802.11ac Wi-Fi and Bluetooth 5.0 with BLE.
  • Provides essential I/O including Gigabit Ethernet PHY, USB 2.0, PCIe Gen 2 x1, and dual HDMI.
  • Designed for compact, embedded systems requiring robust processing and multimedia output.

Out of stock

Description

The Raspberry Pi Compute Module 4 (CM4) distills the powerful capabilities of the Raspberry Pi 4 into a small, versatile module optimized for embedded industrial and commercial applications. This specific variant, the CM4104032, comes equipped with 4GB of LPDDR4 RAM and 32GB of eMMC Flash memory, providing ample resources for complex operating systems and application data. Its integrated dual-band (2.4/5.0 GHz) Wi-Fi 5 and Bluetooth 5.0 offer reliable wireless connectivity, making it suitable for IoT gateways, industrial control, and other networked embedded systems.

Powered by a Broadcom BCM2711 quad-core ARM Cortex-A72 processor clocked at 1.5GHz, the CM4 delivers robust processing performance. It supports dual HDMI video output up to 4Kp60, alongside MIPI DSI display and MIPI CSI camera interfaces, enabling advanced multimedia projects. With a PCIe Gen 2 x1 interface and USB 2.0, the module offers expandable I/O for integrating custom peripherals. Its compact 55mm x 40mm footprint and compliance testing ensure readiness for deployment in diverse environments.

Key Features

  • High-performance Broadcom BCM2711 quad-core ARM Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz.
  • 4GB LPDDR4-3200 SDRAM for efficient multitasking and data processing.
  • 32GB eMMC Flash memory for reliable operating system and application storage.
  • Integrated dual-band 2.4/5.0 GHz IEEE 802.11ac Wi-Fi for robust wireless networking.
  • Bluetooth 5.0 with Bluetooth Low Energy (BLE) for peripheral connectivity.
  • Hardware video decoding (H.265 up to 4Kp60) and encoding (H.264 up to 1080p30).
  • Supports OpenGL ES 3.0 graphics for rich visual applications.
  • On-board electronic switch enables selection between external or PCB trace antenna for flexible RF design.

Applications

  • Industrial IoT gateways and edge computing devices.
  • Smart home and automation systems requiring embedded intelligence.
  • Digital signage and media players with dual display support.
  • Custom robotics and unmanned aerial vehicle (UAV) control systems.
  • Embedded machine vision and AI inference applications.
  • Thin clients and specialized industrial HMIs.

Technical Specifications

SoCBroadcom BCM2711 (Quad-core Cortex-A72 @ 1.5GHz)
RAM4GB LPDDR4-3200 SDRAM
Storage32GB eMMC Flash
Wireless2.4GHz/5.0GHz IEEE 802.11ac Wi-Fi, Bluetooth 5.0/BLE
Wired Connectivity1x PCIe 1-lane Host (Gen 2, 5Gbps), 1x USB 2.0 Port (High-speed), Gigabit Ethernet PHY (via I/O board)
Video OutputDual HDMI (up to 4Kp60), 2-lane MIPI DSI, 4-lane MIPI DSI
Camera Interface2-lane MIPI CSI, 4-lane MIPI CSI
MultimediaH.265 (4Kp60 decode), H.264 (1080p60 decode/1080p30 encode), OpenGL ES 3.0
Power Input5V DC
Dimensions55mm x 40mm

Frequently Asked Questions

What is the core processor of the CM4 and its clock speed?

The Raspberry Pi Compute Module 4 utilizes a Broadcom BCM2711 quad-core ARM Cortex-A72 processor, clocked at 1.5GHz. This 64-bit SoC delivers robust performance suitable for a wide range of embedded applications, from industrial control to multimedia processing, making it a powerful solution for compact systems.

What operating systems are supported by the Raspberry Pi CM4?

The CM4 supports standard Raspberry Pi OS (formerly Raspbian), Ubuntu, and other ARM-compatible Linux distributions. Its architecture allows for flexible OS deployment, including customized embedded Linux builds, making it adaptable for specific project requirements and development environments. It's fully compatible with the Raspberry Pi software ecosystem.

How does the CM4 handle wireless connectivity?

This CM4 variant includes integrated 2.4GHz and 5.0GHz IEEE 802.11ac Wi-Fi (Wi-Fi 5) and Bluetooth 5.0 with Bluetooth Low Energy (BLE). It features an on-board electronic switch, allowing designers to select between an integrated PCB trace antenna or an external antenna for optimized signal integrity and placement flexibility.

Can I expand the storage or add peripherals to the CM4?

While this variant includes 32GB eMMC storage, further expansion is typically achieved via an I/O board that exposes a PCIe Gen 2 x1 interface, allowing for NVMe SSDs or other high-bandwidth peripherals. USB 2.0 ports also provide connectivity for various external devices and sensors.

What are the power requirements for the Compute Module 4?

The Raspberry Pi Compute Module 4 requires a 5V DC power supply. The exact current draw will depend on the workload and connected peripherals. For robust operation, particularly with an I/O board and external devices, ensuring an adequate and stable power source is crucial for system stability.

Package Includes

  • 1 × Raspberry Pi Compute Module 4 (4GB RAM, 32GB eMMC, Wireless)

Additional Information

Weight 0.04 kg
Dimensions 5.5 × 4 cm

Related Products

Out of Stock

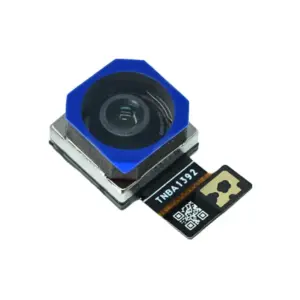

Raspberry Pi Camera Module 3 NoIR Sensor Assembly 11.9MP

4,079.00
Learn More
Out of Stock

Raspberry Pi 15.6" Full HD Monitor with Speakers (Red/White)

15,329.00
Learn More
Out of Stock

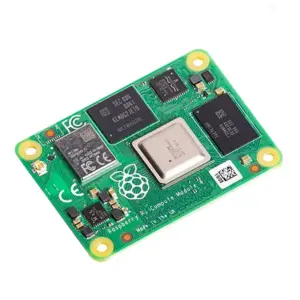

Raspberry Pi Compute Module 4 - 8GB RAM, 32GB eMMC, Wi-Fi/BT

22,999.00
Learn More
Out of Stock

Raspberry Pi CM5 16GB RAM 32GB eMMC w/ Wi-Fi BT

40,679.00
Learn More
Out of Stock

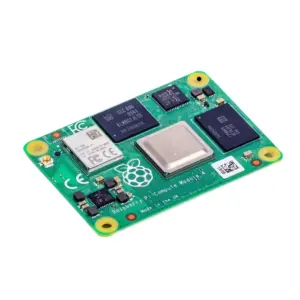

Raspberry Pi CM4: 4GB RAM, 64GB eMMC, Wi-Fi, BT

16,799.00
Learn More
Out of Stock

Raspberry Pi Build HAT - LEGO Robotics Controller

1,964.00
Learn More
Out of Stock

Raspberry Pi GPIO Multi-function Expansion Board for Pi 4B/3B+

319.00
Learn More
Out of Stock

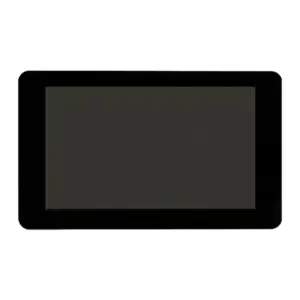

Raspberry Pi 5-inch Touch Display 2 Capacitive
