RAKwireless WisLink LPWAN Concentrator RAK2287 USB w/ GPS IN865

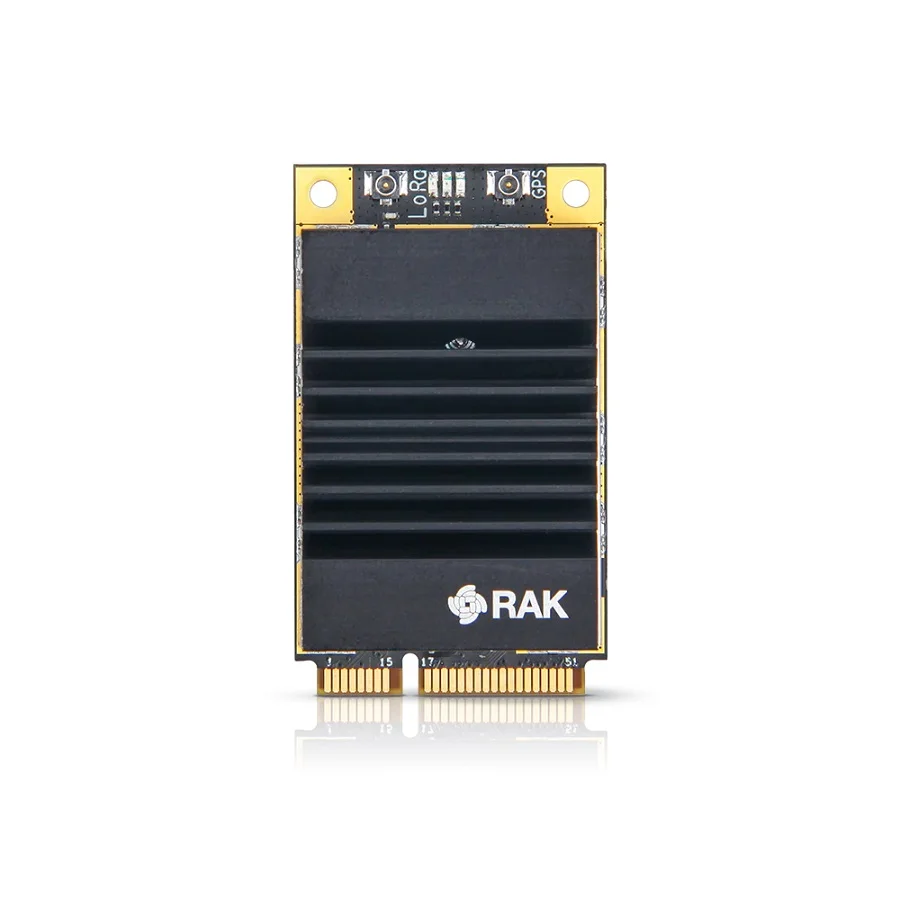

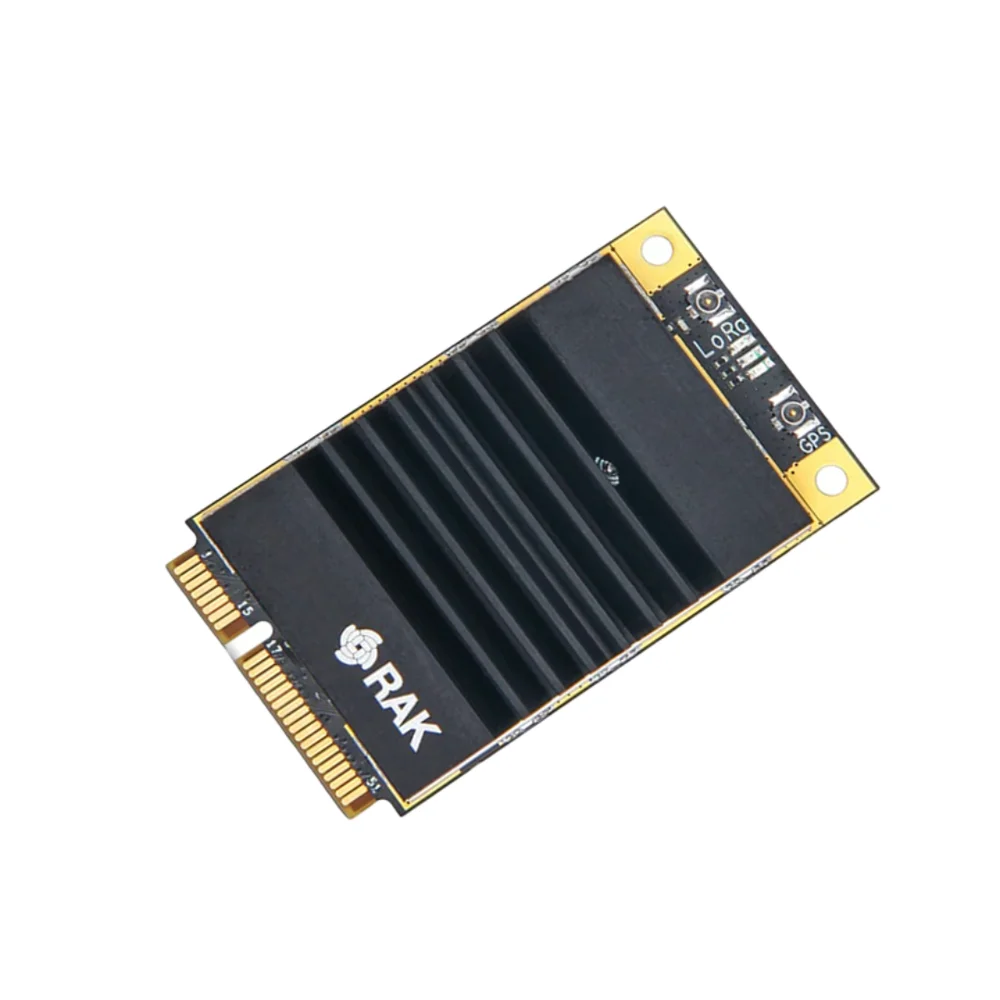

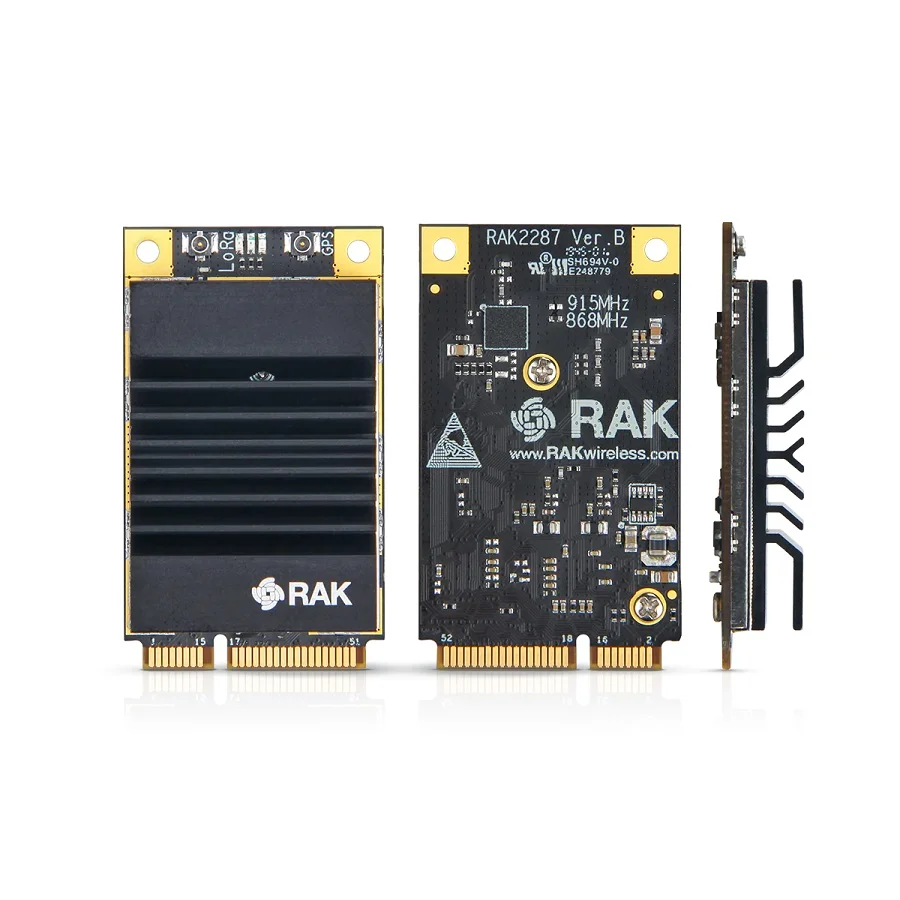

The RAKwireless RAK2287 is an mPCIe-form LPWAN concentrator module featuring the Semtech SX1302 baseband processor and an integrated ZOE-M8Q GPS module. Designed for the IN865 frequency band, it provides a high-performance, compact gateway solution for LoRaWAN network deployments.
Features
- High-performance Semtech SX1302 baseband processor for multi-channel LoRaWAN packet forwarding.
- mPCIe form factor ensures compatibility with standard 3G/LTE card slots and 3.3V power domains.
- Integrated u-blox ZOE-M8Q GPS module enables precise location services and time-synchronized gateways.
- Supports global LoRaWAN bands including EU868, US915, AS923, AU915, KR920, and IN865.
- High RF output up to 27 dBm and excellent receiver sensitivity down to -139 dBm for extended range.
Out of stock
The RAK2287 WisLink LPWAN Concentrator is engineered for building robust, scalable LoRaWAN gateway infrastructure. Its core is the Semtech SX1302 digital baseband processor, which handles simultaneous reception on multiple channels, significantly increasing network capacity and reducing packet collision. The module’s mPCIe form factor allows for easy integration into existing industrial routers, embedded PCs, or custom gateway enclosures designed for standard card interfaces.
Equipped with a built-in u-blox ZOE-M8Q GPS receiver, the RAK2287 provides precise timing for LoRaWAN Class B beacon synchronization and adds geolocation capabilities to the gateway itself, useful for mobile or asset-tracking applications. The USB interface variant simplifies host connectivity, requiring minimal driver configuration on Linux-based systems commonly used in gateway stacks like ChirpStack or The Things Network.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 8 × 12 × 1 cm |
