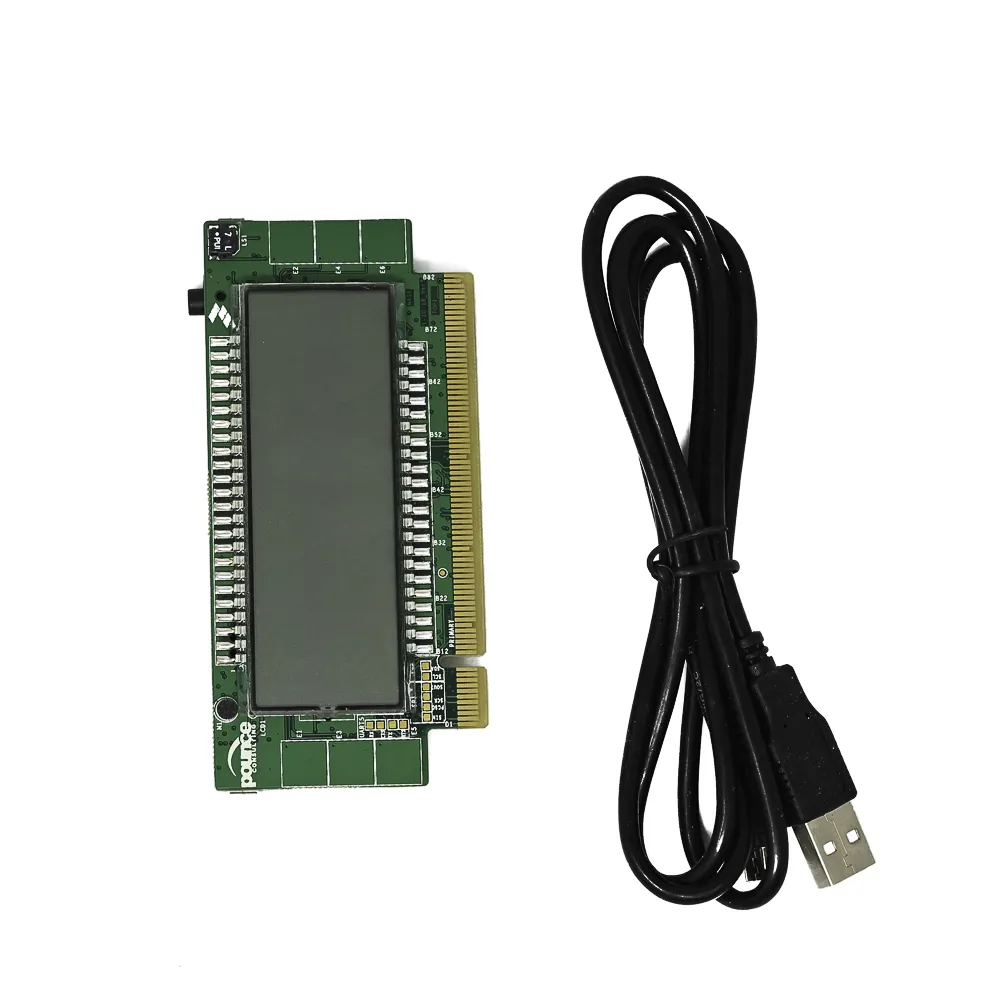

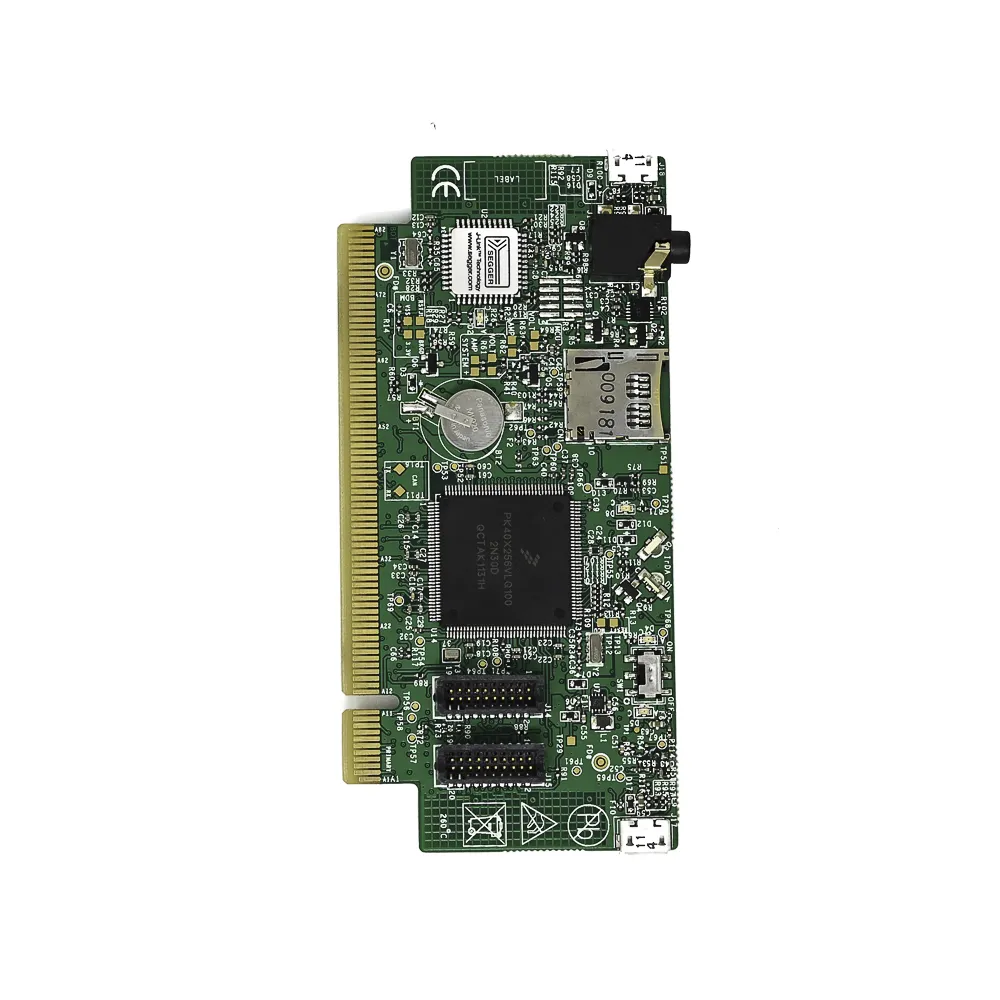

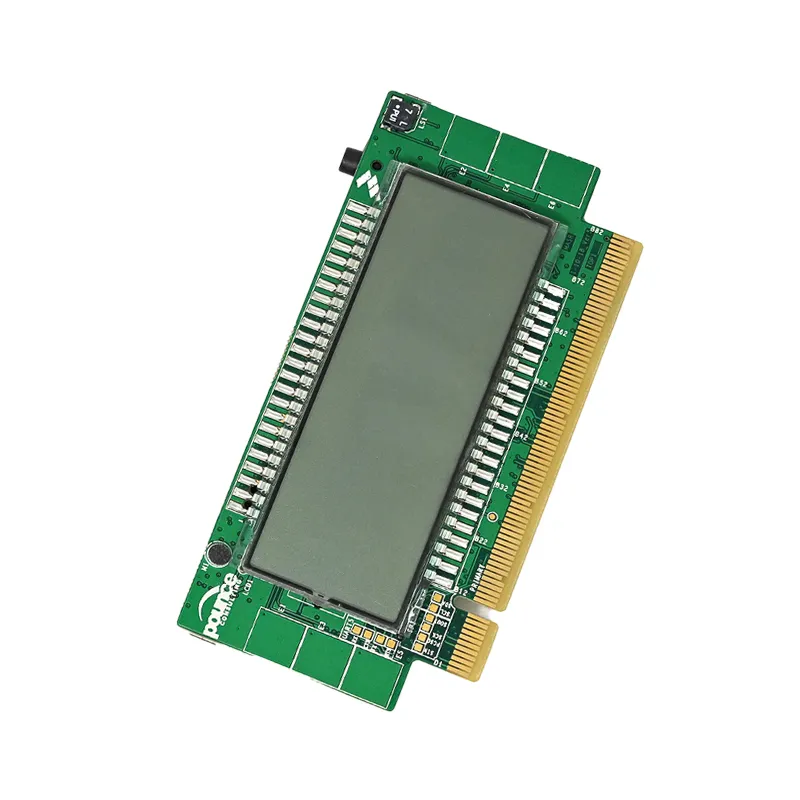

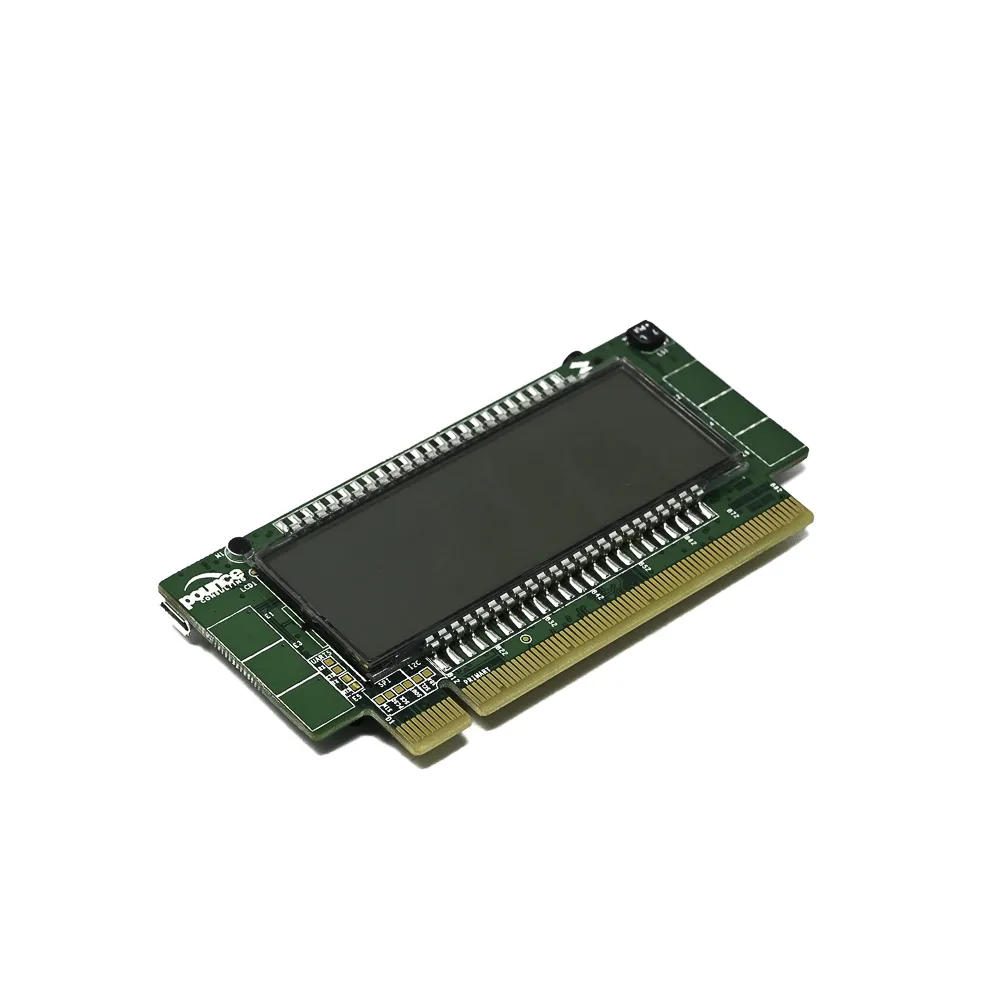

NXP Semiconductors KWIKSTIK-K40 Development Kit K40X256VLQ100 MCU

Name: NXP Semiconductors KWIKSTIK-K40 Development Kit K40X256VLQ100 MCU
Brand: NXP Semiconductors
SKU: SBCD-0496
Price: 5169.00 INR
Availability: OutOfStock

₹5,169.00 (Inclusive of all taxes)

Out of Stock

The NXP Semiconductors KWIKSTIK-K40 is an ultra-low-cost development kit designed for Kinetis ARM Cortex-M4 microcontrollers, integrating USB, capacitive touch sensing, and segment LCD functionality for rapid prototyping.

Features

Features the Kinetis K40X256VLQ100 ARM Cortex-M4 MCU with 256KB Flash.
Includes capacitive touch sensing interface and a 306-segment LCD display.
Equipped with a MicroSD card slot for expanded storage capabilities.
Integrated Segger Segger debug interface for efficient development and debugging.
Powered by a manganese lithium rechargeable battery, ensuring portability.

Out of stock

Get Notified When Available

Description

The NXP Semiconductors KWIKSTIK-K40 serves as a comprehensive, cost-effective development solution for Kinetis ARM Cortex-M4 microcontrollers. This compact tool integrates the K40X256VLQ100 MCU, offering robust USB connectivity, advanced capacitive touch sensing, and a segment LCD display, all within a sleek, portable design. It comes pre-flashed with demonstration software, allowing immediate exploration of the Kinetis K40X256 device’s capabilities and the KwikStik hardware.

Beyond evaluation, the KWIKSTIK-K40 features an onboard Segger Segger debug interface, facilitating seamless development, debugging, and programming for projects utilizing any Kinetis MCU. Its versatility is further enhanced by compatibility with the NXP Semiconductors Tower System peripheral modules, though it can also function independently as a standalone debugging tool. This kit provides an all-in-one environment for evaluating and building embedded applications.

Key Features

Onboard Kinetis K40X256VLQ100 MCU (ARM Cortex-M4 core with DSP).
Integrated 306-segment LCD display for basic user interfaces.
Capacitive touch sensing interface for interactive HMI development.
MicroSD card slot for data logging or application storage.
General-purpose Tower Plug-in (TWRPI) socket for modular expansion.
Onboard Segger Segger debug interface for in-circuit debugging and programming.
Powered by a manganese lithium rechargeable battery for portable operation.
Enclosed in a flexible silicone casing for durability and protection.

Applications

Embedded Human-Machine Interface (HMI) development.
Prototyping low-power portable devices.
Capacitive touch interface experimentation and design.
USB device development and evaluation.
General Kinetis ARM Cortex-M4 microcontroller evaluation.

Technical Specifications

Item Type	Development Kit
Processor	ARM Cortex-M4 core with DSP
Flash Memory	256KB
Operating Frequency	100 MHz core
Operating Voltage	1.71V–3.6V
LCD Display	306 segment

Frequently Asked Questions

What is the core processor and key specifications of the KWIKSTIK-K40?

The KWIKSTIK-K40 features the Kinetis K40X256VLQ100 MCU, which incorporates an ARM Cortex-M4 core with DSP capabilities. It operates at 100 MHz and includes 256KB of Flash memory. This configuration supports high-performance embedded tasks and signal processing within a low-power envelope, making it suitable for a variety of microcontroller-based applications.

What unique human-machine interface (HMI) features does the KWIKSTIK-K40 offer?

The KWIKSTIK-K40 integrates a 306-segment LCD display and a capacitive touch sensing interface. These features enable developers to easily prototype and implement interactive user interfaces directly on the board, making it ideal for applications requiring basic visual output and touch-based input without needing external display drivers or touch controllers. It simplifies HMI design.

How is debugging and programming handled on the KWIKSTIK-K40 development kit?

The KWIKSTIK-K40 includes an onboard Segger Segger debug interface. This integrated solution allows for seamless development, debugging, and programming of the K40X256VLQ100 MCU, as well as external Kinetis-based target hardware. It supports standard debug protocols and is compatible with popular IDEs such as MCUXpresso and IAR Embedded Workbench, streamlining the development workflow.

Can the KWIKSTIK-K40 be expanded with additional peripherals?

Yes, the KWIKSTIK-K40 is equipped with a general-purpose Tower Plug-in (TWRPI) socket. This allows for modular expansion by connecting various peripheral modules from the NXP Semiconductors Tower System. Developers can add functionalities like communication interfaces, sensor arrays, or motor control, thereby extending the kit's capabilities for complex embedded projects and system integration.
