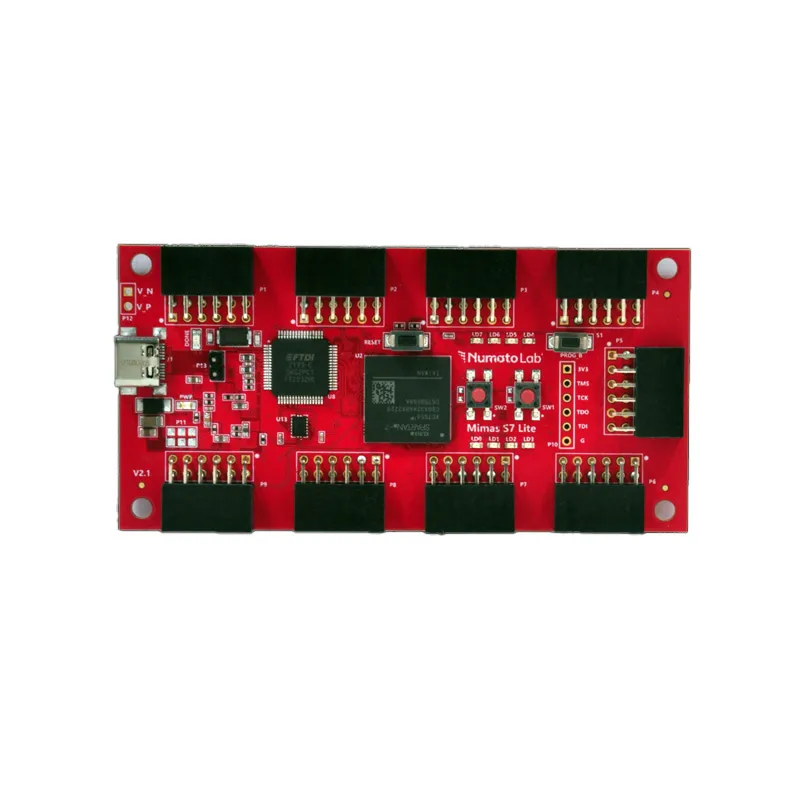

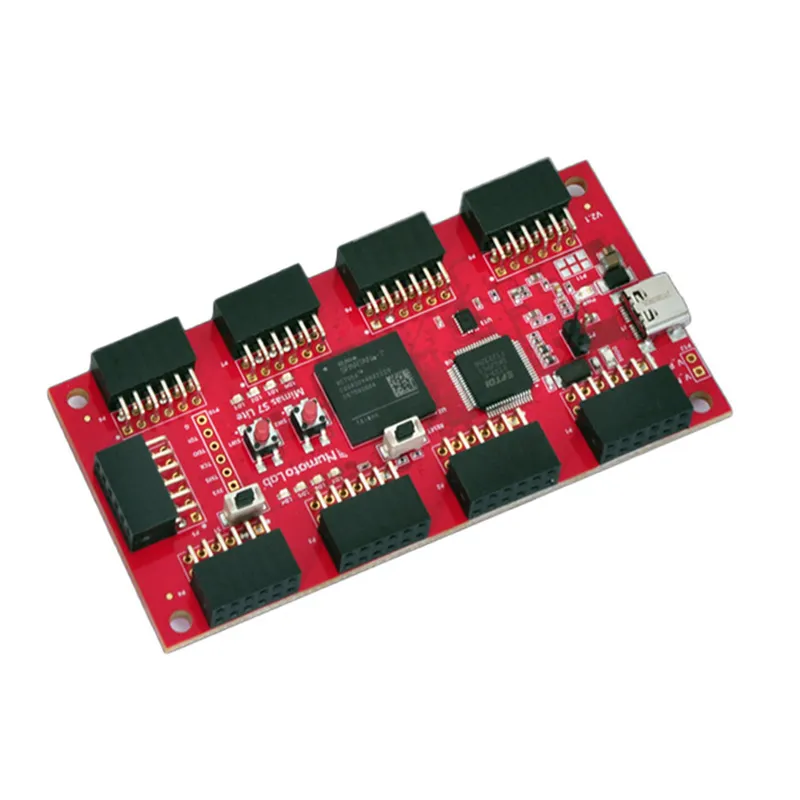

NumatoLab Mimas S7 Lite Spartan-7 FPGA Dev Board
The NumatoLab Mimas S7 Lite is a versatile FPGA development board featuring the Xilinx Spartan-7 XC7S50 FPGA, designed for rapid prototyping and embedded applications. It offers efficient data storage with 128Mb QSPI flash and extensive connectivity via nine PMOD connectors.
Features
- Xilinx Spartan-7 XC7S50 FPGA for robust logic design.
- High-speed 128Mb Quad SPI Flash for configuration and data storage.
- Nine PMOD connectors for versatile peripheral expansion.
- Integrated 100MHz CMOS oscillator for stable clocking.
- Flexible programming via JTAG and USB interfaces.
Out of stock
The NumatoLab Mimas S7 Lite serves as an accessible and powerful FPGA development platform, integrating the Xilinx Spartan-7 XC7S50 FPGA (CSGA324 package) with a -1 speed grade. This board is engineered to support a wide array of digital design projects, from complex embedded systems to high-speed digital signal processing. Its core capabilities are complemented by a 128Mb Quadbit SPI flash (MT25QL128ABA1ESE-0SIT) for reliable configuration and user data storage, ensuring rapid boot-up and persistent memory for your designs.
Peripheral expansion is a key strength of the Mimas S7 Lite, featuring nine PMOD connectors that facilitate easy integration with a vast ecosystem of modules and sensors. User interaction is supported by two push buttons and eight LEDs, providing immediate feedback and control for debugging and application development. Configuration is streamlined through both JTAG and a USB interface (FTDI FT2232H, USB 2.0, Windows compatible), making programming and debugging efficient for developers across various skill levels.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 16 × 11 × 5 cm |
