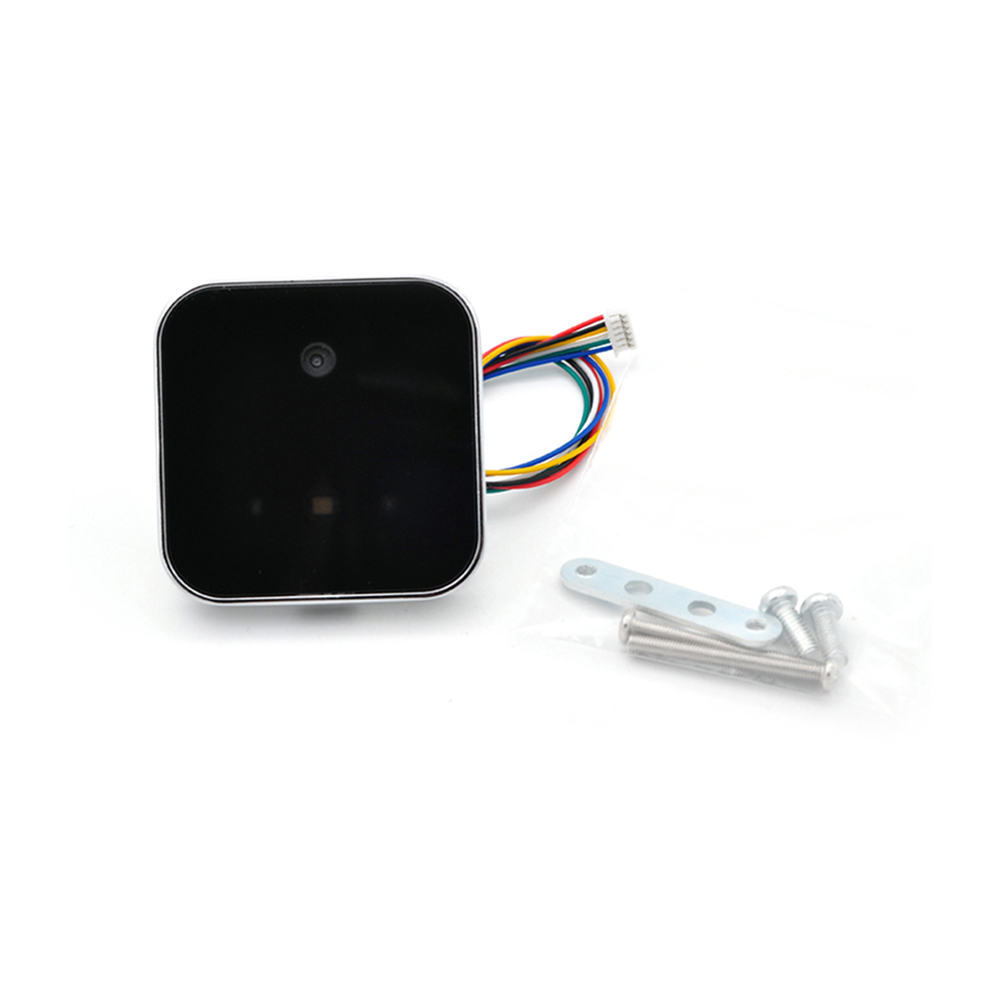

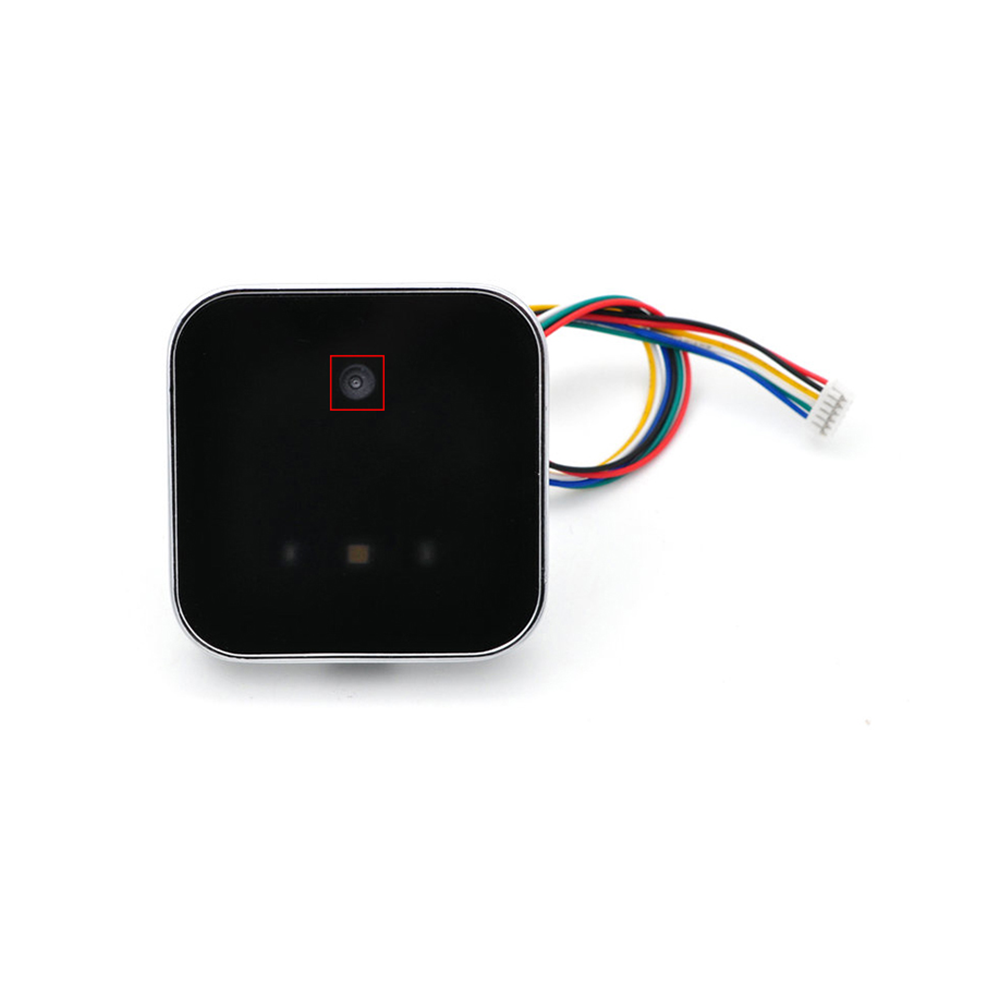

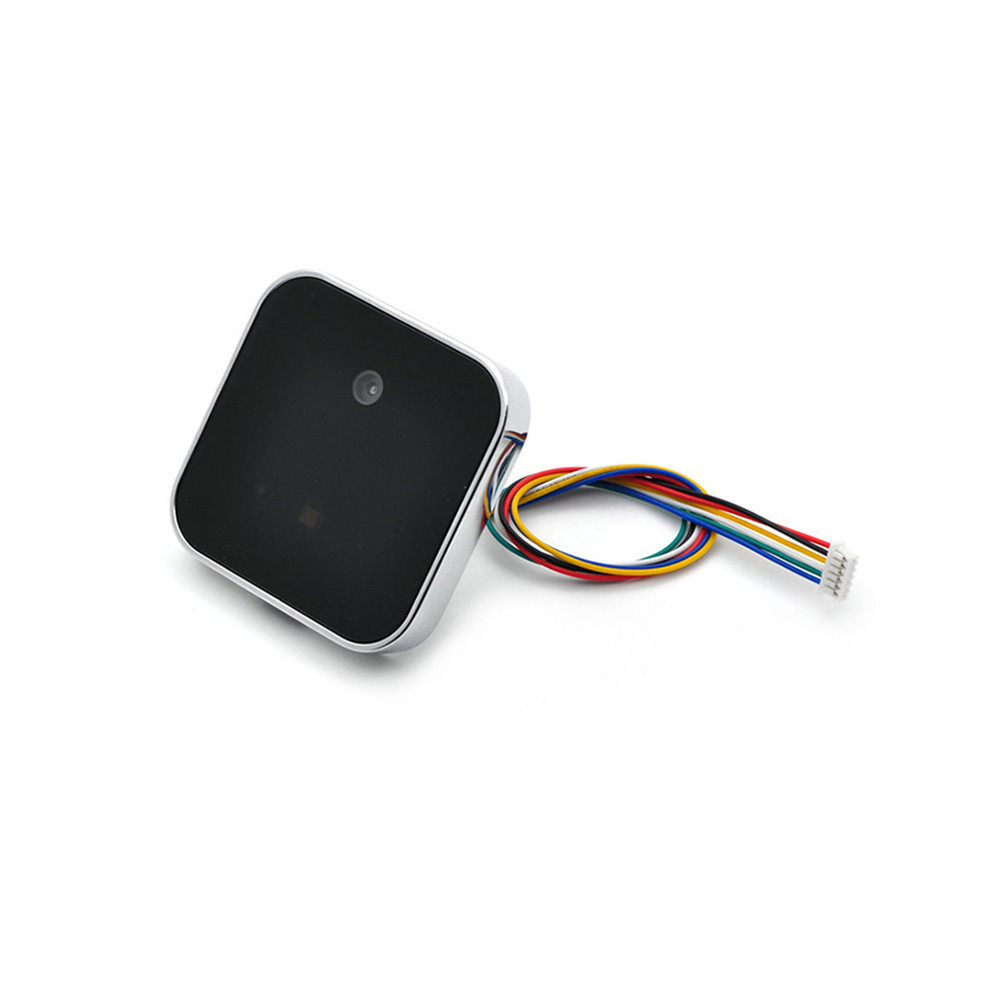

Grow GM811-L Barcode Scanner Module - UART/USB Interface, 7-50cm Range
The Grow GM811-L is a compact barcode and QR code scanner module featuring dual UART and USB interfaces for easy integration into embedded systems, POS terminals, and industrial automation equipment. Its CMOS sensor and white LED illumination enable reliable reading of a wide range of 1D and 2D symbologies.
Features
- Dual UART and USB 2.0 interfaces for flexible system integration

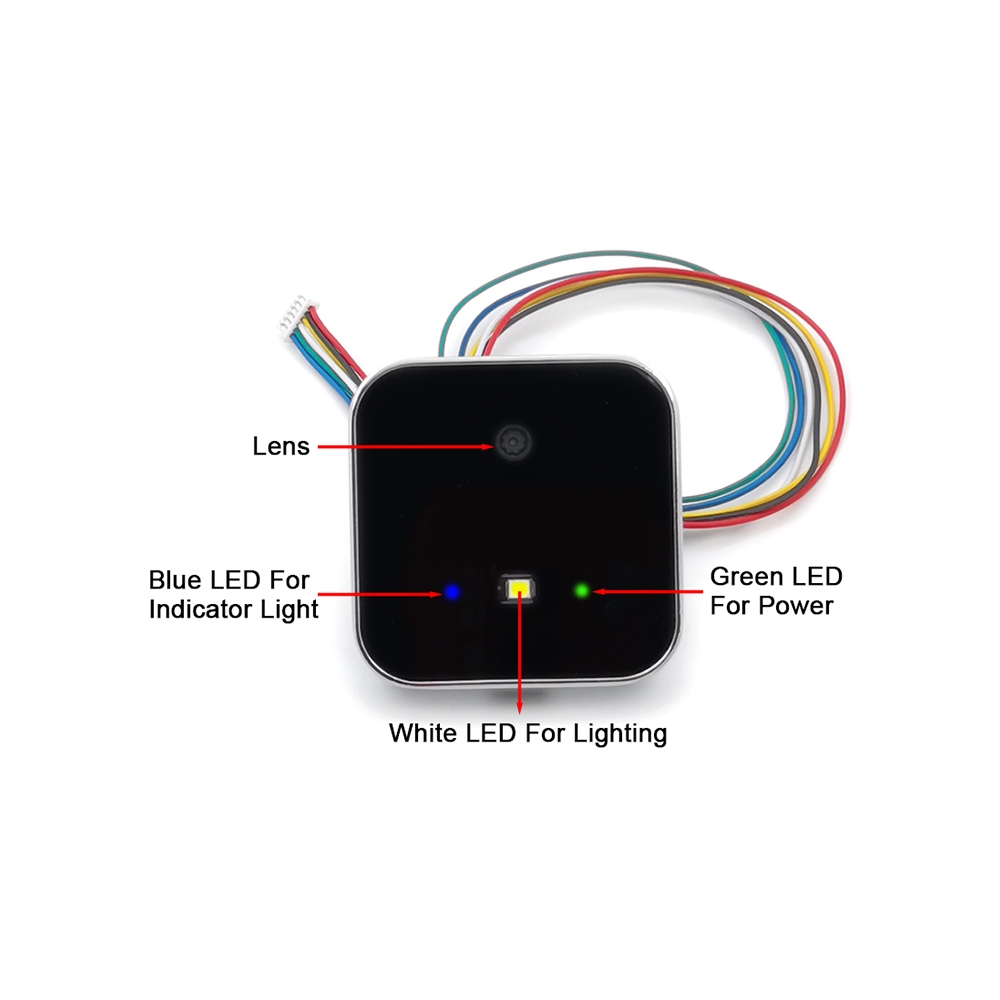

- High-resolution 640×480 CMOS sensor with white LED illumination
- Supports extensive 1D and 2D barcode types including QR Code, Data Matrix, and Code 128
- Extended reading distance range from 7 cm to 50 cm (GM811-L model)
- Low power operation at 5V DC with visual feedback LEDs for power and scan status
Out of stock
The GM811-L barcode scanner module utilizes a high-performance CMOS image sensor operating in a 640×480 scan mode, providing the resolution necessary for accurate decoding of both 1D linear barcodes and dense 2D Matrix codes. Integrated white LED lighting ensures consistent illumination for reliable scanning under various ambient light conditions.
Designed for embedded and industrial applications, the module operates on a standard 5V DC supply with low current consumption. Its dual-interface design allows for direct USB connection or serial UART communication with microcontrollers, PLCs, and single-board computers, facilitating deployment in point-of-sale systems, inventory management, and automated logistics.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
