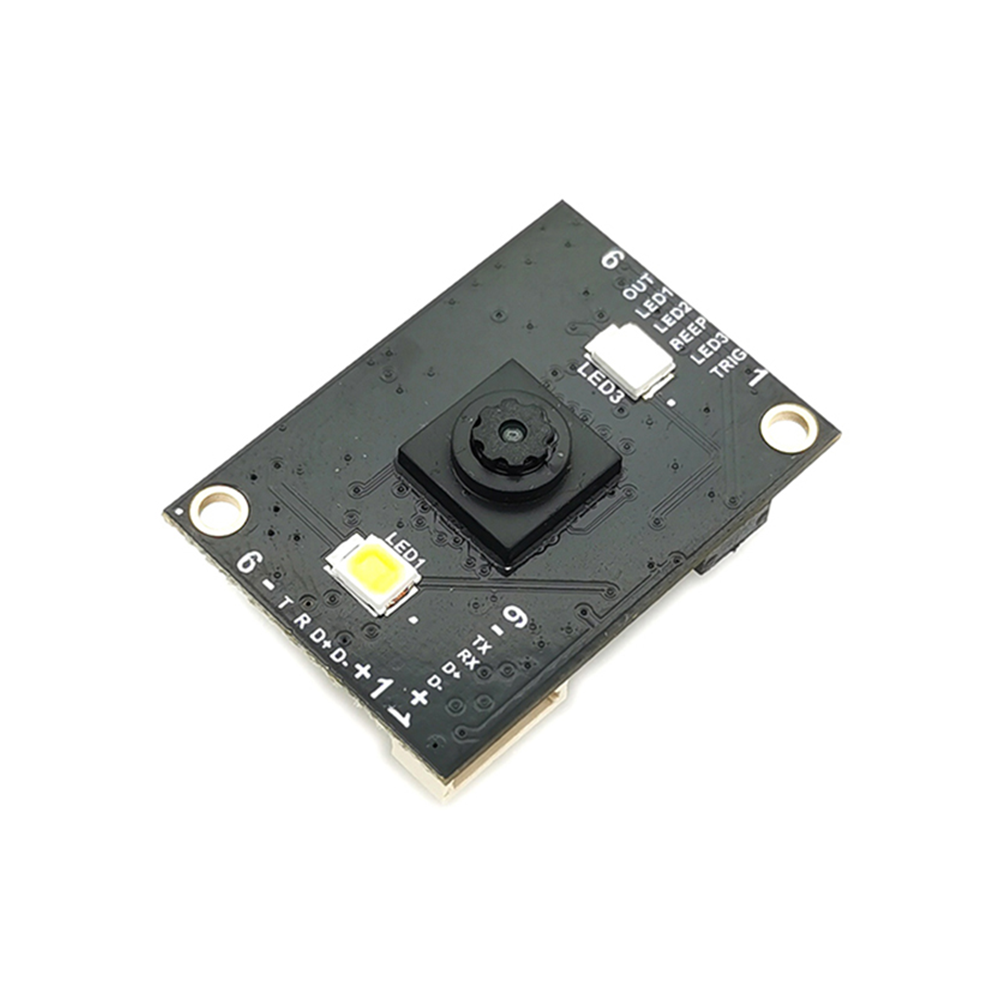

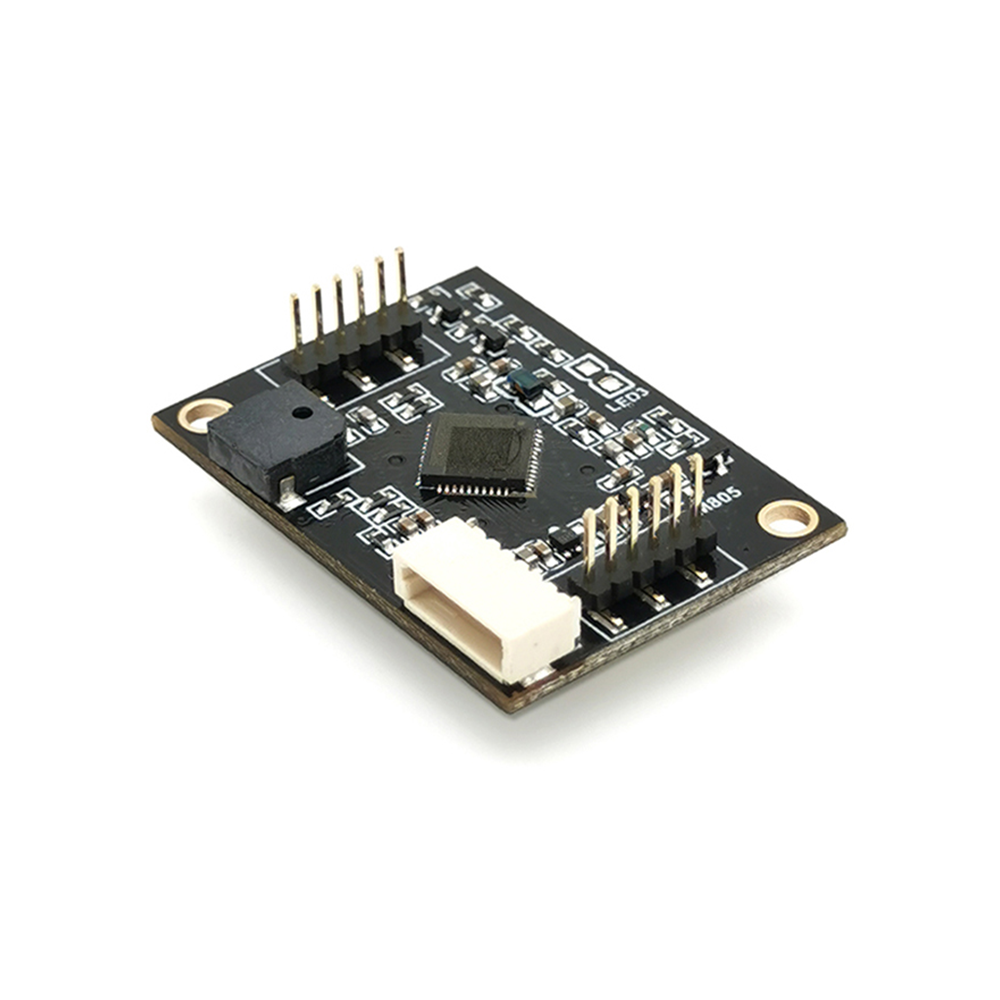

Grow GM805-L Barcode Scanner Module - UART/USB Interface, 7-50cm Range
The Grow GM805-L is a compact CMOS-based barcode and QR code scanner module offering UART and USB interfaces for seamless integration into embedded systems, POS terminals, and industrial automation equipment. It provides reliable scanning at distances from 7 to 50 cm with clear visual and auditory read confirmation.
Features
- CMOS Sensor with 640×480 resolution for 1D/2D code scanning
- Dual Interface: UART (TTL) and USB for flexible system integration
- Extended Reading Range: 7 cm to 50 cm (GM805-L model)
- White LED Illumination ensures clear scans in various lighting conditions
- Integrated Buzzer and Blue LED provide immediate scan confirmation
Out of stock
The GM805-L Barcode Scanner utilizes a high-resolution CMOS sensor paired with white LED illumination to capture and decode a wide array of 1D and 2D symbologies, including Code 128, Code 39, QR Code, and Data Matrix. Its optical engine is optimized for the GM805-L variant to achieve a practical scanning distance range of 7 to 50 centimeters.
Designed for embedded deployment, the module operates on a standard 5V DC supply and communicates via simple UART TTL serial protocol or plug-and-play USB, making it compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs. The compact form factor and included 15cm 6-pin serial cable facilitate easy installation in space-constrained applications.
Additional Information
| Weight | 0.025 kg |
|---|---|

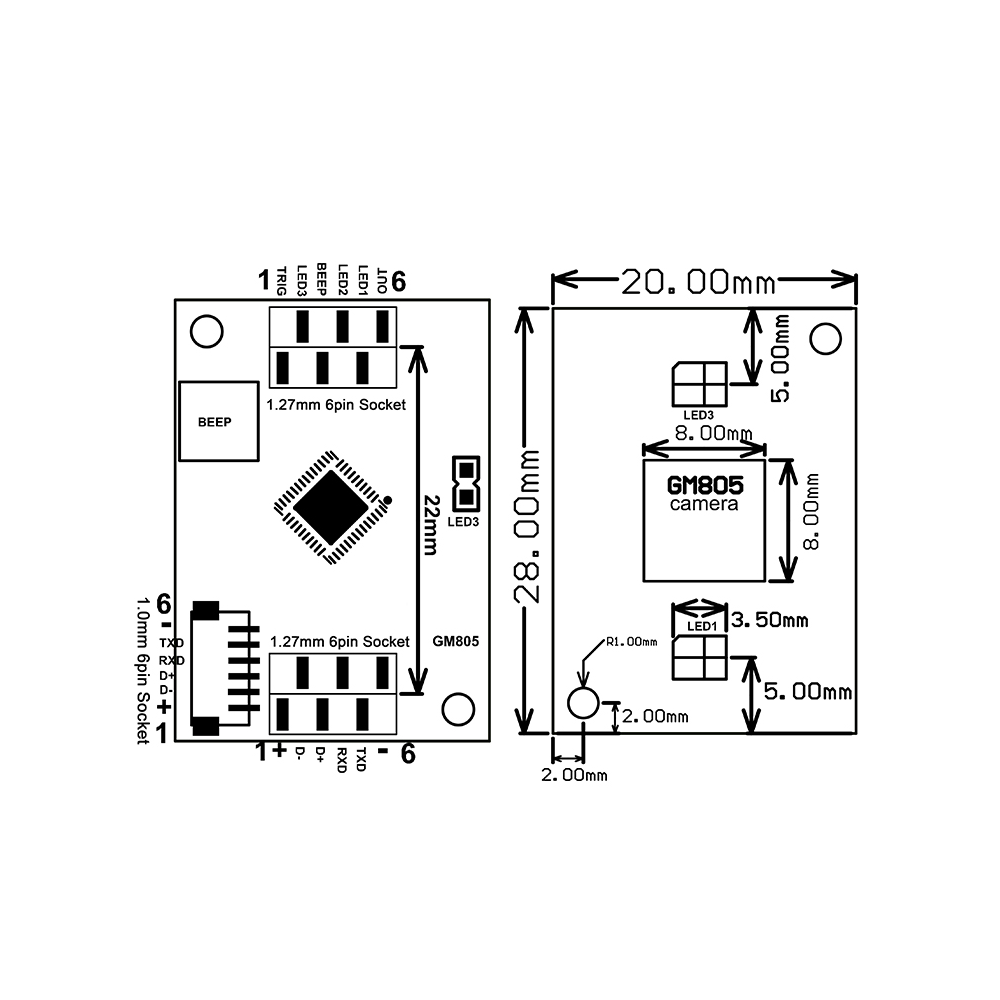

| Dimensions | 6 × 5 × 2 cm |
