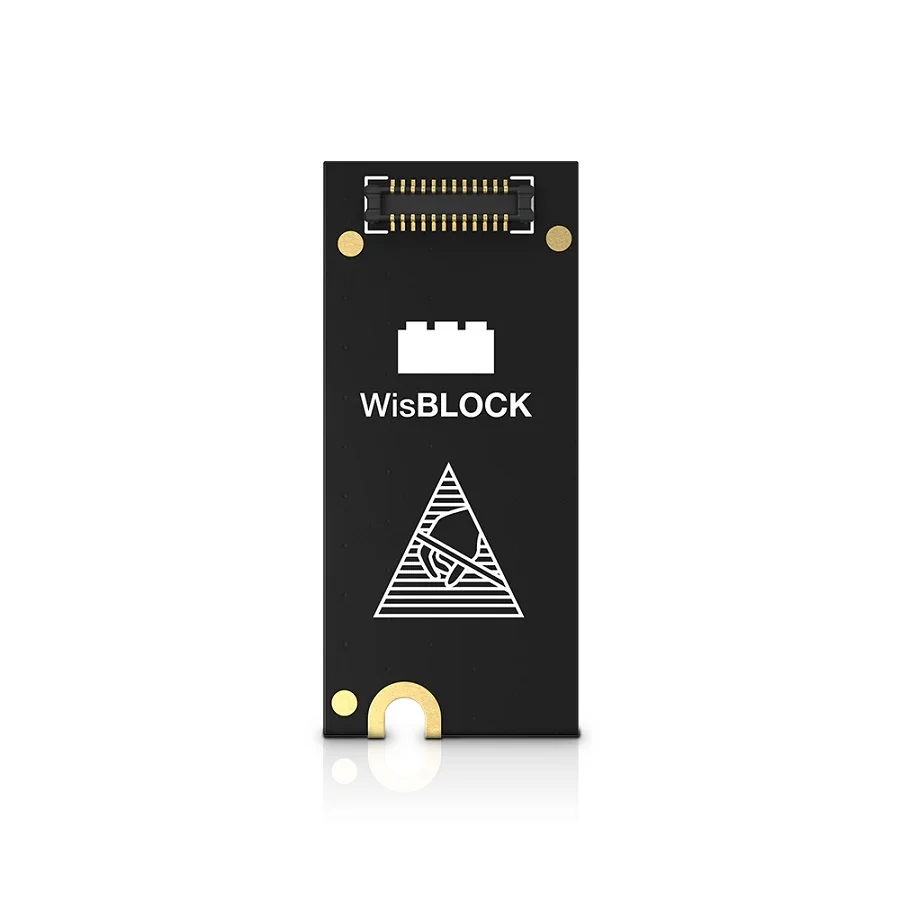

RAKwireless WisBlock GNSS Location Module RAK12500 w/ u-blox ZOE-M8Q

The RAK12500 provides both UART (Serial) and I2C interfaces. For UART, connect the module's TX and RX pins to your MCU's corresponding RX and TX pins, along with 3.3V power and ground. For I2C, connect the SDA and SCL pins to your MCU's I2C bus. Ensure you use a logic level converter if your host MCU operates at 5V. The default baud rate for UART communication is typically 9600 bps, but this can often be configured via specific AT commands or configuration messages.

The RAK12500 is designed for ultra-low power operation, with an average current consumption of less than 15 microamperes (µA). This figure is achievable when the module is configured in appropriate power-saving modes, such as periodic tracking. The actual current draw during active satellite acquisition will be higher. Always power the module from a stable 3.3V DC source and consult the u-blox ZOE-M8Q datasheet for detailed power mode specifications to optimize your application's battery life.

The module, utilizing the u-blox ZOE-M8Q chipset, supports concurrent reception from multiple Global Navigation Satellite Systems (GNSS). It can track signals from GPS (USA), GLONASS (Russia), BeiDou (China), Galileo (EU), and QZSS (Japan). Using multiple constellations significantly improves positioning availability, accuracy, and reliability, especially in environments with obstructed sky views like urban canyons or under light tree cover.

Yes, the RAK12500 can be interfaced with both Arduino and Raspberry Pi. For Arduino, you can use the hardware serial ports or SoftwareSerial library for UART communication, or the Wire library for I2C. For Raspberry Pi, you can connect via the GPIO header's UART pins (e.g., TXD and RXD) or the I2C pins. You will need to ensure proper 3.3V logic level matching. Community libraries and example code for parsing NMEA sentences from u-blox modules are widely available for both platforms.
