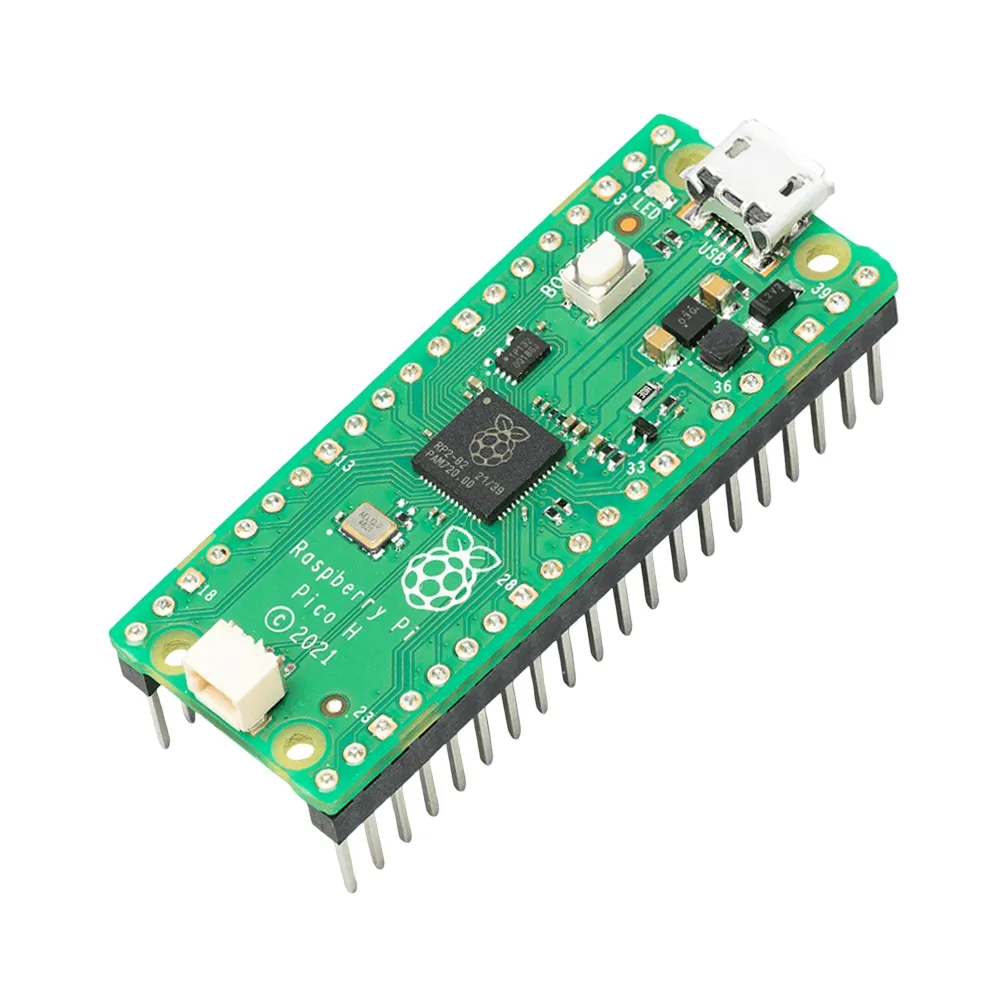

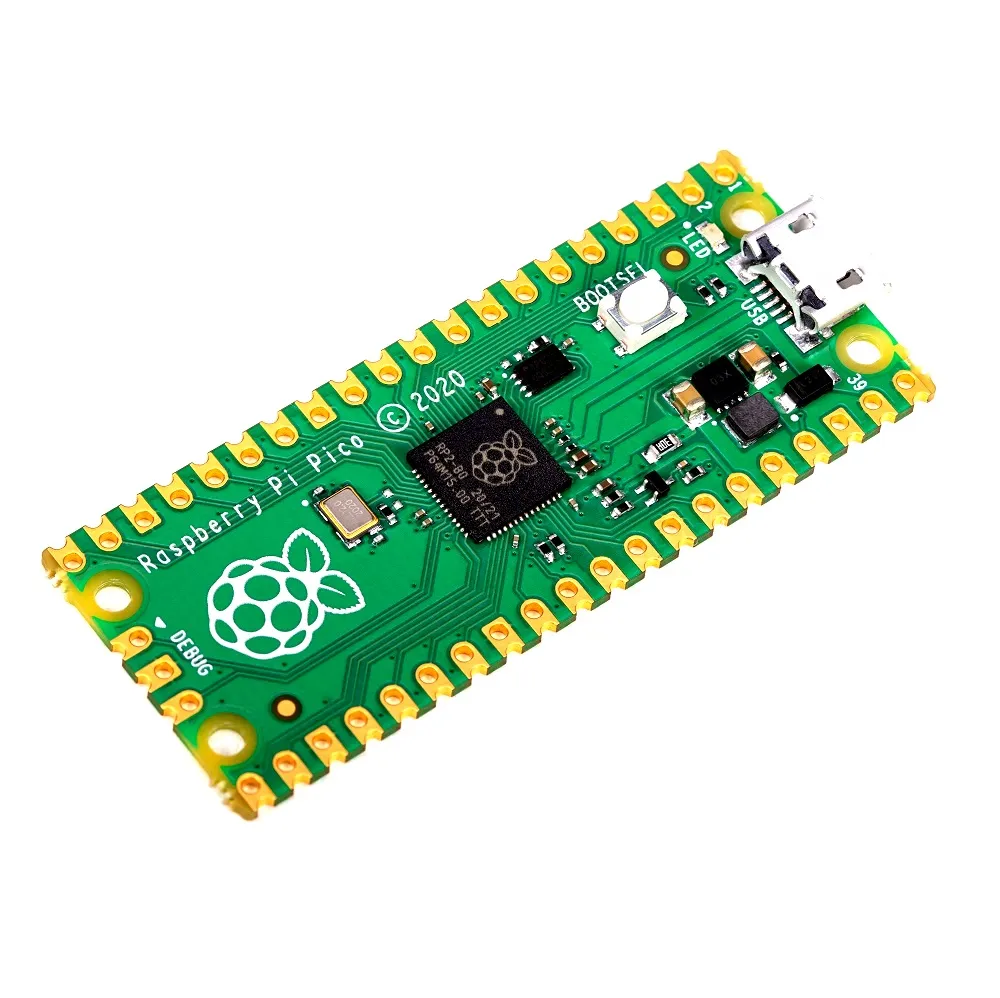

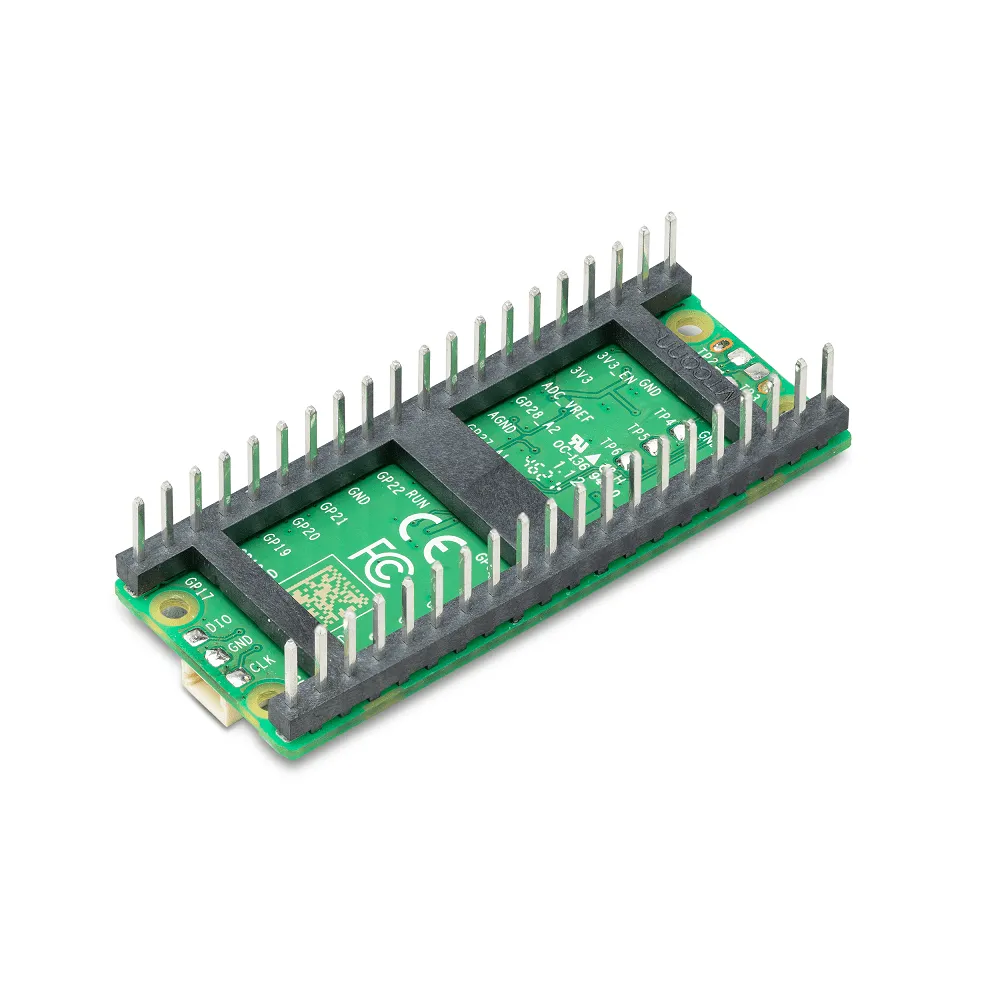

Raspberry Pi Pico H with Pre-Soldered Headers

Description

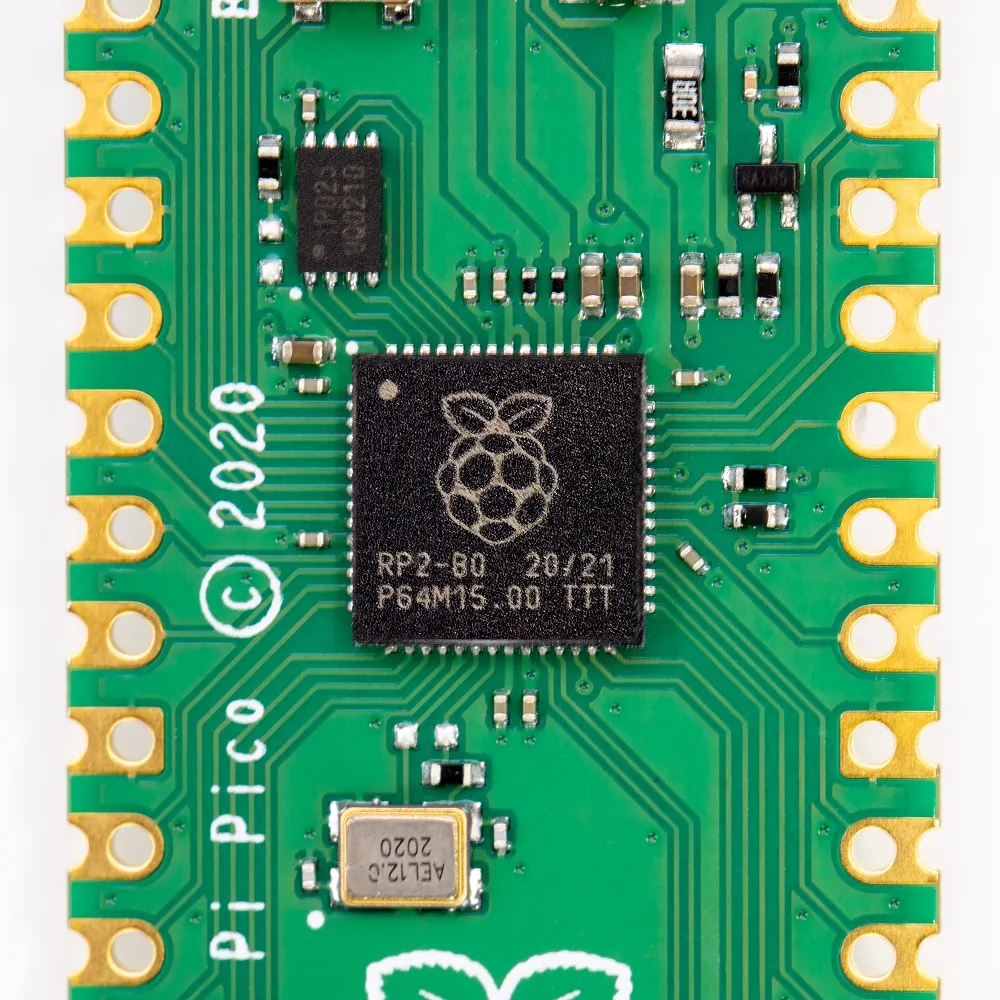

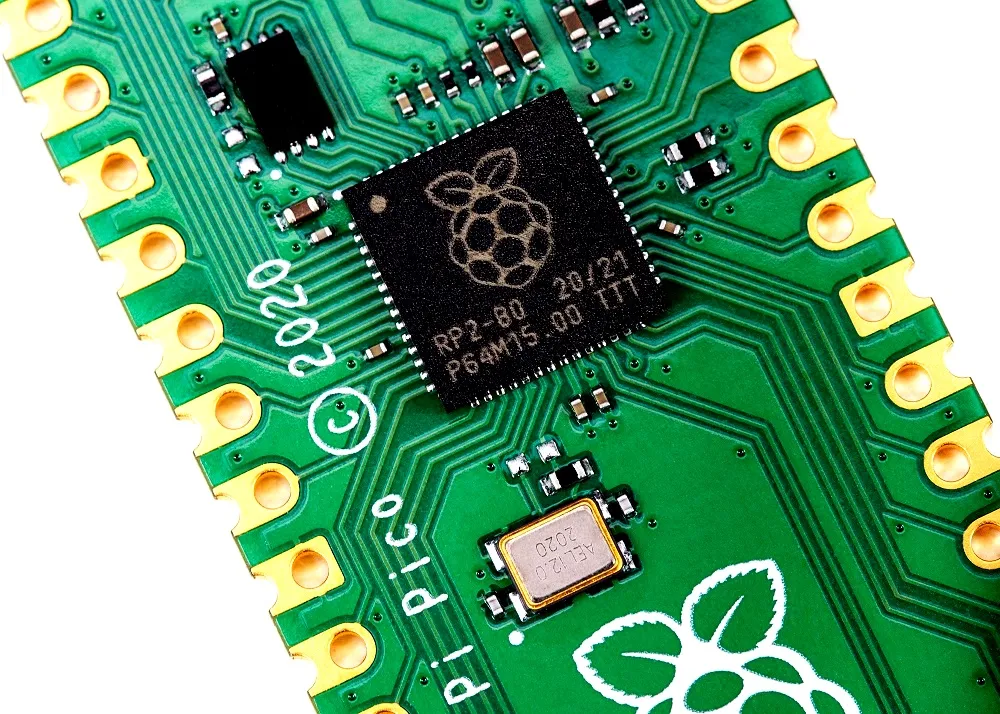

The Raspberry Pi Pico H brings the innovative RP2040 microcontroller into a ready-to-use form factor with pre-soldered headers. This board is built around the RP2040, Raspberry Pi’s inaugural microcontroller chip, featuring a robust dual-core Arm Cortex-M0+ processor that can be flexibly clocked up to 133 MHz. Its compact size and low cost make it an ideal choice for a wide range of embedded projects, from hobbyist endeavors to more complex industrial applications.

With 264KB of SRAM and 2MB of onboard QSPI Flash memory, the Pico H offers ample space for both program code and data. It provides extensive I/O options, including 26 multi-function GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, and 16 controllable PWM channels, along with 8 Programmable I/O (PIO) state machines for custom peripheral support. The board supports development using both C/C++ SDK and MicroPython, offering flexibility for developers of all skill levels to bring their ideas to life through drag-and-drop programming over USB.
