STM32 NUCLEO-L412RB-P Development Board

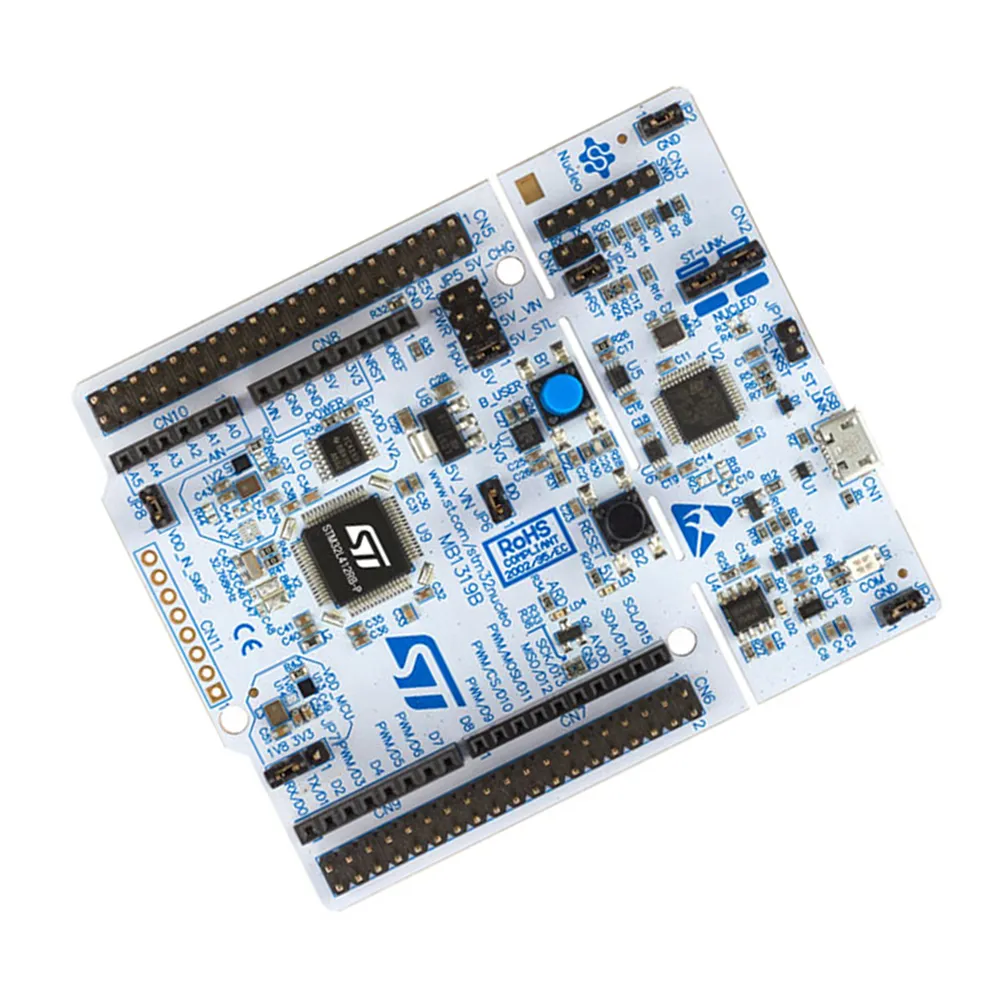

STM32 NUCLEO-L412RB-P Development Board - Image 2
SKU: SBCD-0027
📋 GST Invoice Available

STM32 NUCLEO-L412RB-P Development Board

₹2,099.00 (Inclusive of all taxes)
Out of Stock

The STM32 NUCLEO-L412RB-P is an ultra-low-power development board based on the Cortex-M4 STM32L4 microcontroller, featuring Arduino Uno V3 and ST Morpho headers for flexible expansion and rapid prototyping.

Features

  • Ultra-low-power STM32L4 Cortex-M4 MCU.
  • Arduino Uno V3 and ST Morpho expansion headers.
  • Integrated ST-LINK debugger/programmer for easy development.
  • External SMPS support for optimized power efficiency.
  • Ideal for battery-powered, energy-sensitive applications.

Out of stock

Description

The STMicroelectronics NUCLEO-L412RB-P development board provides a robust platform for evaluating the advanced capabilities of the ultra-low-power STM32L4 series microcontrollers. Featuring an ARM Cortex-M4 core, this board offers excellent processing efficiency coupled with a comprehensive suite of power-saving modes, making it an optimal choice for embedded systems where energy consumption is critical.

Designed for rapid prototyping, the NUCLEO-L412RB-P includes industry-standard Arduino Uno V3 connectivity and ST Morpho headers, ensuring broad compatibility with a wide array of expansion shields and modules. An integrated ST-LINK/V2-1 debugger/programmer simplifies firmware deployment and debugging, while support for the STM32Cube software ecosystem accelerates development cycles. Its battery-friendly design and external SMPS support further enhance its suitability for portable and energy-conscious applications.

Key Features

  • Equipped with an STM32L4 ultra-low-power MCU, featuring an ARM Cortex-M4 core.
  • Supports external Switched-Mode Power Supply (SMPS) for enhanced power efficiency.
  • Provides Arduino Uno V3 compatible and ST Morpho expansion headers for versatile connectivity.
  • Integrated ST-LINK/V2-1 debugger/programmer for convenient development.
  • Designed for battery-friendly operation, suitable for portable devices.
  • Offers full access to the STM32L4 microcontroller's I/O peripherals.
  • Compatible with the extensive STM32Cube software ecosystem.

Applications

  • Wearable devices
  • Portable electronics
  • Energy-conscious embedded systems
  • Industrial sensors
  • Smart home devices

Technical Specifications

Item TypeDevelopment Board
Model NameNUCLEO-L412RB-P
MicrocontrollerSTM32L412RB
MCU CoreCortex-M4
MCU PackageLQFP64
Debug InterfaceST-LINK/V2-1
Expansion InterfacesArduino Uno V3, ST Morpho
Board Length8.24 cm
Board Width7.0 cm
Board Weight0.034 kg

Frequently Asked Questions

What microcontroller powers the NUCLEO-L412RB-P board?

The board is built around the STM32L4 series of ultra-low-power microcontrollers, specifically an STM32L412RB, featuring an ARM Cortex-M4 core running at up to 80 MHz. This MCU is optimized for power-sensitive applications requiring efficient processing and extended battery life.

What expansion options are available on this Nucleo board?

The NUCLEO-L412RB-P includes both Arduino Uno V3 compatible shield connectors and ST Morpho headers. This combination provides extensive access to the MCU's GPIOs and peripherals, allowing for versatile hardware expansion and integration with a wide range of add-on modules and custom circuits.

How is programming and debugging handled on the NUCLEO-L412RB-P?

The board integrates an ST-LINK/V2-1 debugger/programmer, eliminating the need for an external debugging tool. It supports USB drag-and-drop programming, virtual COM port, and mass storage for convenient firmware updates and debugging within various IDEs like STM32CubeIDE and Keil MDK.

What software ecosystem supports the STM32 NUCLEO-L412RB-P?

The board is fully supported by the comprehensive STM32Cube software ecosystem, which includes STM32CubeIDE for development, STM32CubeMX for configuration, and a wide array of HAL and LL libraries. This ensures a robust and efficient development experience for embedded applications.

Package Includes

  • 1 x STMicroelectronics NUCLEO-L412RB-P Development Board

Additional Information

Weight 0.034 kg
Dimensions 8.24 × 7 cm
