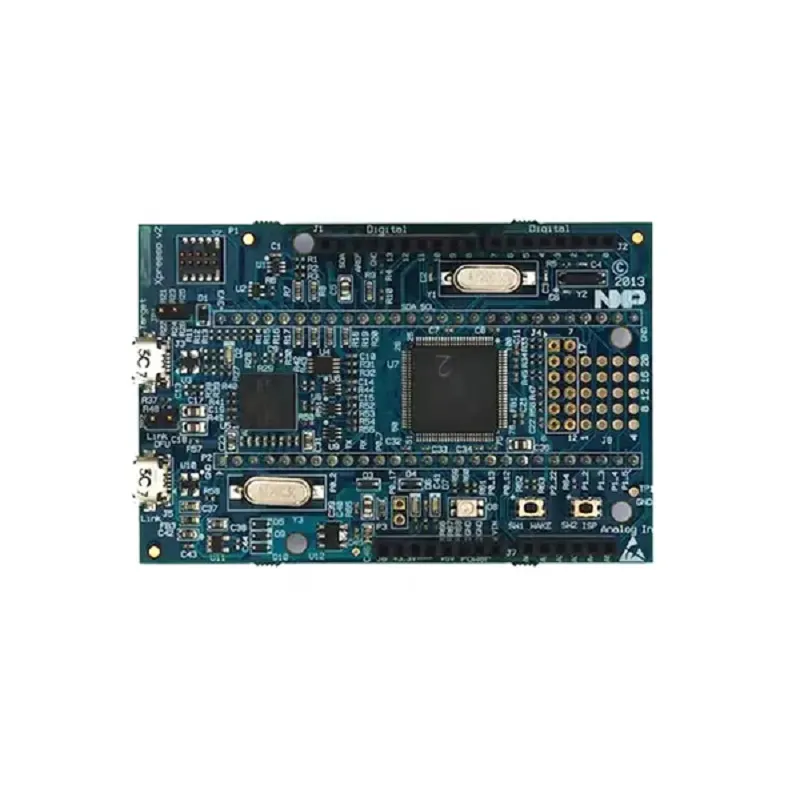

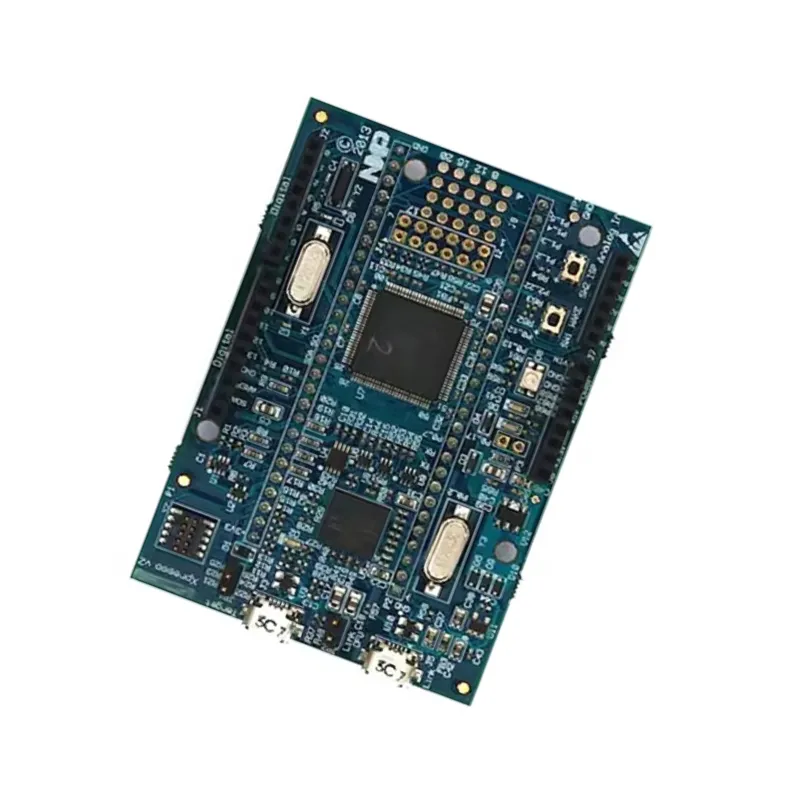

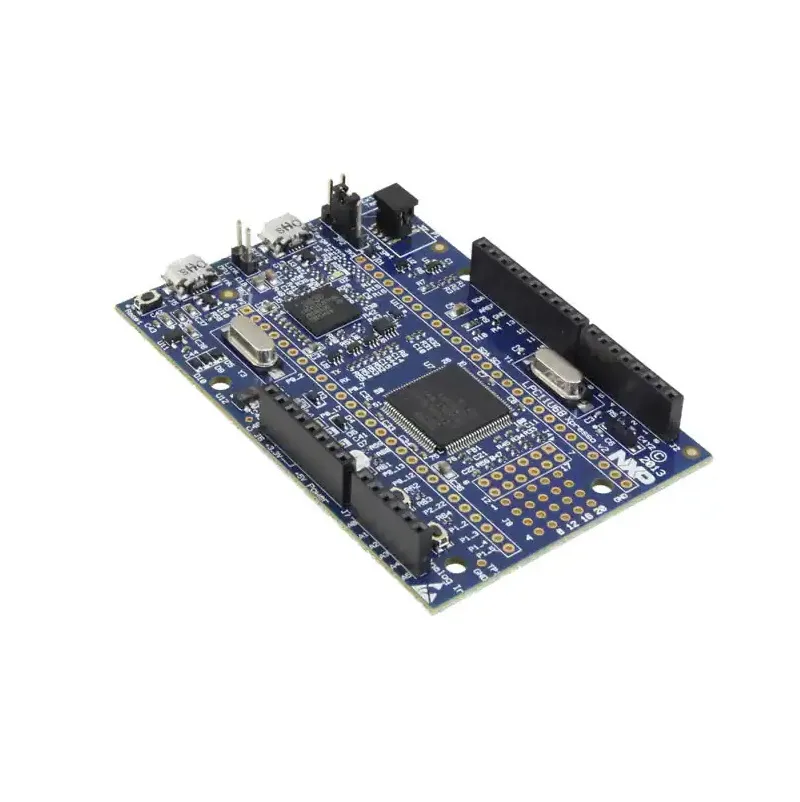

NXP Semiconductors LPC11U68 MCU Dev Board w/ JTAG & UNO Connectors
The NXP Semiconductors LPC11U68 Development Board provides an accessible platform for embedded system prototyping, featuring the ARM Cortex-M0+ LPC11U68 MCU with integrated JTAG debugging capabilities. It offers Arduino UNO expansion connectors, facilitating rapid prototyping with a wide range of shields.
Features
- Features NXP Semiconductors LPC11U68 ARM Cortex-M0+ MCU operating at up to 50 MHz for efficient processing.
- Integrated JTAG debugger and Arduino UNO expansion headers for versatile development and prototyping.
- Equipped with up to 256 KB flash, 36 KB SRAM, and 4 KB EEPROM for robust application storage.
- Wide operating voltage range (2.4 V to 3.6 V) and extended temperature support (-40 °C to 105 °C).
Out of stock
The NXP Semiconductors Development Board showcases the LPC11U6x microcontroller family, specifically the LPC11U68, an ARM Cortex-M0+ based 32-bit MCU engineered for low-cost and energy-efficient embedded applications. Operating at frequencies up to 50 MHz, this board provides substantial processing power for its class, complemented by a two-stage pipeline and fast single-cycle I/O access crucial for real-time applications. Its memory architecture includes up to 256 KB of on-chip flash, 36 KB of main SRAM, and an additional 4 KB EEPROM, offering ample space for firmware and data.
Peripheral support on the LPC11U68 is extensive, featuring a DMA controller for efficient data transfers, a CRC engine for data integrity, and a full-speed USB device controller that supports XTAL-less low-speed mode. Connectivity options include two I2C-bus interfaces, up to five USARTs, and two SSP interfaces for robust communication. A PWM/timer subsystem with six configurable multi-purpose timers, a Real-Time Clock, a 12-bit ADC, and a temperature sensor further enhance its versatility, making it suitable for a wide array of embedded projects requiring precise control and sensing.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 17 × 10 × 3 cm |
