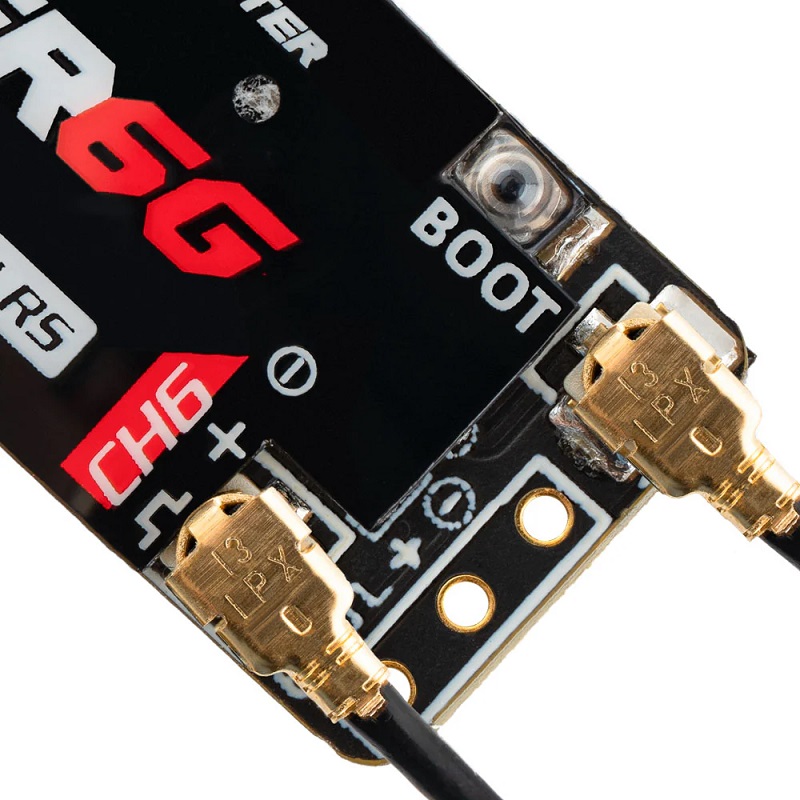

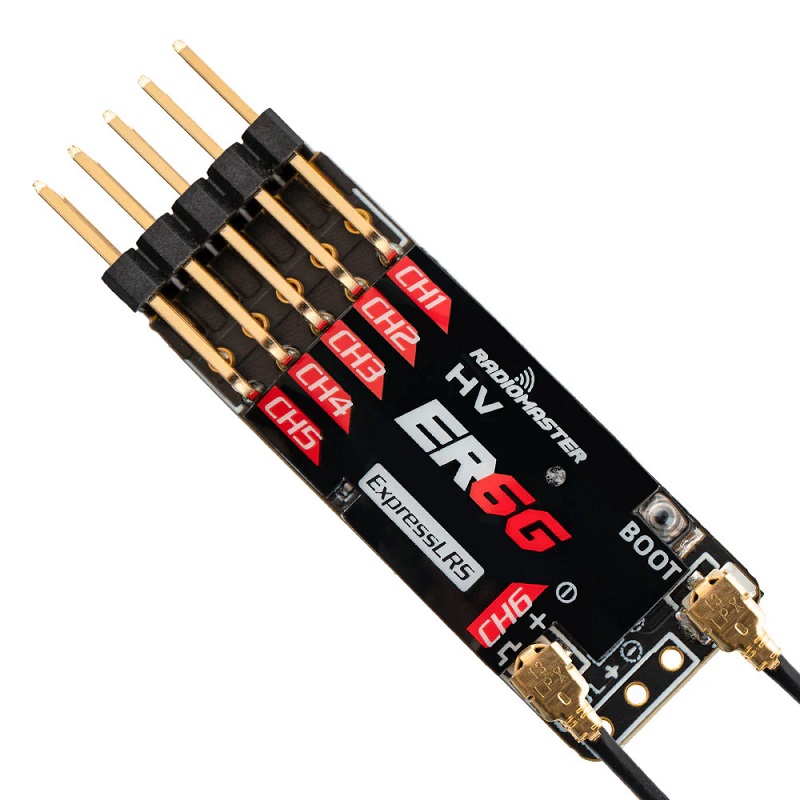

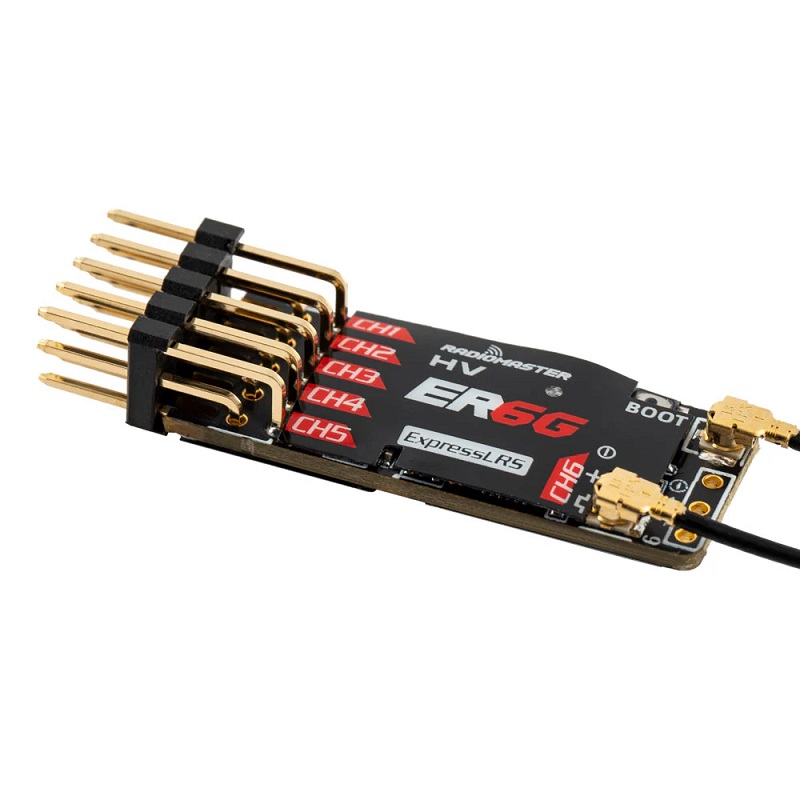

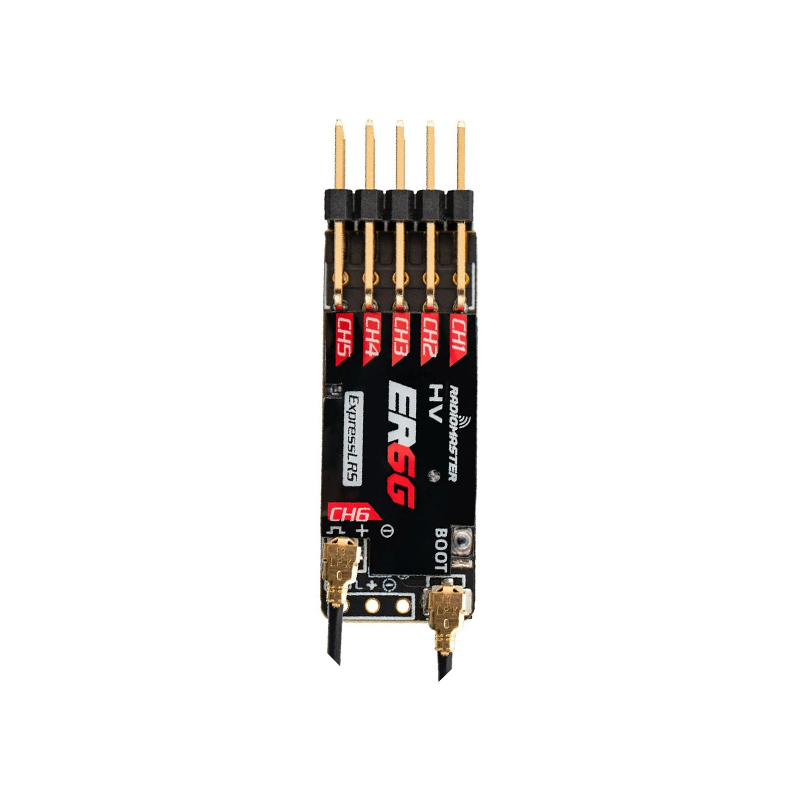

RadioMaster ER6G 2.4GHz ELRS PWM Receiver
The RadioMaster ER6G is a 2.4GHz ExpressLRS PWM receiver delivering long-range, low-latency control for fixed-wing and glider applications. It features 6 PWM servo channels, automatic voltage telemetry detection, and supports Wi-Fi firmware updates via a built-in web interface.
Features
- ExpressLRS 2.4GHz protocol for ultra-long range and high-speed, low-latency control.
- 6-channel PWM output for direct servo control, ideal for fixed-wing aircraft and gliders.
- Automatic voltage telemetry for both receiver and external flight battery (3.0-26V detection).
- Wi-Fi-enabled for easy firmware updates and configuration via a built-in WEBUI.
- Compact, optimized PCB design with a 15cm high-sensitivity antenna for stable signal reception.
Out of stock
The RadioMaster ER6G receiver leverages the ExpressLRS open-source protocol to provide a robust RF link characterized by minimal latency and extended operational range. Its electrical design supports a wide input voltage range from 3.5V to 8.4V, accommodating direct power from a 1S LiPo or regulated BEC sources, ensuring compatibility with a variety of power systems.
Engineered for reliability, the receiver incorporates an optimized PCB layout that minimizes noise and enhances signal integrity. The dual-antenna design, coupled with a telemetry output power of up to 50mW, ensures a stable bidirectional data link even in challenging RF environments, making it a dependable choice for long-distance FPV and autonomous flight operations.
Additional Information
| Weight | 0.026 kg |
|---|---|
| Dimensions | 5 × 9 × 3 cm |
