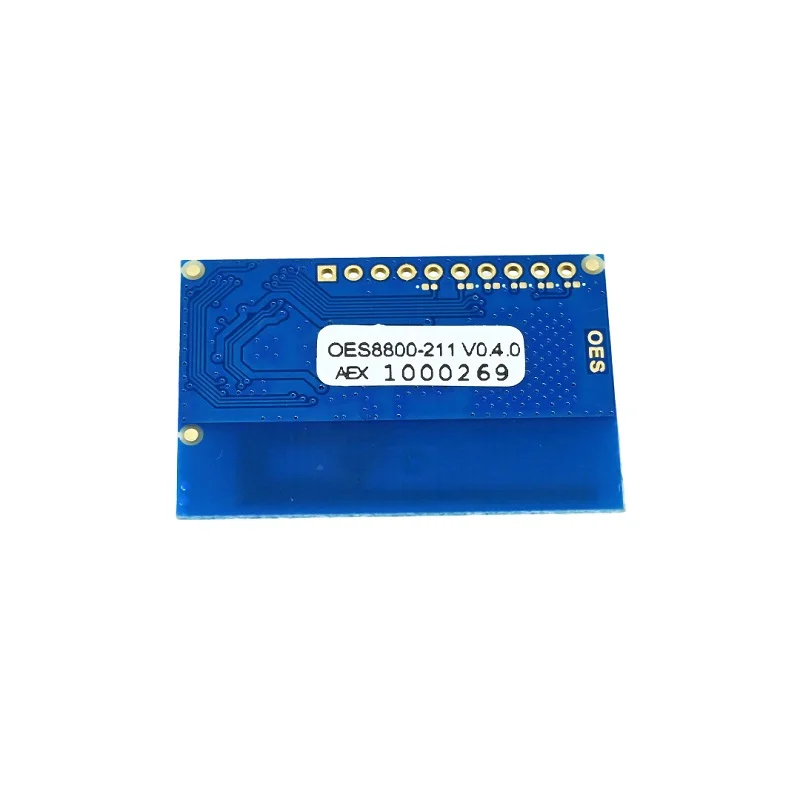

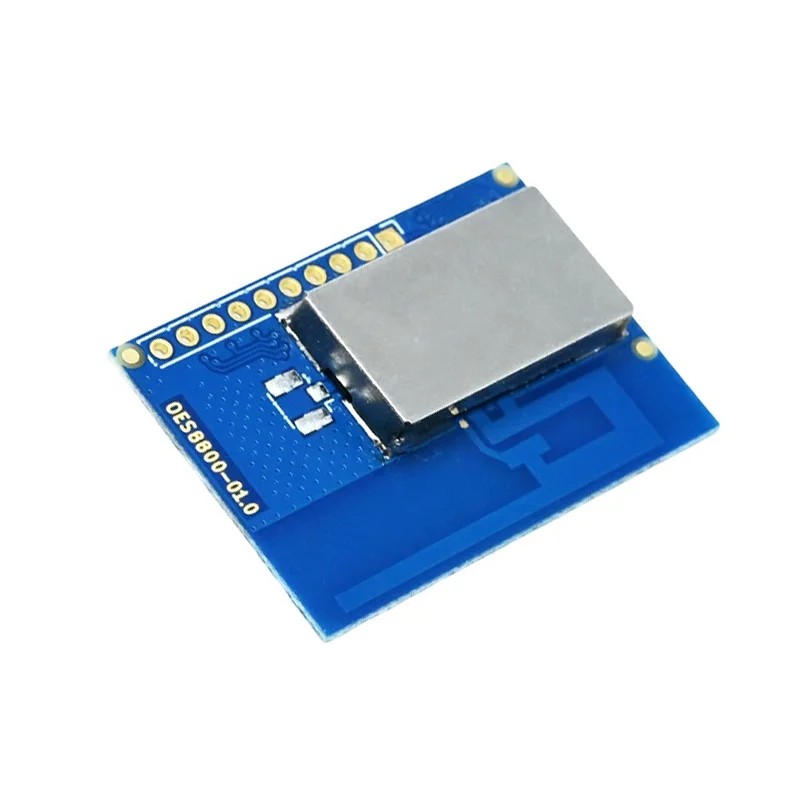

OES8800-211 BLE 5.3 Plug-in Board
The OES8800-211 is a fully BLE 5.3 compliant plug-in transceiver board with an integrated antenna, designed for reliable wireless communication in IoT and smart metering applications. It operates from 1.7V to 3.8V, supports OTA firmware updates, and delivers robust performance from -40°C to +125°C.
Features
- Fully compliant with Bluetooth Low Energy 5.3 standard for modern IoT connectivity.
- Integrated on-board antenna enables plug-and-play operation without external RF components.
- Supports Over-The-Air (OTA) firmware upgrades for remote device management and updates.
- High output power of 8 dBm and excellent receiver sensitivity down to -102 dBm at 125 kbps for extended range and reliable links.
- Wide operating voltage range (1.7V to 3.8V) and industrial temperature rating (-40°C to +125°C) for robust deployment in harsh environments.
Out of stock
The OES8800-211 BLE 5.3 Plug-in Board is a compact, surface-mountable wireless transceiver module engineered for seamless integration into IoT endpoints and smart metering systems. It leverages the Bluetooth 5.3 specification to provide enhanced low-energy performance, supporting data rates from 125 kbps to 2 Mbps to balance throughput and power efficiency for periodic telemetry data.
Built for industrial reliability, the module features a wide supply voltage tolerance compatible with single-cell Li-ion batteries or regulated DC supplies, and its extended operating temperature range ensures stable performance in outdoor or thermally challenging installations. The integrated antenna simplifies design-in, while three configurable GPIO pins offer flexibility for interfacing with sensors, LEDs, or control signals, making it a versatile core for building wireless sensor nodes and automated meter reading (AMR) devices.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.2 × 2.1 cm |
