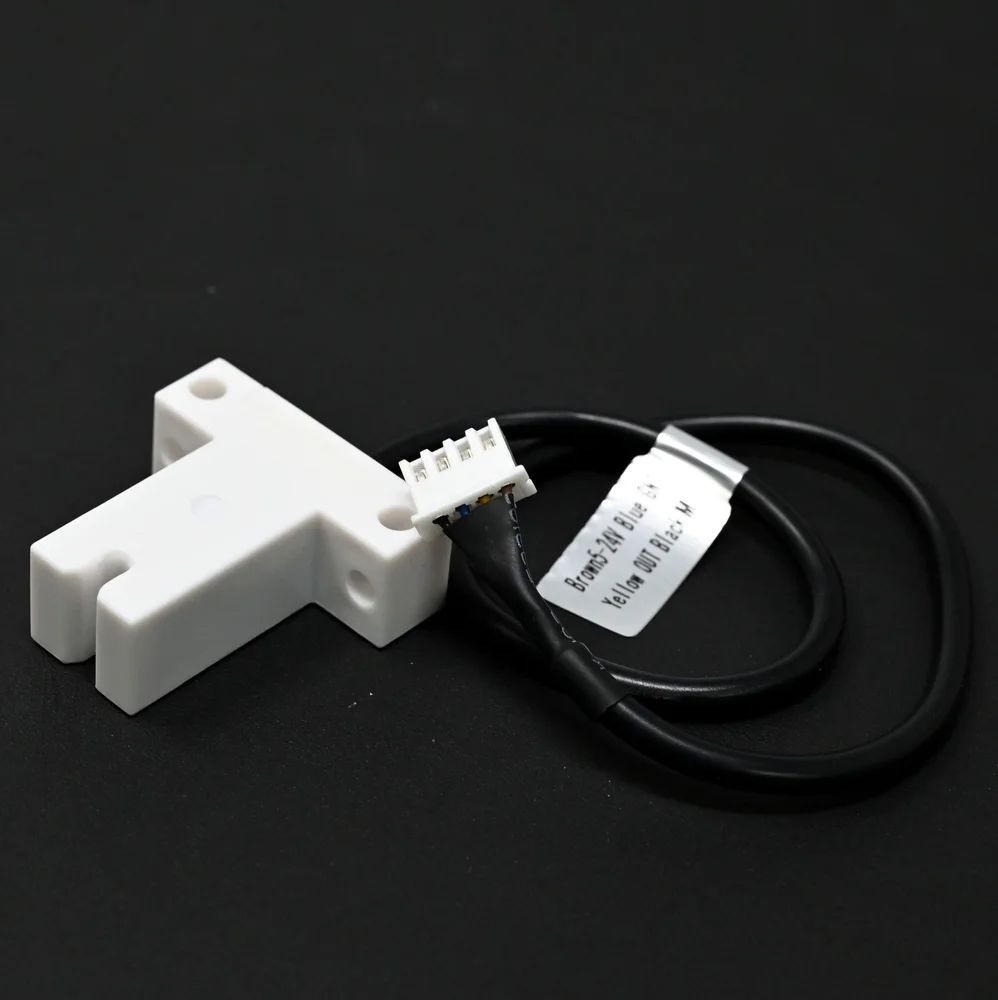

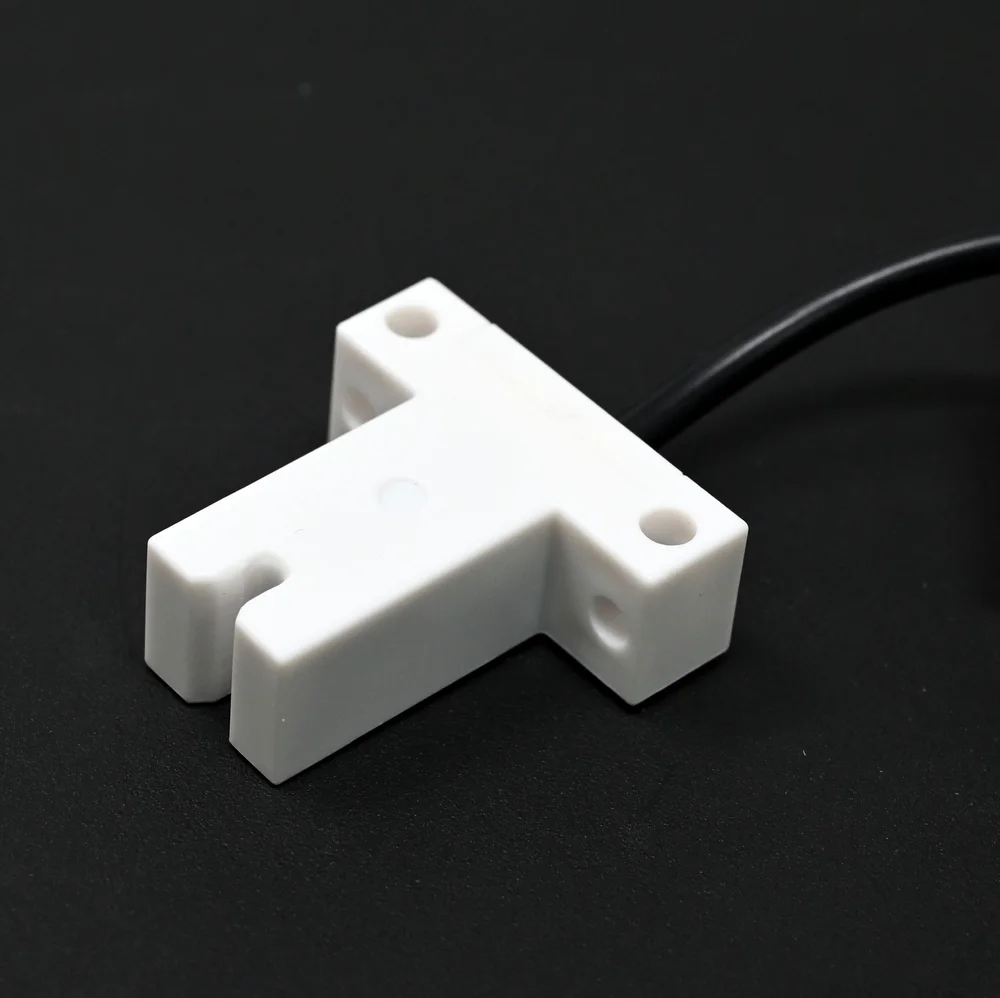

Pro-Range XKC-Y27C-NPN Non-Contact Liquid Level Sensor - DC 5-24V, 3mm Range, IP67
The Pro-Range XKC-Y27C-NPN is a non-contact capacitive liquid level sensor designed for DC 5-24V control systems. It detects liquid presence through container walls up to 3mm thick, providing an NPN open-collector output for easy integration with PLCs, microcontrollers, and industrial automation panels.
Features
- Non-contact capacitive sensing through container walls up to 3mm thick
- Wide operating voltage range from 5V to 24V DC
- Open-collector NPN output for direct PLC and microcontroller interface
- IP67 waterproof rating for reliable operation in damp or washdown environments
- Extended operating temperature range from -20°C to +85°C
Out of stock
The Pro-Range XKC-Y27C-NPN sensor utilizes a capacitive sensing principle to detect the presence of liquids without physical contact. This method prevents contamination, reduces wear, and is ideal for hygienic or corrosive applications. The sensor’s sensitivity can be adjusted to accommodate different container materials and wall thicknesses.
Featuring a robust IP67-rated housing, this sensor is built to withstand demanding industrial environments, including exposure to moisture and dust. Its fast response time ensures timely detection for process control and safety monitoring systems, making it a reliable component for automated liquid management.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
