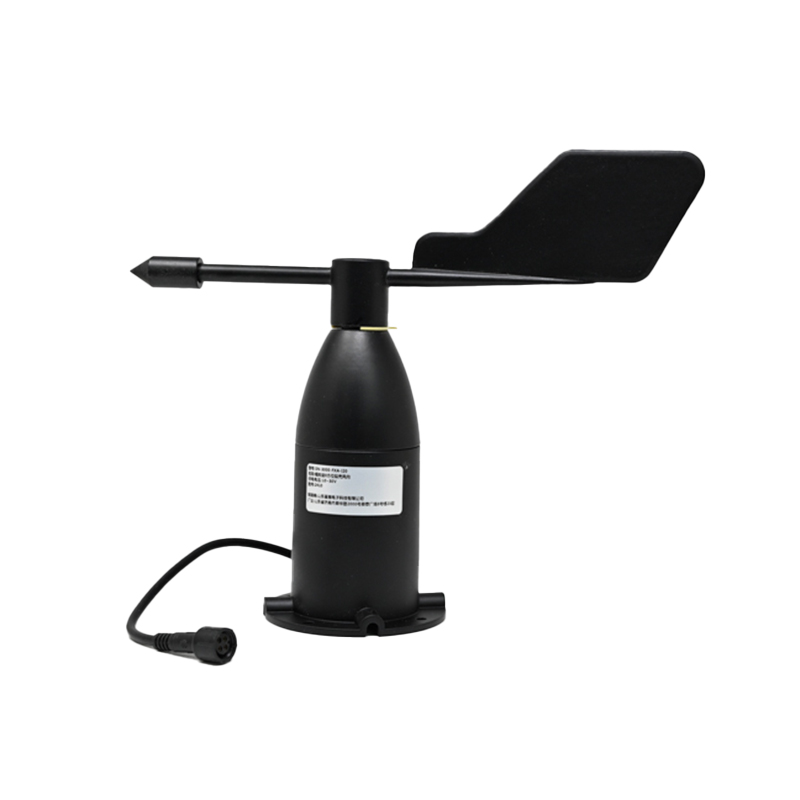

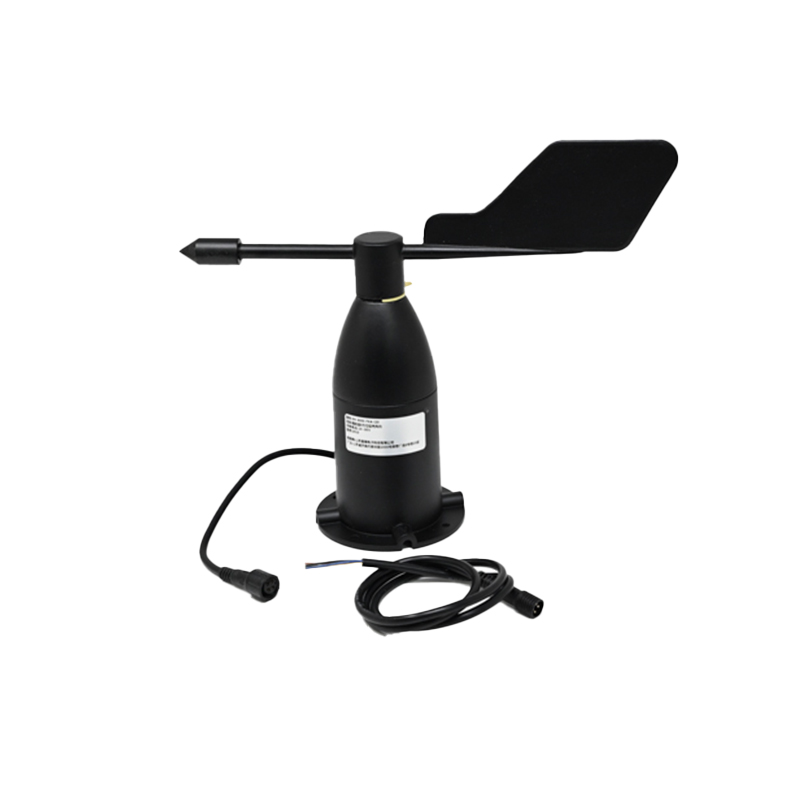

Pro-Range SN-3000-FXA-I20-8 Wind Direction Sensor, 8-Direction, 4-20mA Output, Aluminum Shell
The Pro-Range SN-3000-FXA-I20-8 is an industrial-grade wind direction sensor featuring a rugged aluminum alloy housing and a standard 4-20mA analog output. It provides precise 8-direction wind measurement and is designed for seamless integration into weather stations, environmental monitoring systems, and industrial PLCs with a wide 10-30V DC supply range.
Features
- Industrial 4-20mA analog output for robust signal transmission over long distances.
- Measures wind direction across 8 precise cardinal and intercardinal points.
- Constructed with a corrosion-resistant, plastic-coated aluminum alloy housing for long-term outdoor durability.
- Wide operating voltage range from 10V to 30V DC with low power consumption (≤0.2W).
- Fast response time (≤0.5 seconds) and high accuracy (±1°) for real-time monitoring.
Out of stock
The SN-3000-FXA-I20-8 wind direction sensor utilizes a precision mechanical bearing system with low rotational resistance to deliver accurate and responsive wind Vector Technics data. Its aluminum shell is treated with a protective plastic spray coating, providing excellent resistance to corrosion, erosion, and UV exposure, making it suitable for harsh marine, agricultural, and industrial environments.
The sensor generates a linear 4-20mA current signal proportional to wind direction, which is immune to voltage drop over extended cable runs, ensuring reliable data acquisition for SCADA, PLC, and data logger systems. It is designed for both three-wire and four-wire connection schemes, offering flexibility for various installation and wiring configurations.
Additional Information
| Weight | 0.31 kg |
|---|---|
| Dimensions | 25 × 21 × 11 cm |
