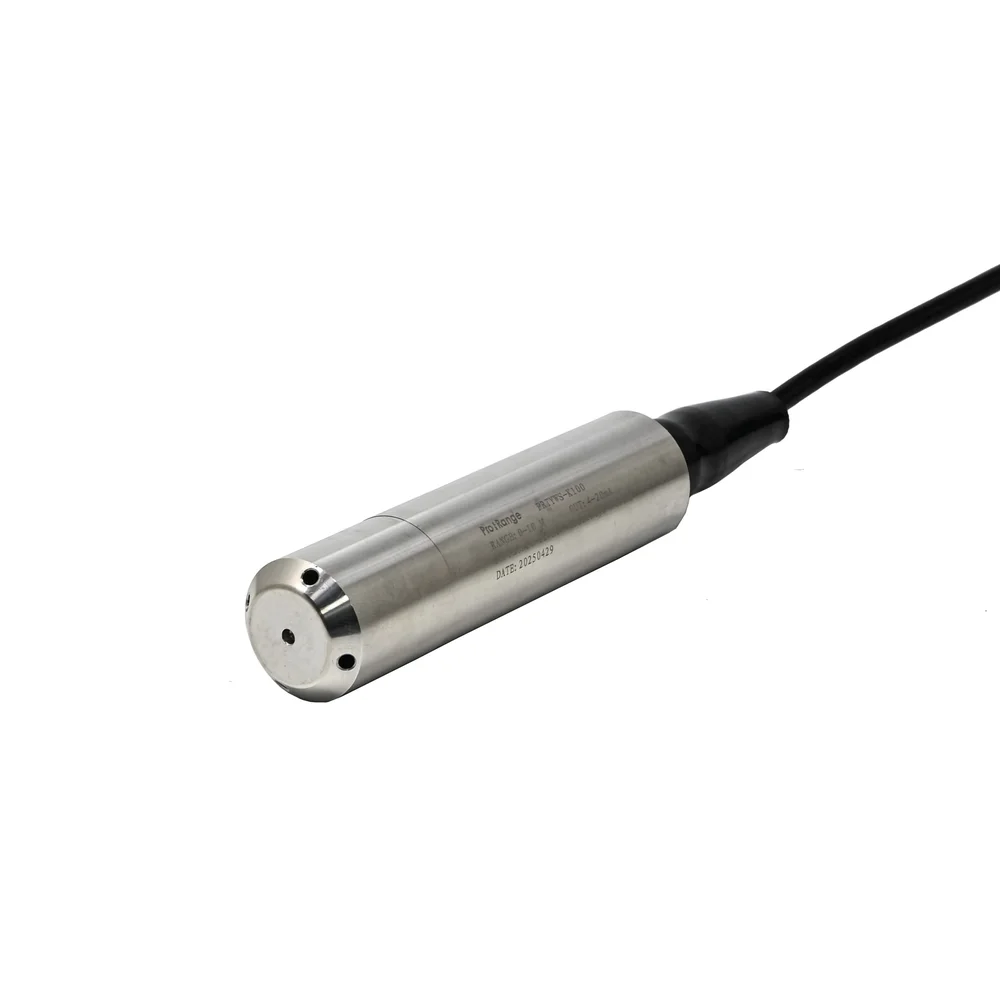

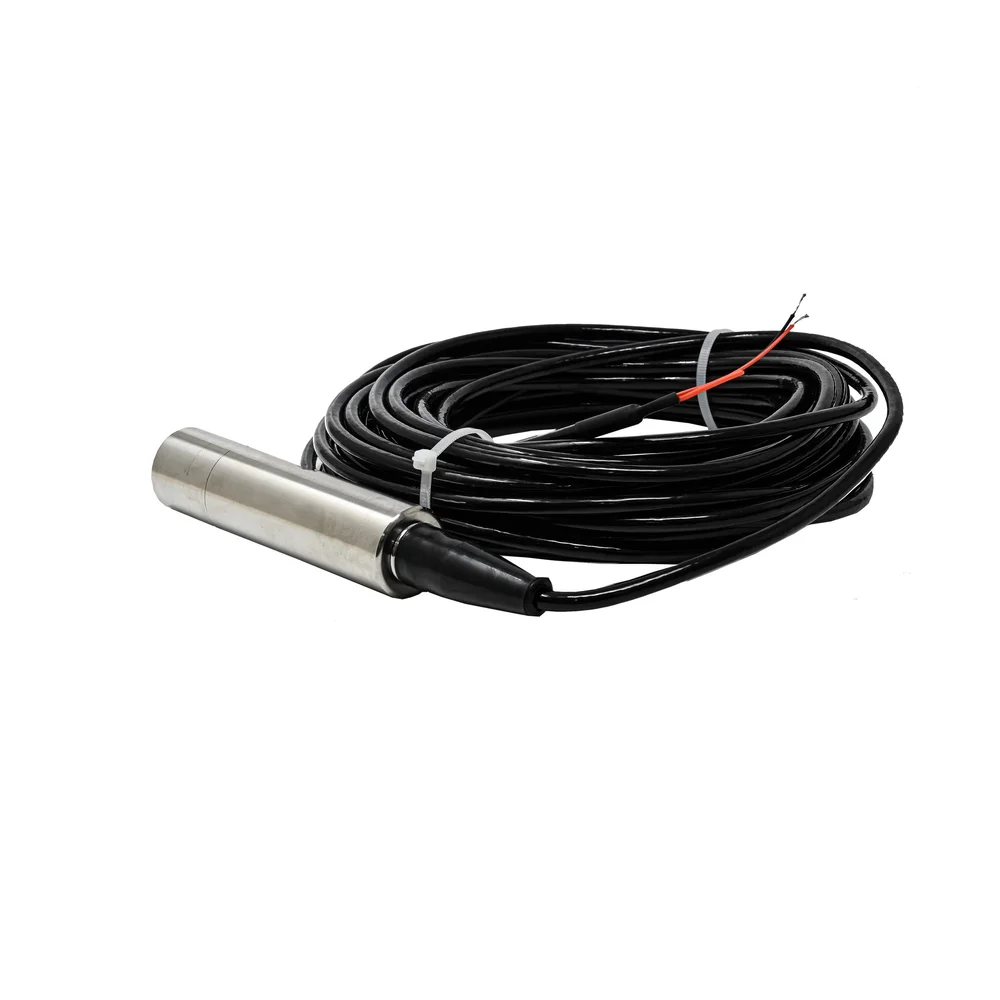

Pro-Range PRTYWS-K100 Liquid Level Sensor - 0-10m Range, 4-20mA Output
The Pro-Range PRTYWS-K100 is a 4-20mA output liquid level sensor designed for industrial monitoring of water, oil, and similar liquids up to 10 meters. It operates from a 10-32V DC supply and is built for reliable integration into PLCs, SCADA systems, and industrial control panels.
Features
- 0 to 10-meter liquid level measurement range with high accuracy and stability.
- Standard 4-20mA analog output for robust, long-distance signal transmission to PLCs and controllers.
- Wide 10-32V DC operating voltage range compatible with industrial power supplies.
- Durable, corrosion-resistant construction suitable for harsh environments and various liquids.
- Compact 28.2mm diameter design for easy installation in tanks, reservoirs, and process vessels.
Out of stock
The Pro-Range PRTYWS-K100 liquid level sensor employs a pressure-sensing principle to provide accurate hydrostatic level measurement. Its 4-20mA current loop output ensures high noise immunity and stable signal transmission over extended cable runs, making it ideal for integration into industrial automation and process control systems.
Built with corrosion-resistant materials, the sensor is engineered for long-term reliability in demanding applications such as wastewater treatment, chemical storage, and fuel tank monitoring. The unit is designed to withstand a working pressure of up to 100 kPa, ensuring performance integrity in pressurized or deep vessel installations.
Additional Information
| Weight | 0.735 kg |
|---|---|
| Dimensions | 17 × 3 × 2.82 cm |
