Pro-Range PR19C-PA-006 Pressure Sensor 0-0.6MPa, 4-20mA Output, G1/4 Thread, 1m Cable
The Pro-Range PR19C-PA-006 is a compact industrial pressure transmitter delivering a stable 4-20mA analog output signal for pressures from 0 to 0.6 MPa. Featuring a G1/4 threaded connection and a 1-meter integral cable, it is designed for direct integration into PLCs, DCS, and industrial control systems requiring reliable pressure monitoring.
Features
- Measures gauge pressure from 0 to 0.6 MPa with high accuracy.
- Provides a stable, industry-standard 4-20mA two-wire analog output signal.
- Features a G1/4 threaded port for robust, leak-resistant process connection.
- Includes a 1-meter shielded cable for convenient wiring to control systems.
- Operates from a wide 10-32 VDC supply voltage for industrial compatibility.
Out of stock
The PR19C-PA-006 pressure sensor utilizes an internal sensing element, likely a piezoresistive strain gauge, coupled with precision signal conditioning circuitry to convert applied pressure into a proportional 4-20mA current loop signal. This two-wire output provides excellent noise immunity over long cable runs, making it ideal for industrial environments.

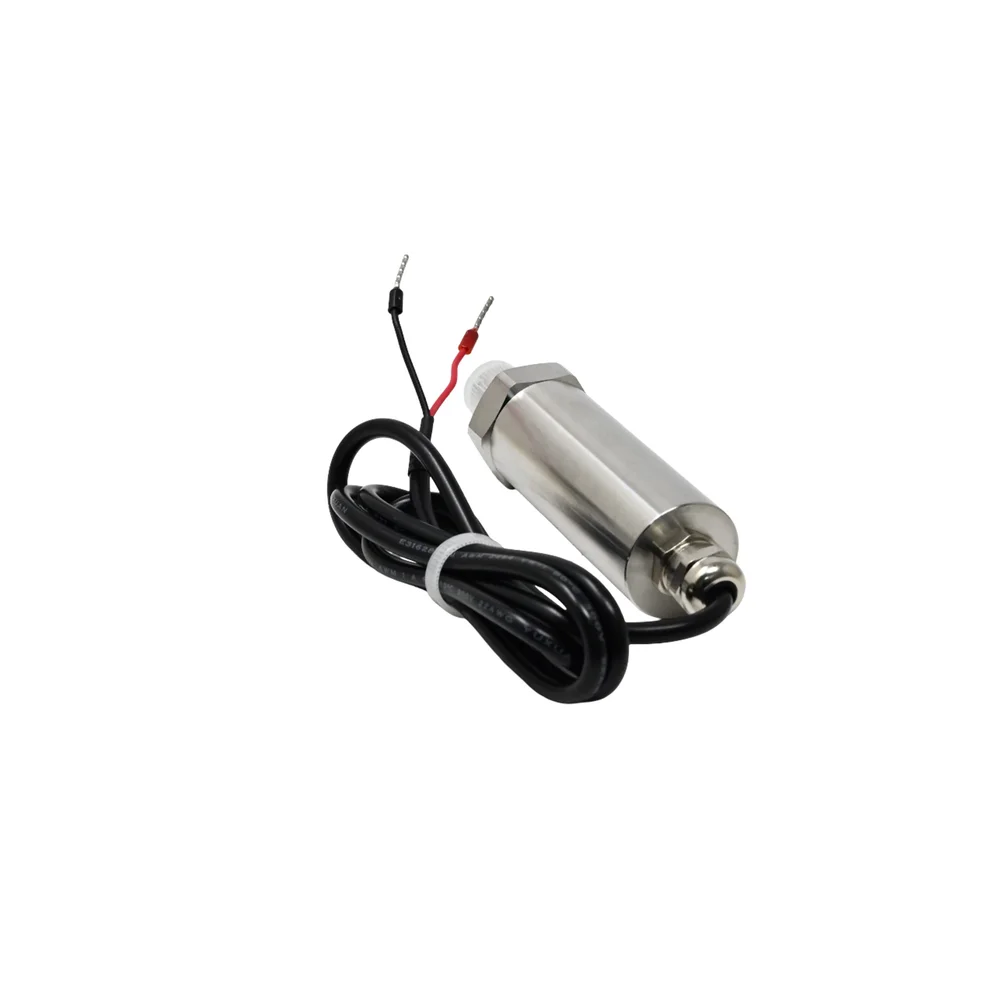

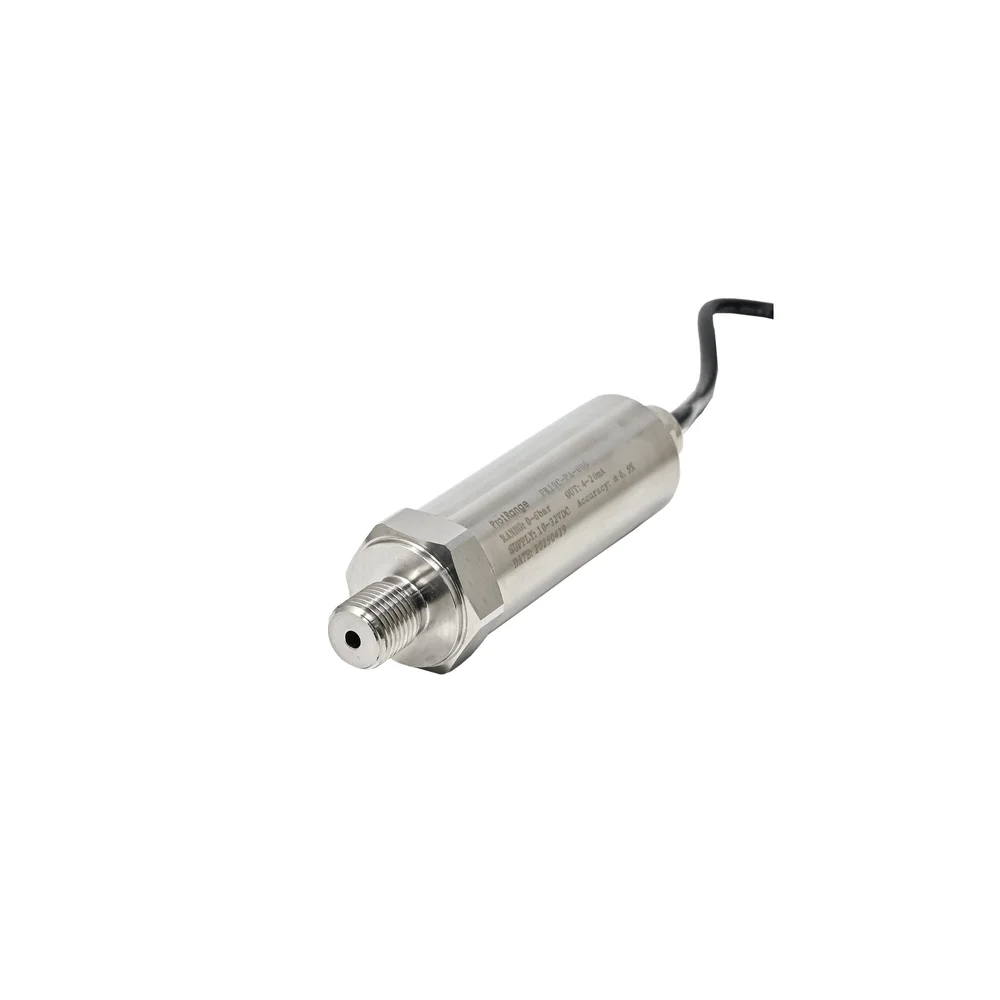

Housed in a compact, durable stainless steel body with a 30mm diameter and 92mm length, the sensor is built for reliable performance in demanding applications. Its wide operating voltage range ensures compatibility with standard industrial power supplies, while the G1/4 thread offers a versatile connection for hydraulic, pneumatic, and process fluid lines.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 9.2 × 3 × 3 cm |
