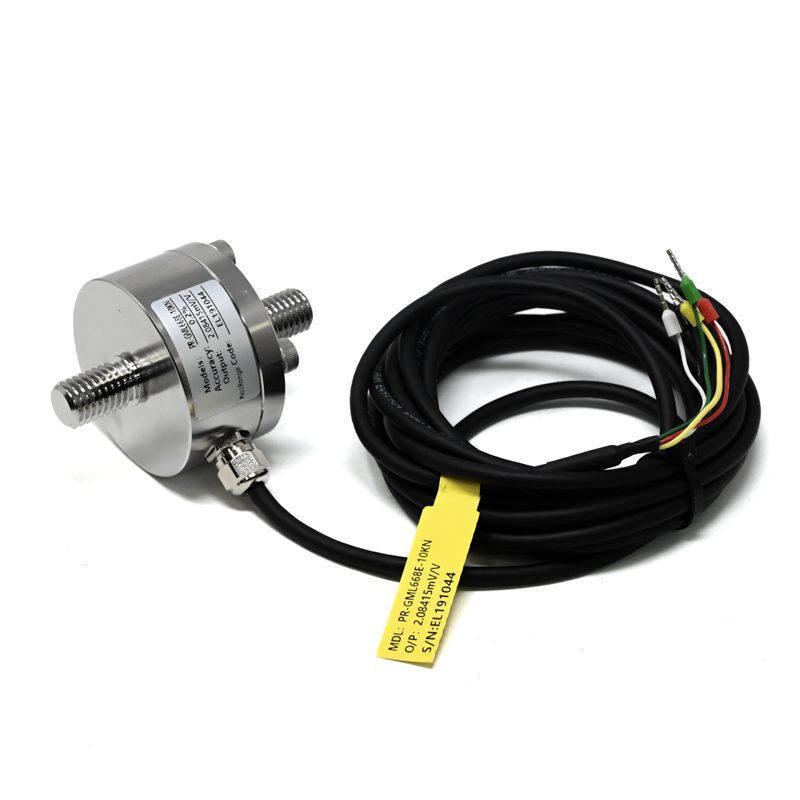

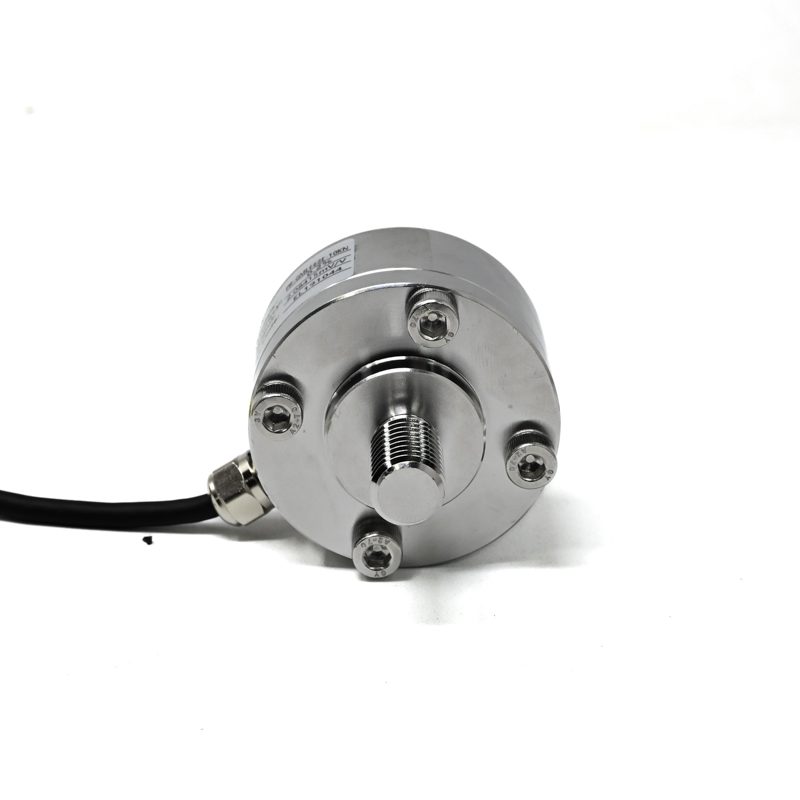

Pro-Range GML668E Tension Compression Force Sensor 10KN - ±0.2% F.S Output 1.5±10% mV/V
The Pro-Range GML668E is a miniature tension/compression load cell rated for 10 kN, featuring metal foil strain gauge technology with a high accuracy of ±0.2% F.S. It provides a 1.5±10% mV/V output signal compatible with standard instrumentation amplifiers and data acquisition systems for precise force measurement in compact industrial and automation applications.
Features
- High-precision miniature load cell with ±0.2% F.S accuracy
- Rated for 10 kN tension and compression force measurement
- Stable 1.5±10% mV/V output signal for instrumentation
- Robust IP66-rated housing for harsh industrial environments
- Wide operating temperature range from -20°C to +80°C
Out of stock
The GML668E load cell utilizes a metal foil strain gauge bonded to a high-strength alloy structure, translating applied force into a precise, proportional millivolt-per-volt (mV/V) output. This Wheatstone bridge configuration ensures excellent linearity, hysteresis, and repeatability, making it suitable for demanding measurement tasks.
Engineered for durability, the sensor features an IP66 ingress protection rating, safeguarding against dust ingress and powerful water jets. Its compact form factor and wide -20°C to +80°C operating temperature range make it ideal for integration into space-constrained automation systems, robotic end-effectors, and process control equipment where reliable force feedback is critical.
Additional Information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 16 × 10 × 4 cm |
