Pro-Range GML668B Tension Compression Force Sensor 200N - ±0.1% F.S Output 2.0±10% mV/V
The Pro-Range GML668B is a high-precision miniature force sensor with a 200N rated load, designed for tension and compression measurements in confined spaces. It features a 2.0±10% mV/V output and is compatible with standard 5-15 VDC excitation for integration into industrial automation, robotics, and test stands.
Features
- High-precision 200N tension/compression load cell with ±0.1% F.S. comprehensive error.
- Compact stainless steel housing with IP66 protection for durable operation in industrial environments.
- Standard 2.0±10% mV/V output signal compatible with 5-15 VDC bridge excitation.
- Wide operating temperature range from -20°C to +80°C.
- Metal foil strain gauge technology ensures long-term stability and repeatability.
Out of stock

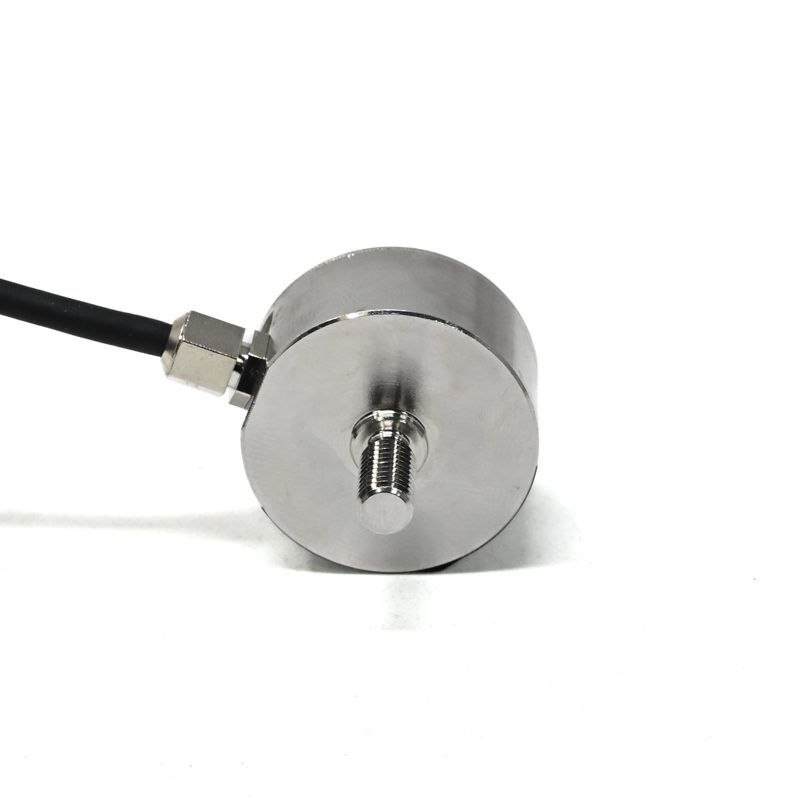

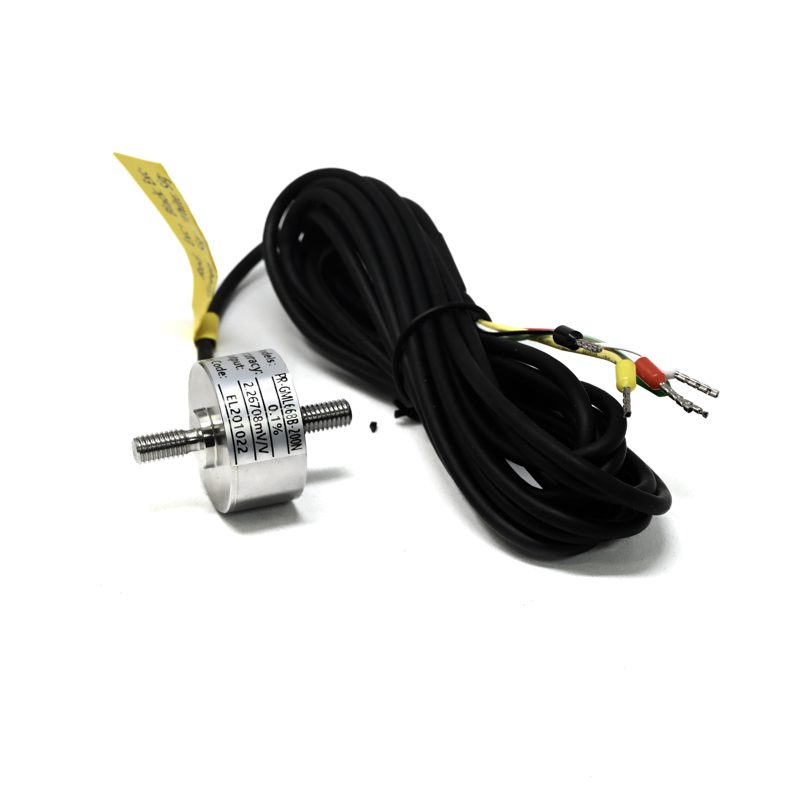

The Pro-Range GML668B is a precision force sensor utilizing a bonded metal foil strain gauge within a robust stainless steel housing. This Wheatstone bridge configuration provides a highly linear and stable millivolt-per-volt output proportional to the applied force, making it ideal for integration into data acquisition systems, PLCs, and custom instrumentation.
Engineered for both tension and compression loading up to 200 Newtons, the sensor’s miniature form factor allows installation in space-constrained applications without sacrificing performance. The IP66-rated enclosure protects the internal strain gauge from dust ingress and water jets, ensuring reliable operation in demanding industrial automation, robotic end-effector force feedback, and medical device testing environments.
Additional Information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 16 × 10 × 4 cm |
