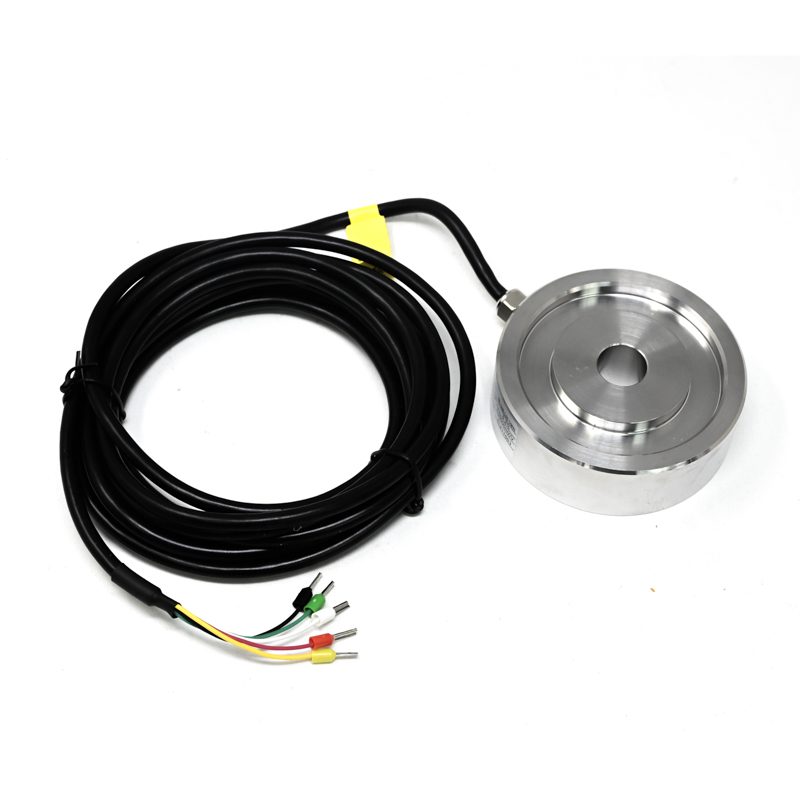

Pro-Range GML642 Force Washer Sensor 10kN - ±0.5% F.S Output 1.5±5% mV/V
The Pro-Range GML642 is a high-precision stainless steel force washer sensor (load cell) with a rated load of 10kN and an accuracy of ±0.5% F.S. It provides a 1.5±5% mV/V output signal, compatible with standard instrumentation amplifiers and industrial PLCs for force measurement and control applications.
Features
- High-Precision Force Measurement: Rated load of 10kN with a comprehensive error of ≤ ±0.5% F.S.
- Robust Stainless Steel Construction: Ensures durability and long-term stability in demanding environments.
- Compact Circular Washer Design: Ideal for integration into confined spaces and mechanical assemblies.
- Wide Operating Temperature: Functions reliably from -20°C to +80°C.
- IP66 Environmental Protection: Rated dust-tight and protected against powerful water jets.
Out of stock
The Pro-Range GML642 is a specialized force washer sensor, functioning as a compact load cell designed for direct integration into bolted joints and structural assemblies. It utilizes precision strain gauge technology bonded to a stainless steel body to convert applied force into a proportional millivolt-per-volt (mV/V) electrical signal. This analog output is stable and highly linear, suitable for connection to data acquisition systems, PLC analog input modules, or dedicated load cell amplifiers.
Engineered for industrial and R&D environments, its IP66-rated housing protects the internal sensing elements from dust ingress and powerful water jets, ensuring reliable operation. The sensor’s wide operating temperature range and high overload resistance make it a versatile component for monitoring tensile or compressive forces in machinery, structural testing rigs, and process control systems where space is constrained.
Additional Information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 16 × 10 × 4 cm |
