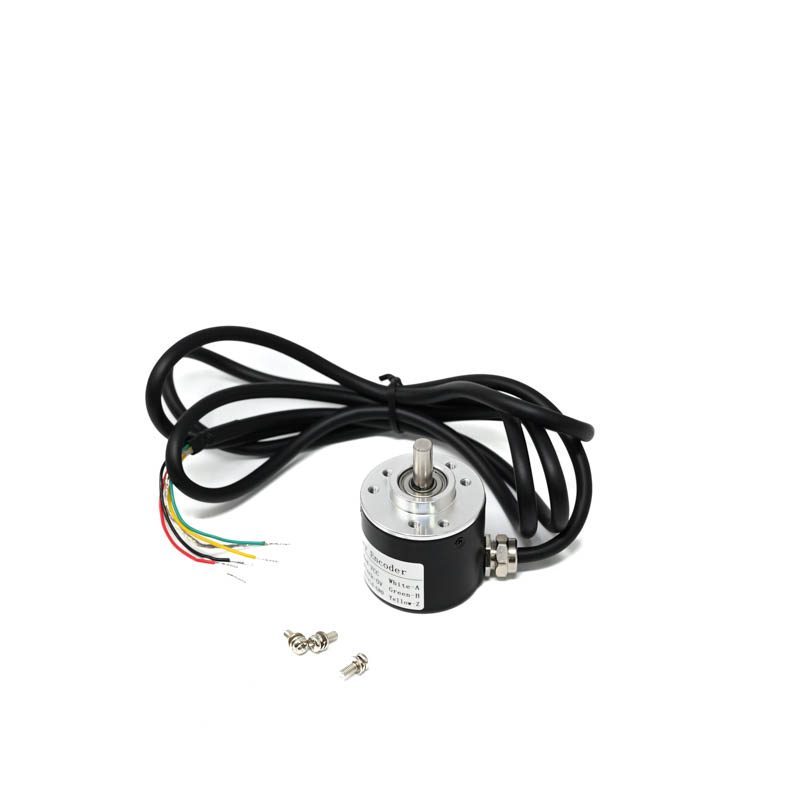

Pro-Range E38S6G5-600Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 600 PPR
The Pro-Range E38S6G5-600Z-G24F is a compact 38mm diameter rotary incremental encoder delivering 600 pulses per revolution (PPR) via photoelectric sensing. It provides ABZ 3-channel quadrature output for precise position and direction feedback, compatible with 5-24V DC industrial controllers, PLCs, and motion systems.
Features
- 600 PPR (Pulses Per Revolution) resolution for accurate angular position measurement.
- Compact 38mm diameter housing designed for space-constrained industrial and robotic installations.
- Photoelectric sensing principle ensures reliable, non-contact signal generation with high repeatability.
- ABZ 3-channel output (A, B quadrature & Z index) provides direction sensing and a mechanical zero reference.
- Wide 5-24V DC operating voltage range for flexible integration with various control system logic levels.
Out of stock
The Pro-Range E38S6G5-600Z-G24F is a photoelectric incremental encoder engineered for precise rotary motion feedback in automated systems. Utilizing an optical disc and sensor array, it generates clean digital quadrature pulses (A and B) with a 90-degree phase shift to determine both rotational displacement and direction. The integrated Z-channel provides a single index pulse per revolution for absolute reference positioning, essential for homing sequences.
Constructed with a robust housing, this encoder is built to perform reliably in industrial environments. Its wide supply voltage compatibility from 5V to 24V DC allows for direct connection to PLCs, motor drives, and microcontroller-based systems like Arduino or Raspberry Pi with appropriate interface logic. The 600 PPR resolution offers a balance between fine positional control and manageable signal frequency for most speed control applications.
Additional Information
| Weight | 0.144 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
