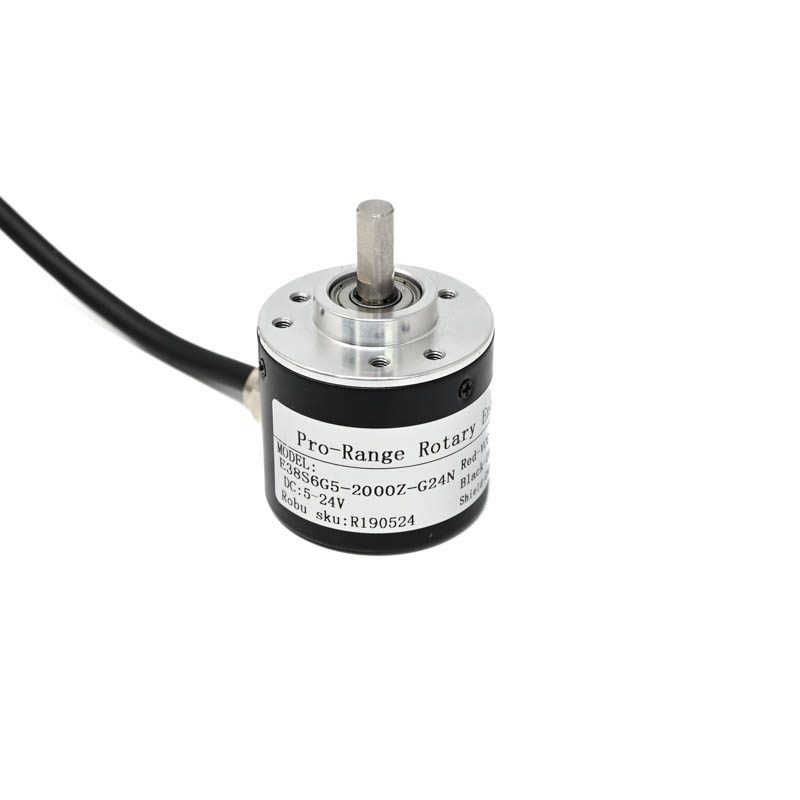

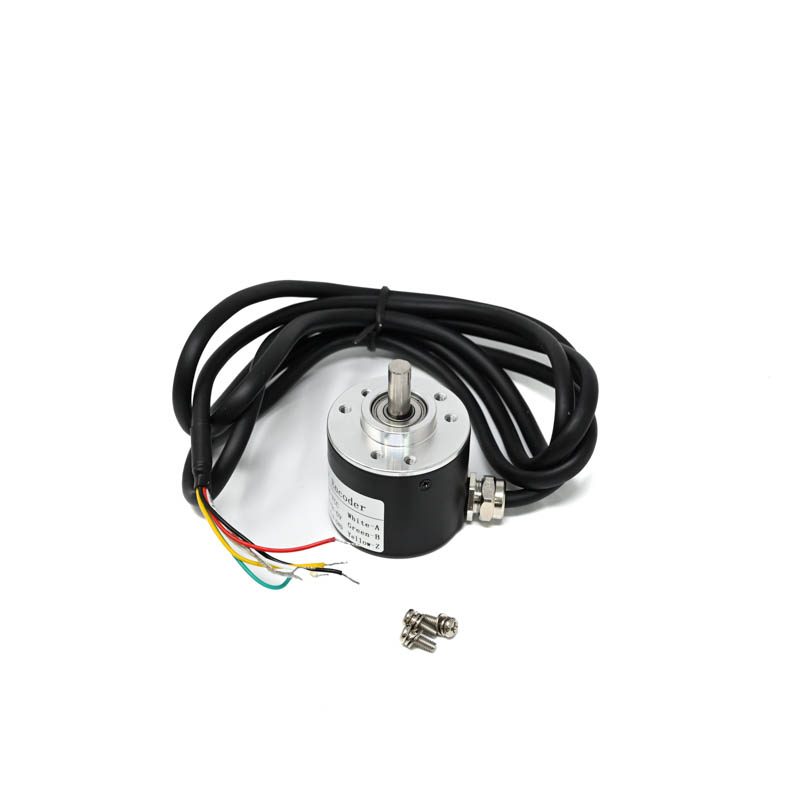

Pro-Range E38S6G5-2000Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 2000 PPR
The Pro-Range E38S6G5-2000Z-G24N is a high-precision 38mm rotary incremental encoder delivering 2000 pulses per revolution (PPR) via photoelectric sensing. Featuring ABZ 3-channel quadrature output, it provides accurate position and direction feedback for integration with PLCs, servo drives, and motion controllers operating on a 5-24V DC supply.
Features
- High-resolution 2000 PPR (Pulses Per Revolution) for precise angular position feedback.
- Compact 38mm diameter photoelectric encoder with robust industrial-grade construction.
- ABZ 3-channel quadrature output (A, B, Z index) for accurate direction and zero-position detection.
- Wide operating voltage range of 5 to 24V DC for compatibility with diverse control systems.
- High-speed capability rated for up to 6000 RPM for demanding motion control applications.
Out of stock
The Pro-Range E38S6G5-2000Z-G24N incremental encoder employs an internal photoelectric sensing mechanism, where a light source, code disc, and photodetector generate precise square wave pulses. The ABZ output channels provide two 90-degree phase-shifted quadrature signals (A & B) for direction sensing and incremental counting, plus a single pulse per revolution Z-channel signal for homing or reference position marking.
Engineered for durability in industrial environments, its construction ensures reliable operation under vibration and in non-extreme contaminant conditions. The wide 5-24V DC input range allows direct interfacing with standard industrial logic levels, servo amplifiers, and programmable logic controllers (PLCs) without additional signal conditioning.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
