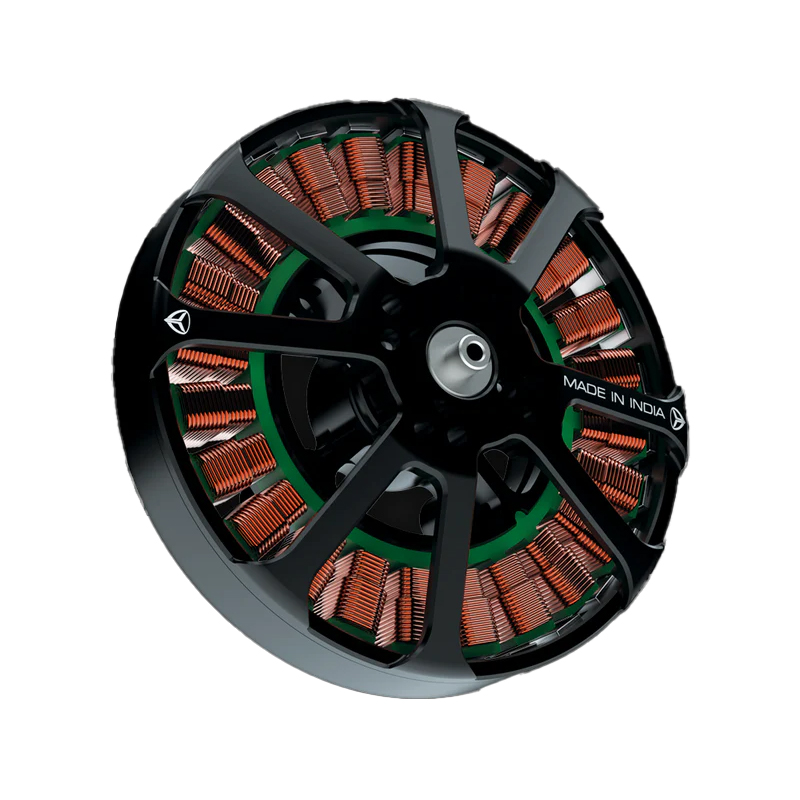

Vector Technics Technics Vector Technics 6008 SL 340 KV Motor
The Vector Technics Technics Vector Technics 6008 SL 340 KV is a high-performance industrial brushless motor engineered for demanding UAV applications, operating on a 24V to 48V (6S-12S LiPo) power range and delivering up to 6.5 kg of thrust with 20-22 inch propellers.
Features
- 340 KV brushless motor optimized for 6S to 12S LiPo battery systems (24V-48V).
- Delivers up to 6.5 kg of maximum thrust, compatible with 20 to 22-inch propellers.
- Robust 1000-hour design life with a 14-pole stator for smooth, efficient power.
- Lightweight 170-gram construction with a 6mm hardened steel output shaft.
- High-torque design with a maximum efficiency current of 20A and 480W power handling.
Out of stock
The Vector Technics 6008 SL 340 KV motor is engineered for reliability and endurance in industrial UAV platforms. Its 14-pole stator and precision-wound windings provide high torque density and smooth operation across a wide 24V to 48V input range, making it suitable for heavy-lift cinematography, agricultural spraying, and long-endurance mapping drones.
Constructed with high-grade materials, the motor features a 6mm hardened steel shaft and advanced thermal management to operate reliably in ambient temperatures from -20°C to 80°C. The lightweight 170-gram design minimizes overall system weight while the robust mechanical structure ensures a 1000-hour operational lifespan under typical industrial duty cycles.
Additional Information
| Weight | 0.17 kg |
|---|---|
| Dimensions | 4 × 6 cm |
