Pepperl+Fuchs ENA36TL-R06DA5-1516-IO-RBD01 Absolute Rotary Encoder - IO-Link, Hollow Shaft Ø6mm, IP65/IP67

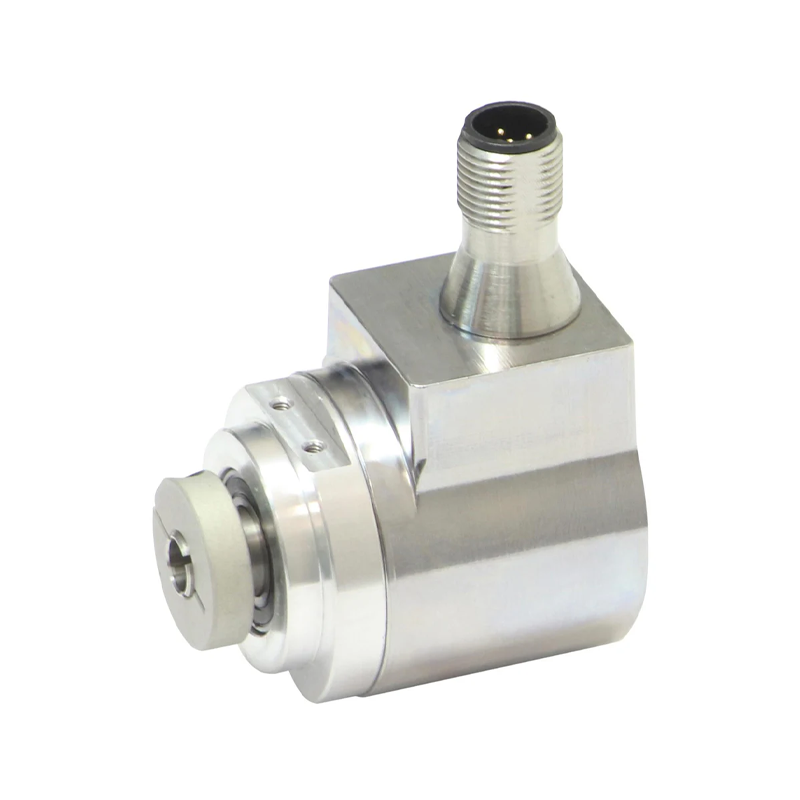

Pepperl+Fuchs ENA36TL-R06DA5-1516-IO-RBD01 Absolute Rotary Encoder - IO-Link, Hollow Shaft Ø6mm, IP65/IP67 - Image 2
SKU: SENS-2591
📋 GST Invoice Available

Pepperl+Fuchs ENA36TL-R06DA5-1516-IO-RBD01 Absolute Rotary Encoder - IO-Link, Hollow Shaft Ø6mm, IP65/IP67

₹81,199.00 (Inclusive of all taxes)
Out of Stock

The Pepperl+Fuchs ENA36TL-R06DA5-1516-IO-RBD01 is an absolute rotary encoder with an integrated IO-Link interface, designed for high-speed, high-precision position feedback in industrial automation systems. It features a 6mm recessed hollow shaft, supports programmable 31-bit resolution, and operates from an 18-30V DC supply.

Features

  • Absolute rotary encoder with magnetic Pure Line technology for wear-free operation.
  • Integrated IO-Link interface for smart communication, parameterization, and condition monitoring.
  • High-speed capability up to 12,000 RPM with a recessed hollow shaft (Ø6 mm).
  • Programmable measuring range, direction, and resolution up to 31 bits.
  • Robust IP65/IP67 rated housing for reliable performance in harsh industrial environments.

Out of stock

Description

The ENA36TL-R06DA5-1516-IO-RBD01 absolute rotary encoder utilizes advanced magnetic sampling technology to provide precise angular position data without mechanical contact, ensuring long-term reliability and eliminating wear. Its integrated IO-Link communication interface enables seamless integration into Industry 4.0 and smart factory networks, allowing for real-time process data transfer, remote parameterization, and comprehensive diagnostic functions.

Engineered for demanding industrial applications, the encoder features a rugged housing with IP65/IP67 protection against dust and water ingress. It operates within a wide 18-30V DC range and delivers high linearity (≤ ±0.1°), making it suitable for high-speed motion control, robotics, and automated machinery where accurate and stable position feedback is critical.

Key Features

  • Magnetic Absolute Sensing: Employs Pure Line magnetic technology for contactless, wear-free position detection with high long-term stability.
  • Smart IO-Link Interface: Enables bidirectional digital communication for data exchange, configuration, and predictive maintenance capabilities.
  • High-Resolution & Programmability: Offers programmable resolution up to 31 bits, along with configurable measuring range and rotation direction.
  • Robust Mechanical Design: Features a compact, recessed hollow shaft (Ø6 mm) and a durable housing rated IP65/IP67 for harsh environments.
  • High-Speed Operation: Capable of rotational speeds up to 12,000 RPM for dynamic motion control applications.
  • Integrated Diagnostics: Status LED indicators provide visual feedback on operating state and communication status.
  • Wide Operating Voltage: Supports 18-30V DC supply, compatible with standard industrial control voltages.

Applications

  • High-speed servo motor feedback and closed-loop control in industrial robotics.
  • Precise angular position measurement in automated packaging and material handling machinery.
  • Rotary axis feedback for CNC machine tools, lathes, and milling centers.
  • Integration into Industry 4.0 and smart factory networks via IO-Link for condition monitoring.
  • Motion control and positioning systems in harsh environments such as food & beverage or automotive manufacturing.

Technical Specifications

Model NumberENA36TL-R06DA5-1516-IO-RBD01
Operating Voltage18 – 30 V DC
Power ConsumptionApprox. 1.5 W
Maximum Speed12000 RPM
Shaft TypeRecessed Hollow Shaft
Shaft Diameter6 mm
Communication InterfaceIO-Link
Protection RatingIP65 / IP67
Linearity≤ ± 0.1 °
Operating HumidityUp to 98% RH (non-condensing)
Length68 mm
Width68 mm
Weight350 g

Frequently Asked Questions

What is the communication interface of this encoder and how do I connect it?

This encoder features an integrated IO-Link interface, which is a point-to-point serial communication protocol for sensors and actuators. You connect it to an IO-Link master device using a standard 3-wire or 5-wire M12 connector cable. The interface allows for digital data transfer of the absolute position value, remote configuration of parameters like resolution and direction, and access to diagnostic data for condition monitoring.

What is the maximum rotational speed and shaft load capacity?

The Pepperl+Fuchs ENA36TL encoder is rated for a maximum rotational speed of 12,000 RPM. For specific axial and radial shaft load limits, you must consult the official manufacturer's datasheet, as these values depend on the installation method and bearing type. The recessed hollow shaft design is intended for direct mounting onto a motor or machine shaft with a matching 6mm diameter.

Can I program the resolution and output parameters of this encoder?

Yes, this is a key feature. The encoder's measuring range, direction of rotation, resolution (programmable up to 31 bits), and switching outputs are fully configurable. Parameterization is performed via the IO-Link interface using configuration software (e.g., Pepperl+Fuchs' SOPAS ET) or through the connected IO-Link master, allowing for flexible adaptation to your specific application requirements.

Is this encoder suitable for use in wet or dusty environments?

Yes, the encoder housing is rated IP65 (dust-tight and protected against water jets) and IP67 (protected against temporary immersion in water up to 1 meter for 30 minutes). This makes it suitable for use in harsh industrial environments where exposure to dust, moisture, or occasional washdowns is expected, such as in food processing, packaging, or outdoor machinery.

Package Includes

  • 1 x Pepperl+Fuchs ENA36TL-R06DA5-1516-IO-RBD01 Absolute Rotary Encoder

Additional Information

Weight 0.35 kg
Dimensions 6.8 × 6.8 cm
