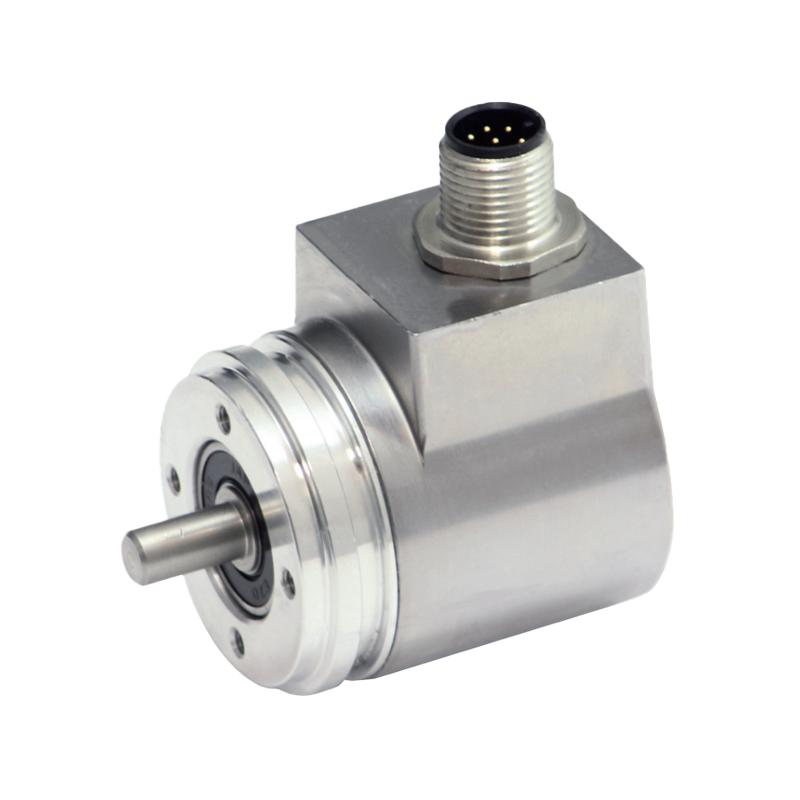

Pepperl+Fuchs ENA36TL-S06SA5-0016-IO-ABD01 Absolute Rotary Encoder - IO-Link, IP65, 6mm Shaft

This encoder features an IO-Link V1.1 interface, which is a point-to-point serial communication protocol. To connect it to a PLC, you will need an IO-Link master module compatible with your control system. The encoder acts as an IO-Link device, allowing you to read absolute position data, configure parameters like resolution and rotation direction, and access diagnostic information directly through the master port.

Magnetic sampling is a non-contact sensing method, eliminating mechanical wear between components. This results in significantly longer service life, higher reliability, and maintenance-free operation compared to optical or mechanical encoders. It also provides robust performance in environments with vibration, contamination, or temperature fluctuations.

Yes, the encoder's resolution is programmable up to 31 bits via the IO-Link interface. You can also configure the measuring range (single-turn or multi-turn behavior), the rotation direction (clockwise/increasing or counter-clockwise/decreasing), and set up digital switching signals. This flexibility allows precise adaptation to specific machine and control system requirements.

With its IP65 protection rating, the encoder is sealed against dust ingress and protected against low-pressure water jets from any direction. This makes it suitable for many industrial environments, including those requiring occasional wash-down. However, it is not designed for prolonged submersion or high-pressure, high-temperature cleaning (IP69K).
