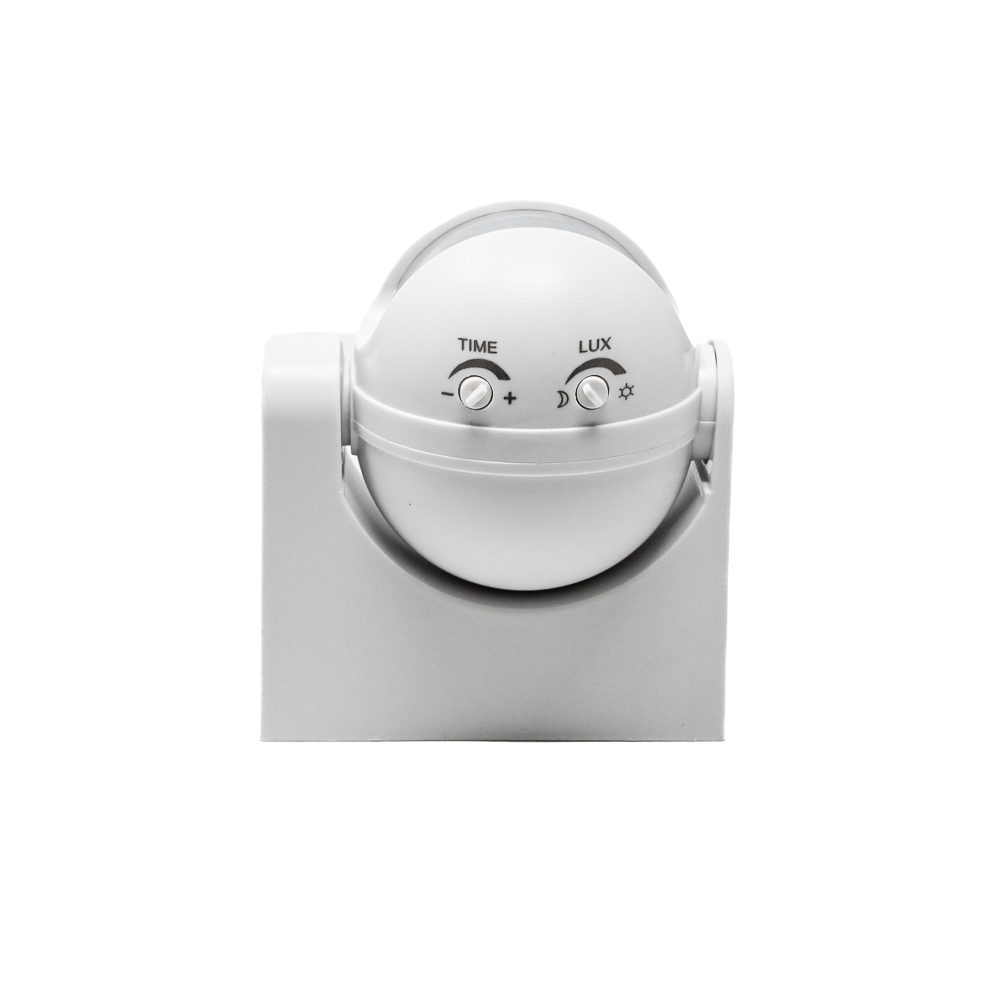

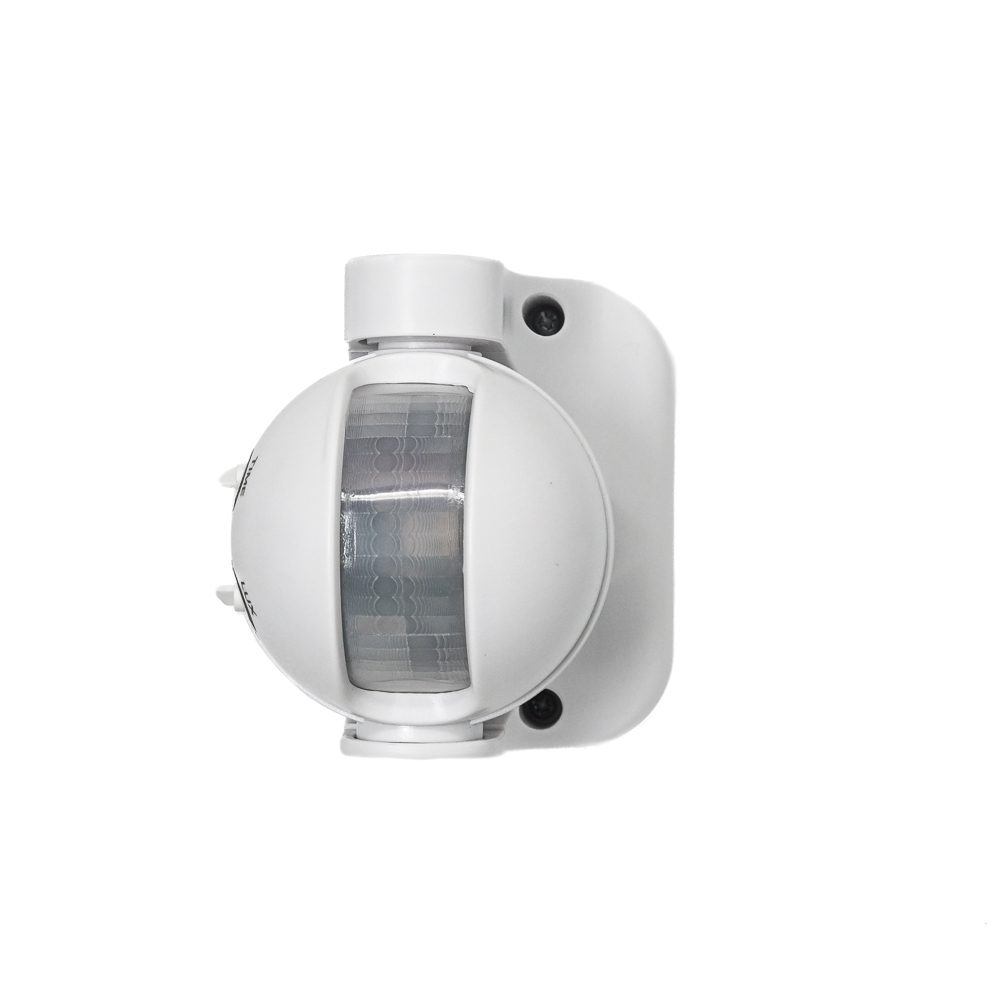

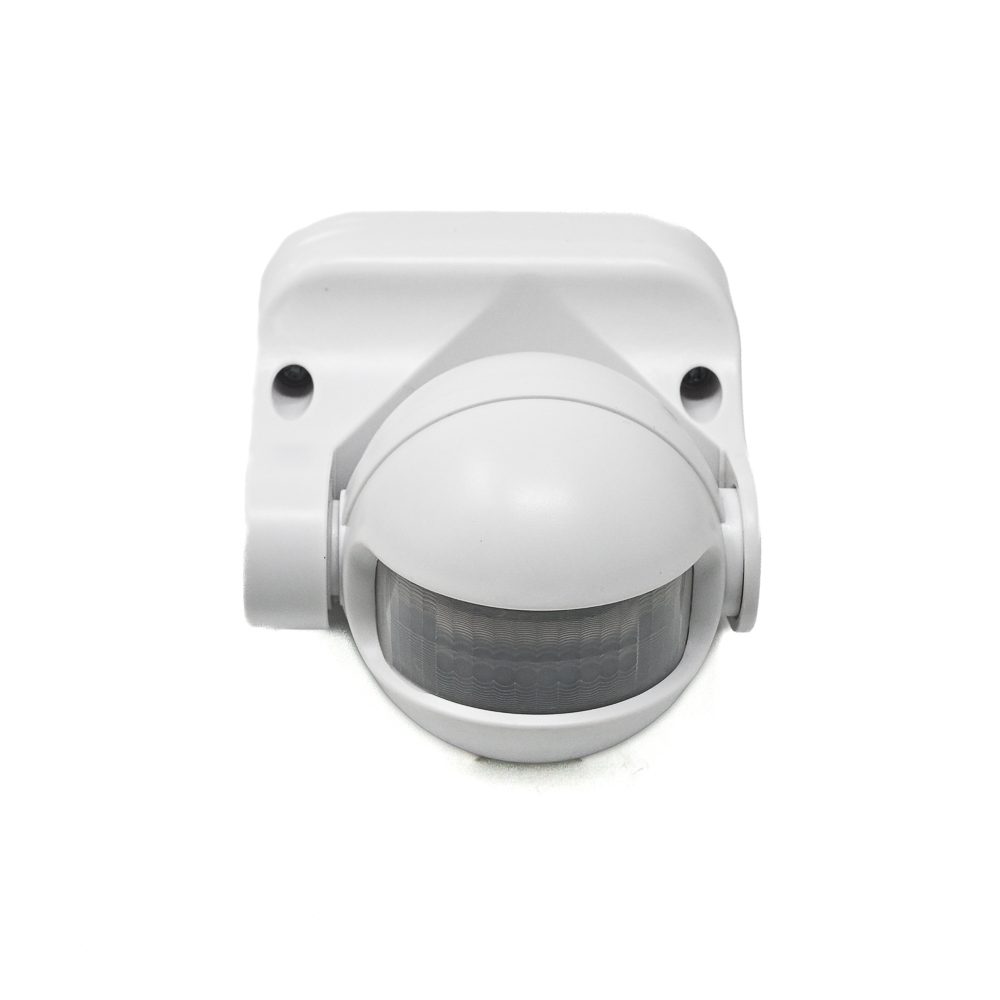

PB03W Human Infrared Sensor AC100-240V - 180° PIR Motion Detector
The PB03W is a passive infrared (PIR) motion sensor module designed for AC line-voltage (100-240V) automation systems. It features a 180° detection angle, adjustable sensitivity and time delay, and an auto day/night mode for efficient control of lighting, alarms, and other AC-powered devices.
Features
- Wide AC Input Range: Operates directly on 100-240V AC, 50/60Hz for global compatibility.
- 180° Detection Angle: Broad passive infrared (PIR) coverage for comprehensive motion sensing.
- Adjustable Time Delay: User-configurable activation period from 8 seconds up to 7 minutes.
- Auto Day/Night Mode (SUN/MOON): Automatically adjusts sensitivity based on ambient light levels.
- Low Power Consumption: Consumes only 0.45W during active detection for energy efficiency.
Out of stock
The PB03W Human Infrared Sensor utilizes passive infrared (PIR) technology to detect the movement of humans and other warm-bodied objects within its 180° field of view. It is designed for direct integration into AC power lines, eliminating the need for a separate DC power supply or relay module for low-voltage control systems.
Engineered for reliability, the sensor features adjustable sensitivity and a configurable time delay to tailor its operation to specific environmental conditions and application requirements. Its integrated light sensor enables automatic switching between day and night modes, optimizing energy savings by preventing unnecessary activation during daylight hours. The robust construction ensures stable performance across an operating temperature range of -10°C to +40°C.
Additional Information
| Weight | 0.112 kg |
|---|---|
| Dimensions | 9.2 × 8.5 cm |
