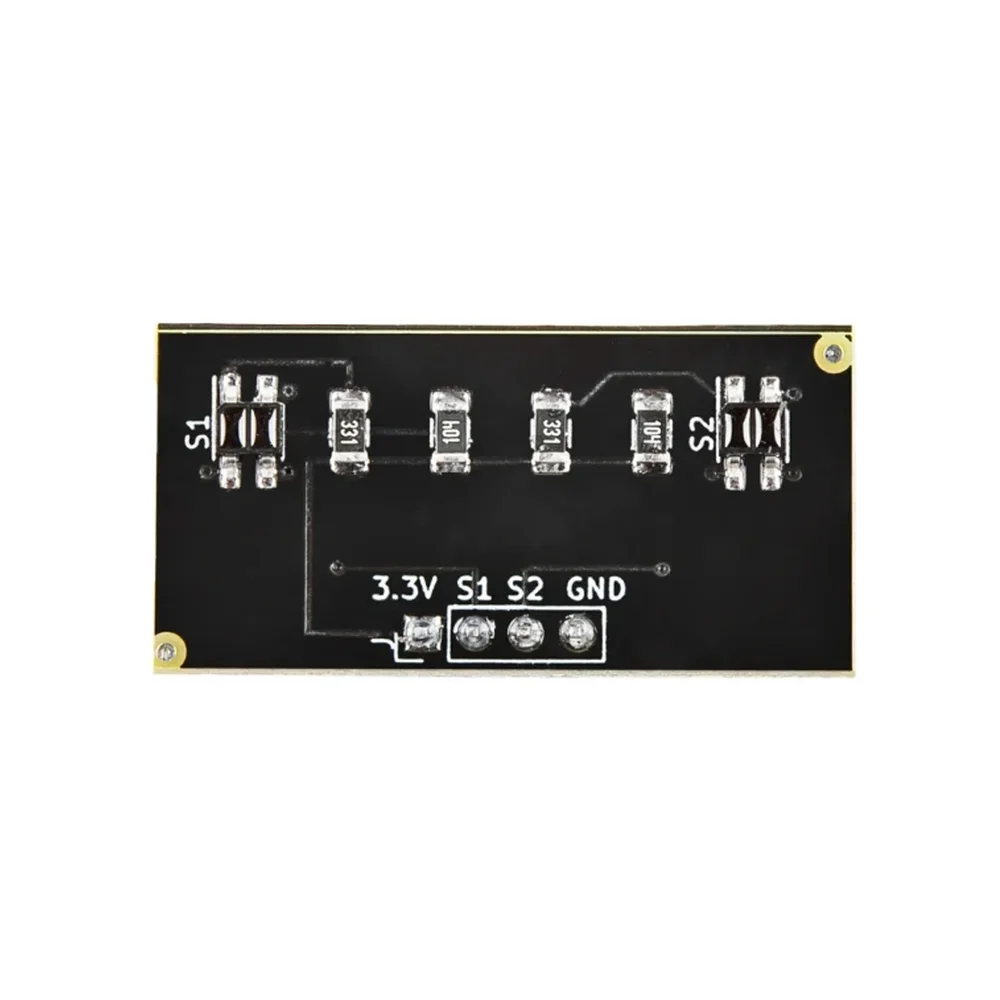

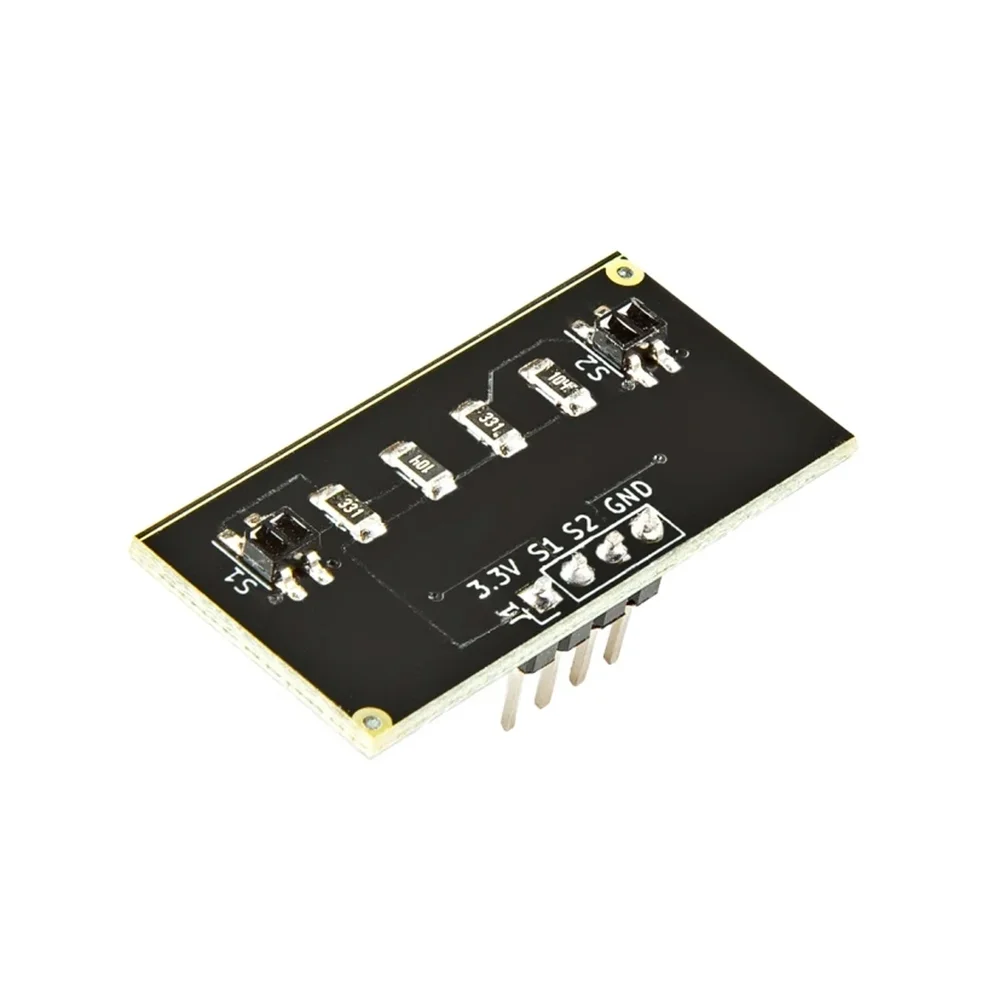

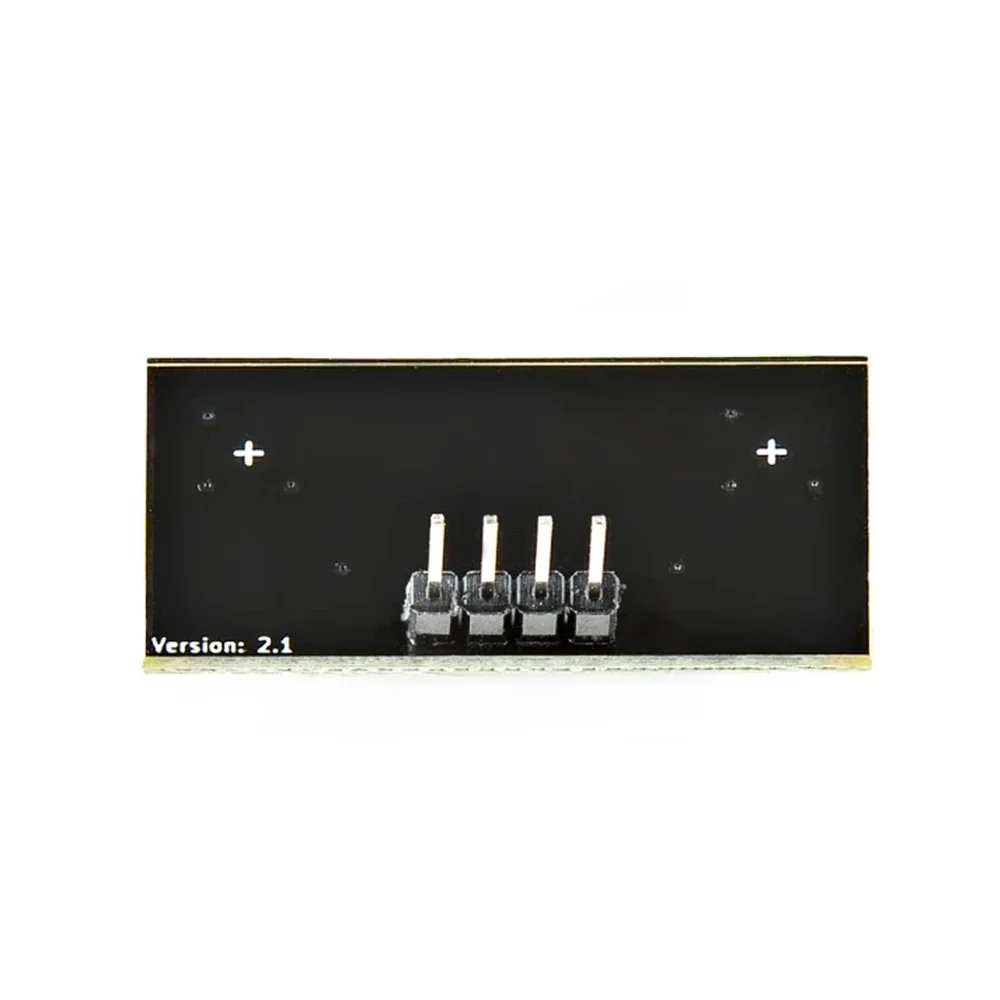

Studica Robotics Cobra Line Follower Sensor V3 - 3.3V DC Infrared Line Detection Module
The Studica Robotics Cobra Line Follower Sensor V3 is a compact infrared detection module designed for robotics navigation and proximity sensing. Operating at 3.3V DC, it provides reliable contrast detection for line-following robots and is easily integrated with Arduino, Raspberry Pi, and other microcontrollers common in STEM and DIY projects.
Features
- Infrared-based line detection with 5–10 mm sensing distance.
- Optimized for 3.3V DC operation, compatible with 3.3V logic microcontrollers.
- Compact PCB design measuring 35 x 16 x 5 mm for easy mounting on robots.
- Wide operating temperature range from -40°C to +85°C for robust performance.
- Dual-function capability for detecting both surface contrast and close-range objects.
Out of stock
The Cobra Line Follower Sensor V3 utilizes an infrared LED and phototransistor pair to perform reflectance sensing. The emitted IR light reflects off a surface, and the amount of reflected light received is measured, allowing the sensor to distinguish between high-reflectance (light) and low-reflectance (dark) areas. This differential measurement provides accurate line tracking for autonomous robot navigation.
Designed for stability in educational and competitive robotics environments, the sensor features a consistent 3.3V power requirement and outputs a simple digital or analog signal proportional to the reflected intensity. Its wide operating temperature ensures reliable function in various indoor and controlled outdoor settings, making it a core component for line-following, edge detection, and basic proximity sensing applications.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.5 × 1.6 × 0.5 cm |
