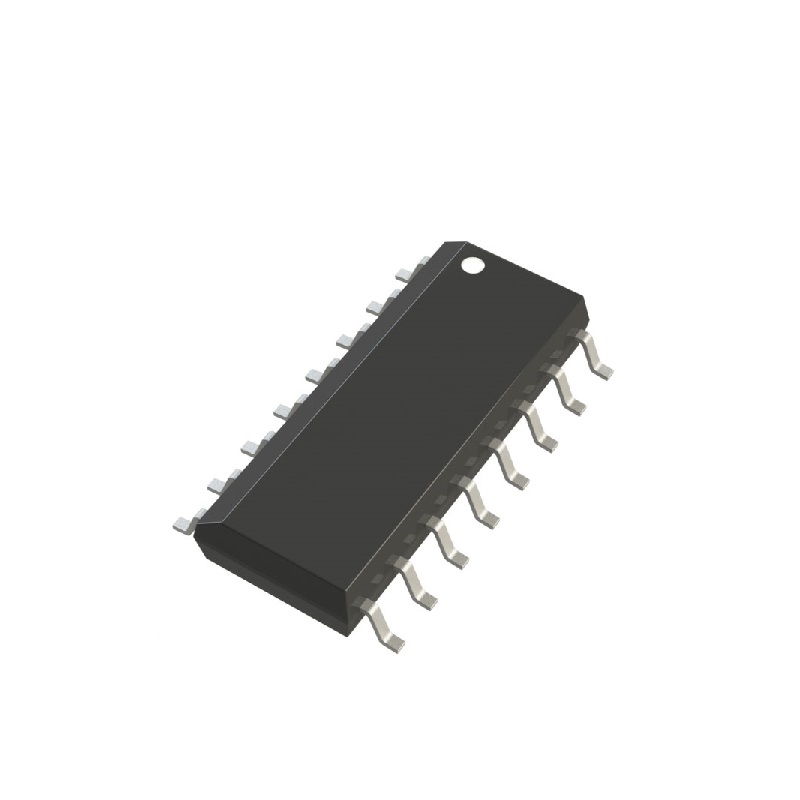

GR BISS0001 Infrared Pyroelectric Human Body Sensing Sensor Controller SOP-16
The GR BISS0001 is a SOP-16 packaged infrared pyroelectric sensor controller IC designed for human body presence detection. It operates on a 3-5V DC supply, making it compatible with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller systems for security, automation, and lighting control applications.
Features
- Infrared Pyroelectric (PIR) Motion Detection Controller IC
- Wide Operating Voltage Range: 3V to 5V DC
- SOP-16 Surface-Mount Package for Compact PCB Design
- Operating Temperature Range: -20°C to +70°C
- Ideal for Security Systems, Automatic Lighting, and Energy-Saving Devices
Out of stock
The BISS0001 is a dedicated signal processing IC for passive infrared (PIR) motion sensors. It amplifies and processes the weak analog signal from a pyroelectric sensor element, implementing necessary filtering to distinguish valid human motion from environmental noise. The chip outputs a clean, digital signal suitable for direct interfacing with a microcontroller’s GPIO.
Designed for reliability in consumer and industrial environments, its SOP-16 package offers a compact footprint for integration into space-constrained designs like smart home modules, security devices, and automated control systems. The wide supply voltage range ensures compatibility with both 3.3V and 5V logic families.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 0.8 × 0.3 cm |
