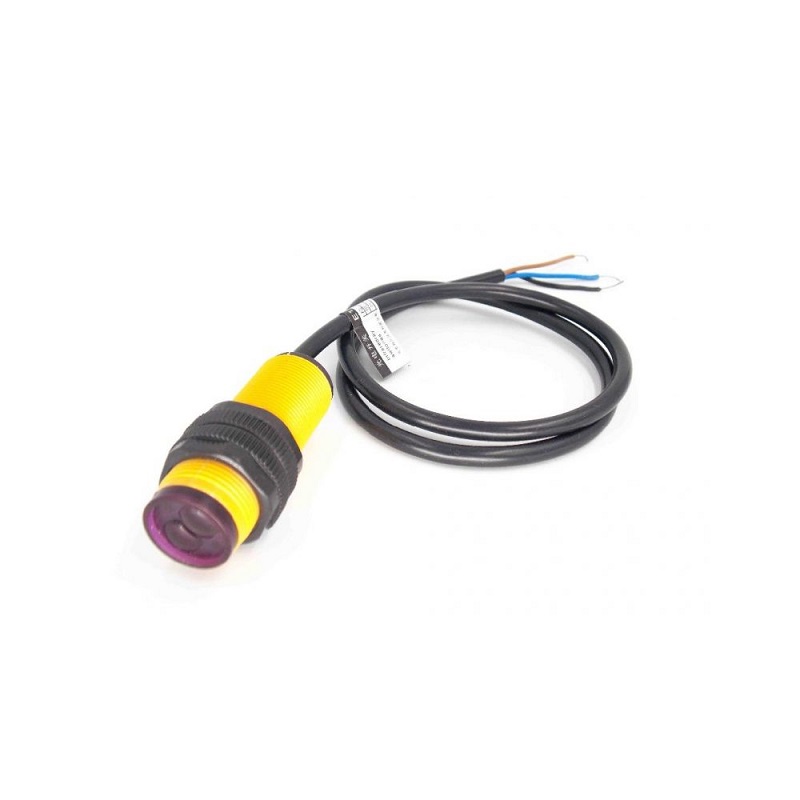

Generic E18-D80NK Mini Adjustable Infrared Sensor Switch 3-80cm - Diffuse Reflective, Digital Output, 70cm Wire
The E18-D80NK is a compact, diffuse-reflective infrared photoelectric sensor switch with an adjustable detection range of 3 to 80 cm, providing a digital output signal compatible with 5V logic systems like Arduino, Raspberry Pi, and industrial PLCs for obstacle detection and object presence sensing.
Features
- Adjustable infrared sensing range from 3 cm to 80 cm for versatile application setup.
- Digital output (high/low) signal for direct interface with microcontrollers, PLCs, and logic circuits.
- Low power consumption with a 5V DC supply voltage and 100mA operating current.
- Compact cylindrical design (17.68mm diameter) with a 70cm integrated cable for flexible installation.
- Diffuse reflective sensing principle for reliable detection of non-reflective objects and obstacles.
Out of stock
The E18-D80NK sensor integrates an infrared transmitter and receiver into a single, compact housing utilizing a diffuse reflective sensing principle. It emits an infrared beam and detects the light scattered back from an object within its adjustable range, providing a stable digital switching signal for reliable object presence detection.
Designed for easy integration, the sensor outputs a high signal when no obstacle is present and switches to a low logic level upon detection. Its 5V DC operation and standard three-wire configuration (power, ground, signal) make it compatible with a wide range of development platforms and industrial control systems requiring robust, non-contact sensing.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 5 × 1.768 cm |
