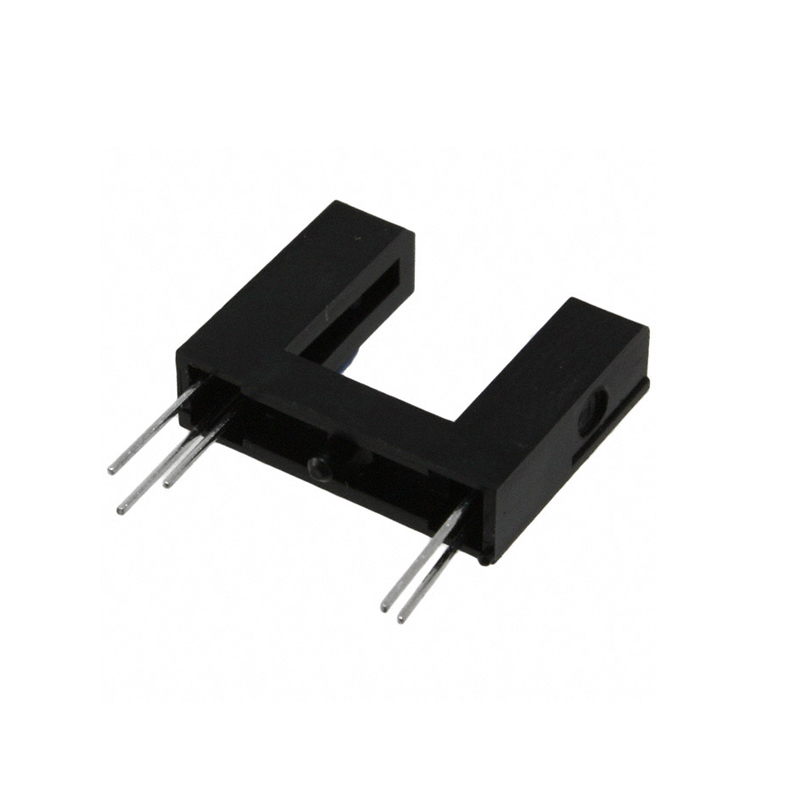

Sharp Microelectronics GP1A57HRJ00F Optical Sensor Transmissive Photointerrupter - 10 mm Gap, 1.8 mm Slit, OPIC Output, Through-Hole PCB Mount
The Sharp Microelectronics GP1A57HRJ00F is a transmissive photointerrupter module featuring an integrated OPIC output for reliable non-contact object detection. Its 10 mm wide gap and 1.8 mm vertical slit are optimized for motion sensing and precise edge detection in automated systems, designed for through-hole PCB mounting.
Features
- Transmissive optical sensor with integrated OPIC (Optical IC) output for clean signal conditioning.
- Wide 10 mm detection gap accommodates various object sizes and shapes.
- Vertical 1.8 mm slit enables precise edge detection and alternate motion sensing.
- Features a built-in positioning pin for accurate PCB alignment and assembly.
- Outputs a low logic level when the optical path is interrupted for reliable object detection.
Out of stock
The GP1A57HRJ00F is a self-contained transmissive photointerrupter module from Sharp Microelectronics, housing an opposing infrared emitter and phototransistor detector within a single molded case. The integrated OPIC (Optical IC) provides a conditioned digital output signal, simplifying interface with microcontrollers, PLCs, and logic circuits. Its design ensures stable operation across an industrial temperature range from -30°C to 75°C.
Engineered for durability and precision, the module’s 10 mm wide gap offers flexibility in sensing applications, while the 1.8 mm vertical slit provides the resolution needed for detecting fine edges or specific patterns. The through-hole package and integrated alignment pin guarantee secure and accurate mounting on printed circuit boards, making it ideal for high-volume automated assembly.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 1.86 × 1.52 × 0.5 cm |
